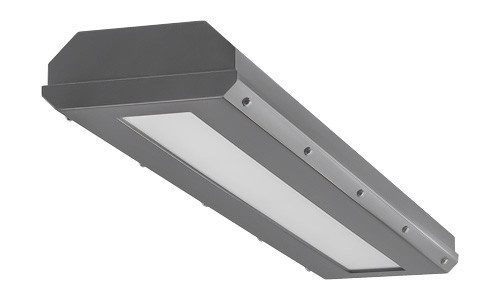

DURGA G2

The DURGA G2 vandal-resistant LED luminaire is designed for locations where reliable lighting is essential. Areas exposed to a high risk of damage, vandalism or extreme conditions require robust lighting solutions without compromise.

Request a product
DURGA G2

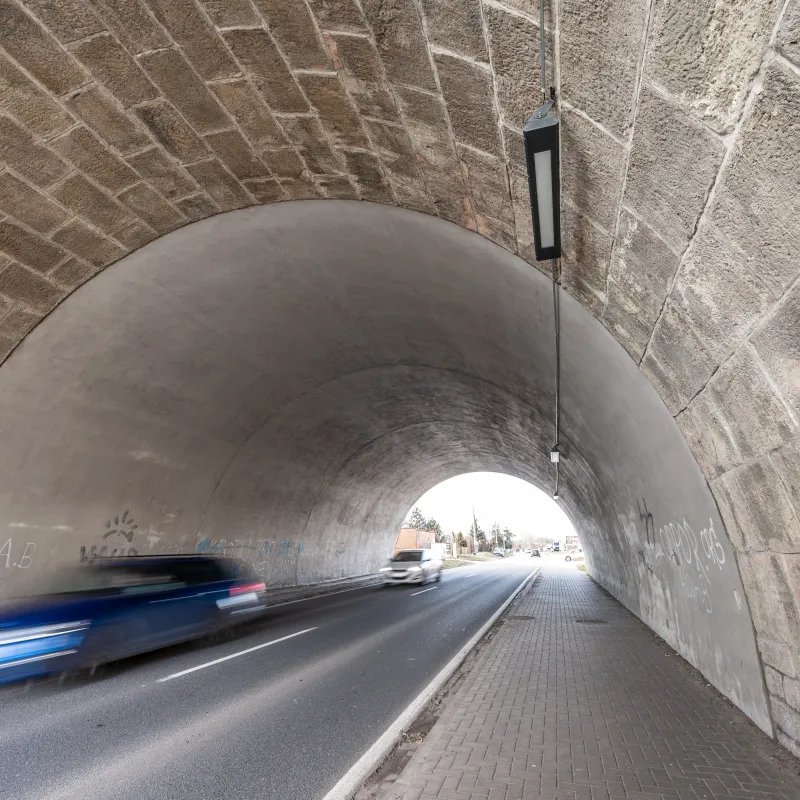

RAL 7016 day RAL 7016 night

DURGA G2

Certificates and Parameters

AstroDIM AstroDIM
Ingress Protection (IP65) Ingress Protection (IP65)
Impact Protection (IK10) Impact Protection (IK10)
BIM Models BIM Models

Colors

Durability. Safety.
Reliable lighting.

The DURGA G2 luminaire has been developed with a focus on maximum mechanical resistance and safe operation. It is designed for demanding environments where conventional luminaires may fail, including underpasses, multi-storey car parks, public toilets, sports facilities, industrial buildings, schools, hospitals and technical areas. If you require reliable lighting for a demanding environment, we will be happy to develop a solution tailored to your needs.

Request a product

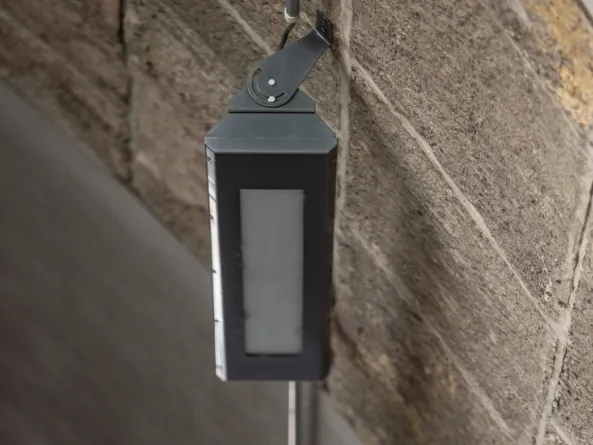

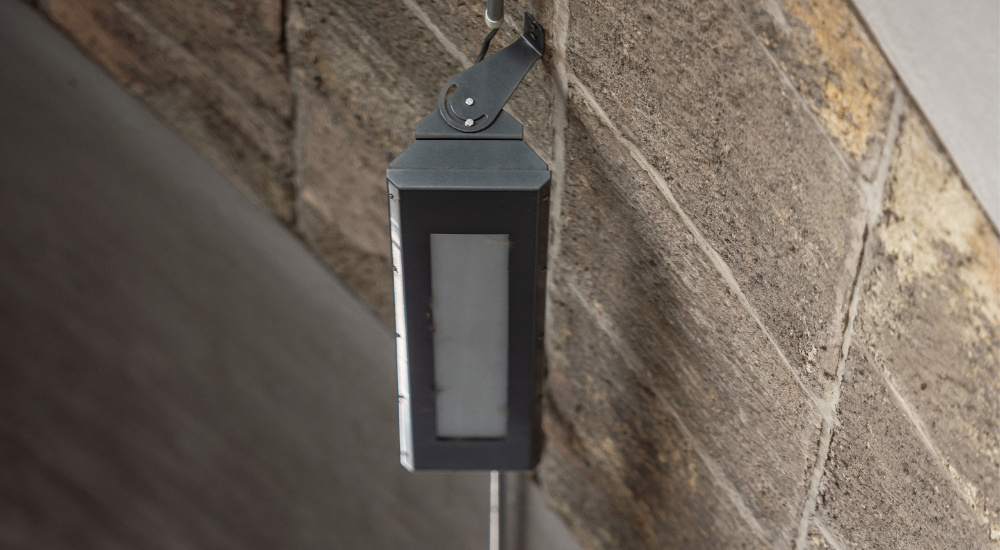

Bez názvu (1000 x 550 px) (18)

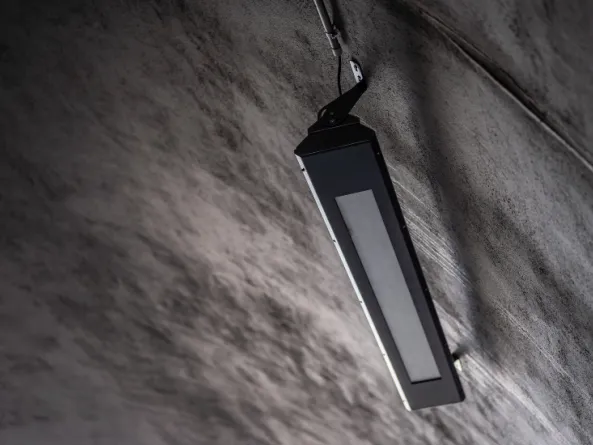

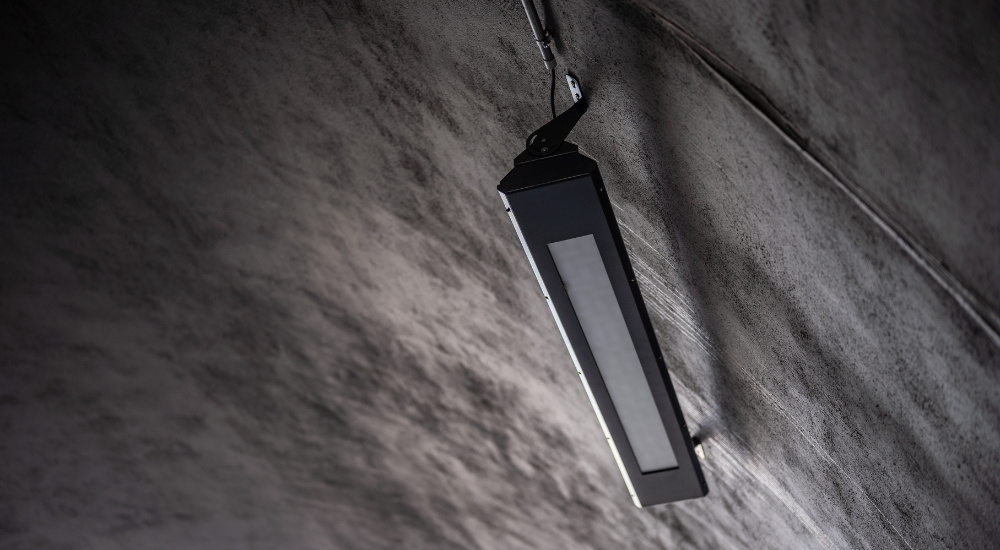

Bez názvu (1000 x 550 px) (16)

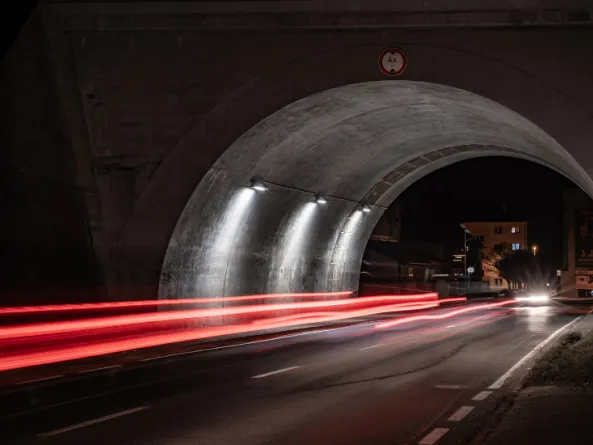

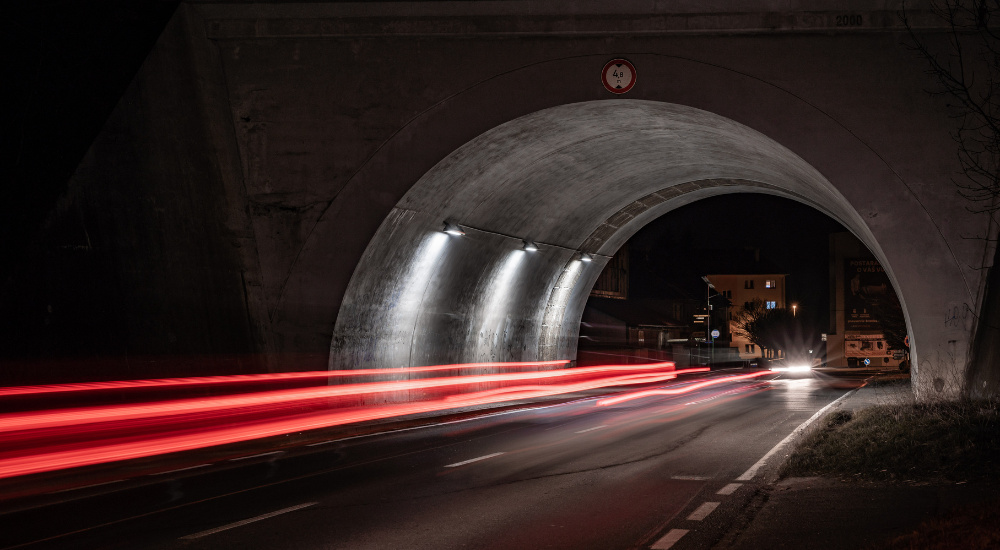

Bez názvu (1000 x 550 px) (17)

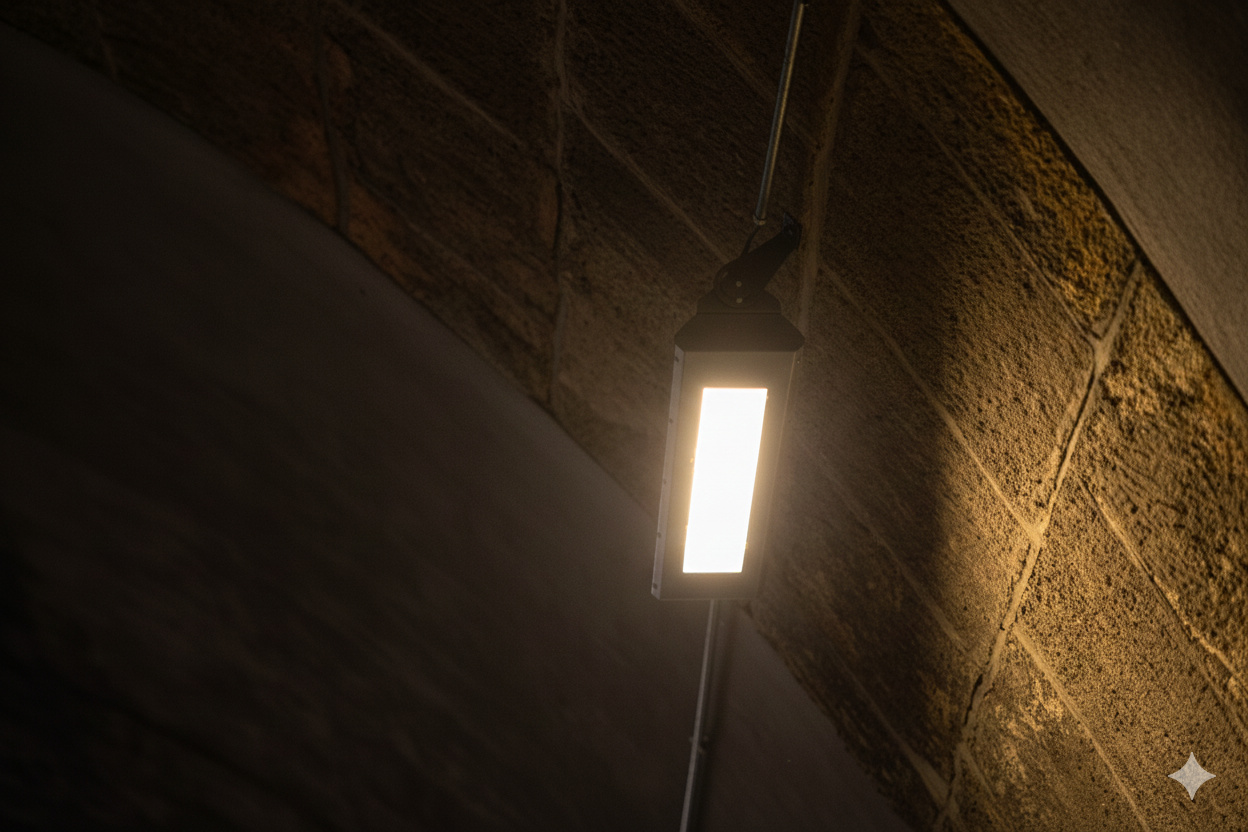

Gemini_Generated_Image_ju7kguju7kguju7k

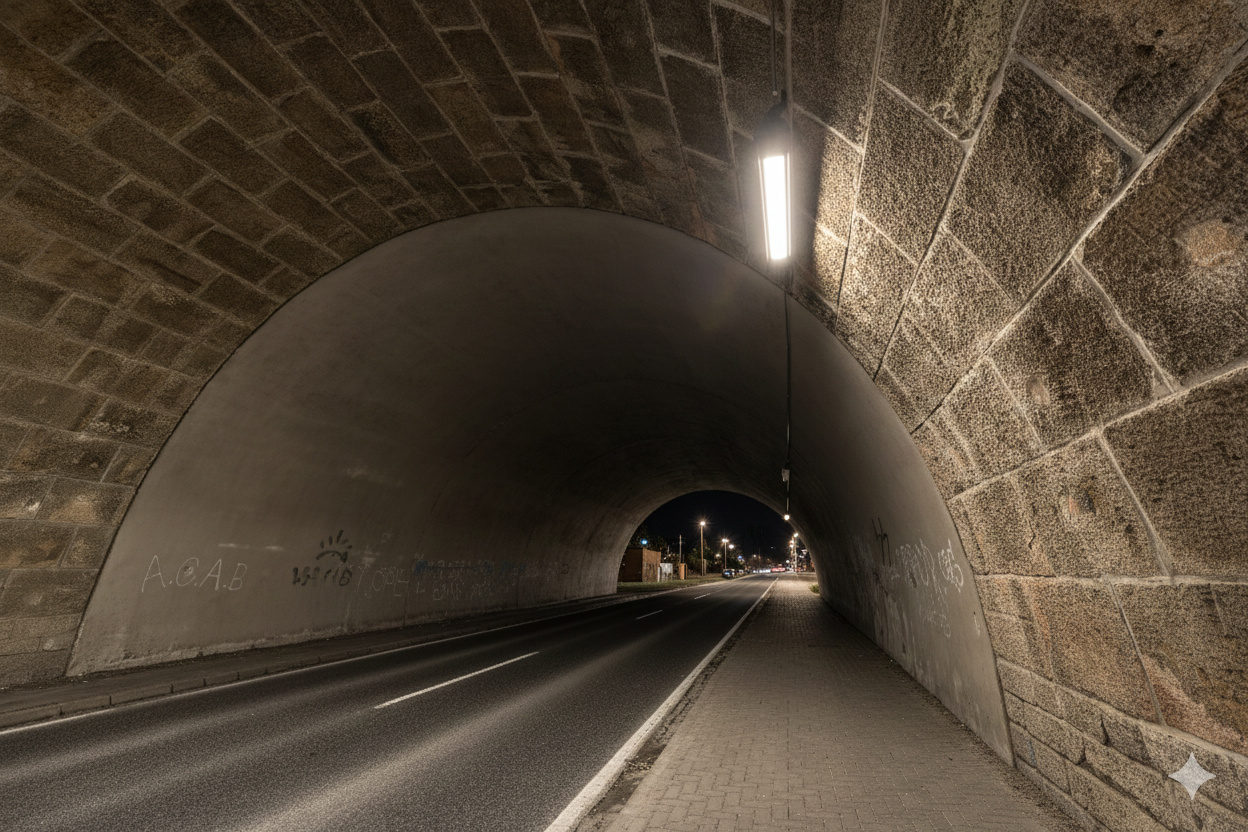

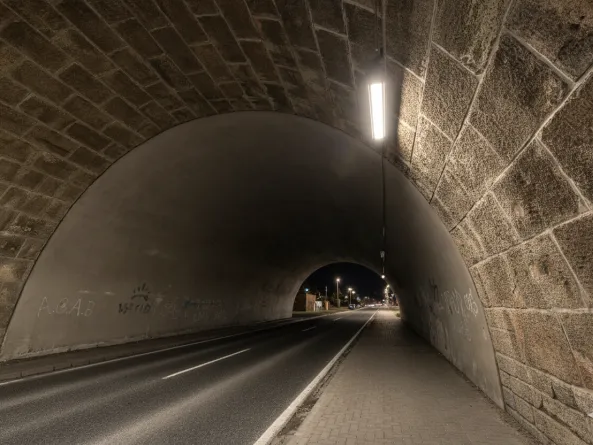

Gemini_Generated_Image_knki5sknki5sknki
Bez názvu (1000 x 550 px) (18) Bez názvu (1000 x 550 px) (16) Bez názvu (1000 x 550 px) (17) Gemini_Generated_Image_ju7kguju7kguju7k Gemini_Generated_Image_knki5sknki5sknki

Specifications

Electrical parameters

Light source LED
Supply voltage AC 220–240 V / 50–60 Hz
Connection Pre-wired cable
Control gear Electronic driver with surge protection (L/N–PE 10 kV)
Control options Non-dimmable (no marking), DALI (4), night dimming (A)
Emergency module NO

Light parameters

Optical system Diffuser
Light distribution Direct
Colour rendering index CRI > 70, CRI > 80
Colour temperature 2,700 K / 3,000 K / 4,000 K
Lifetime > 100,000 h (L90B10)

Construction

Luminaire housing Powder-coated steel sheet
Colour RAL 7016; other RAL (on request), exterior surface finish (V)
Surface finish Gloss
Luminaire cover Safety glass, opal (DPO)

Safety

Protection class I, II
Ambient temperature range −30/+40 °C
Ingress protection IP65
Impact protection IK10

Mounting

Mounting method Surface-mounted, corner-mounted
Mounting height From 2 to 6 m
Applications Garages, arcades, underpasses, passageways, prisons

Accessories

Mounting accessories Surface/corner-mounting bracket (on request)
Notes The luminaire is equipped with security screws for protection against theft



Variants

Variants

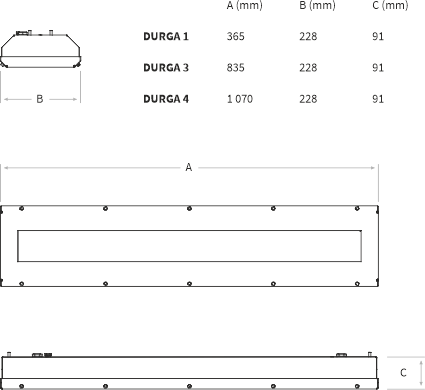

Dimensions

Dimensions

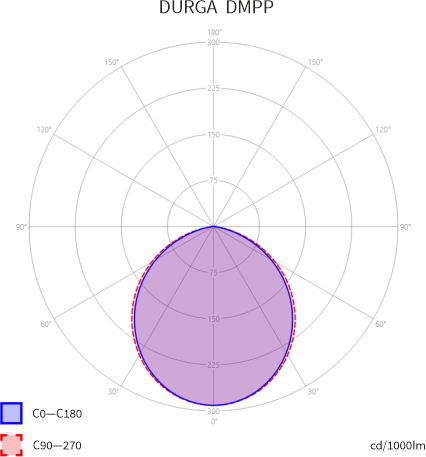

Photometry

Photometry

Energy label

Energy label

Downloads

pdf Datasheet pdf Installation manual zip Eulumdata pdf EU DoC rfa BIM pdf AstroDIM
