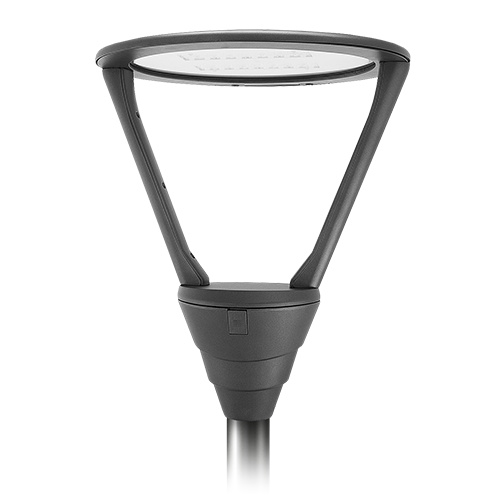

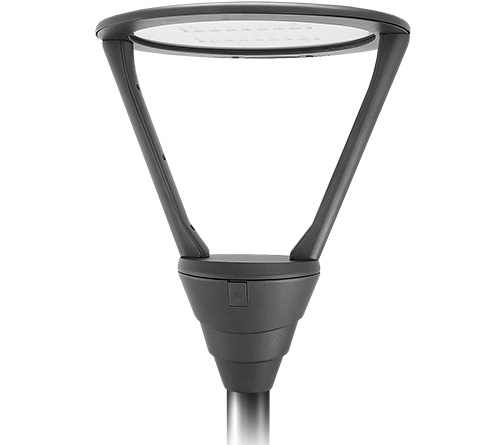

IRIS

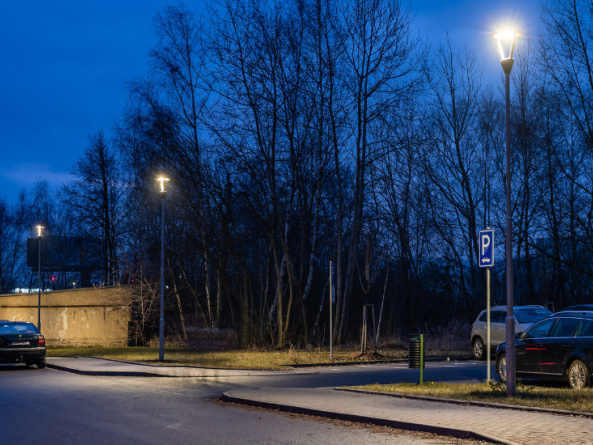

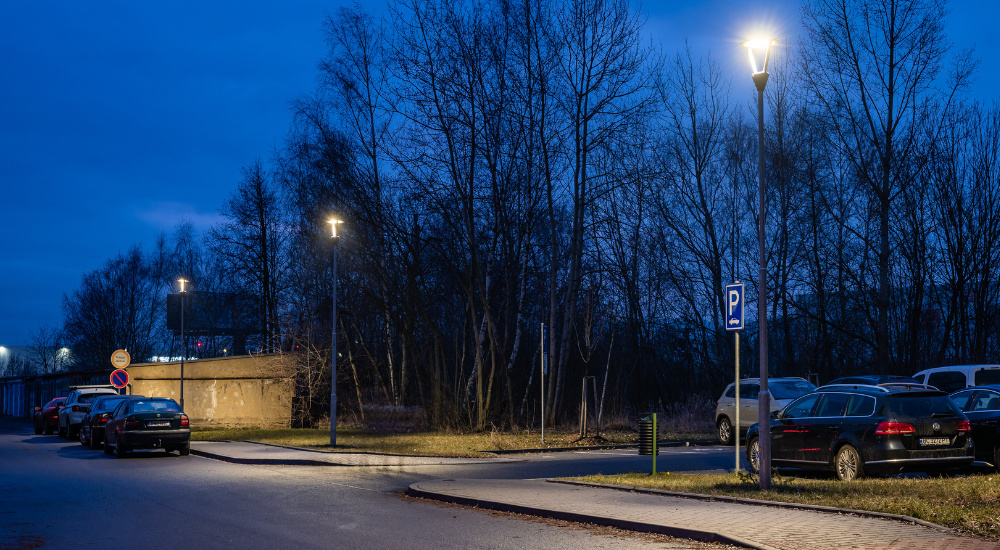

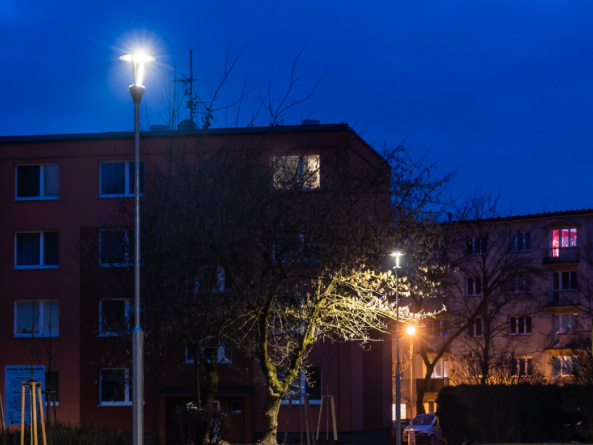

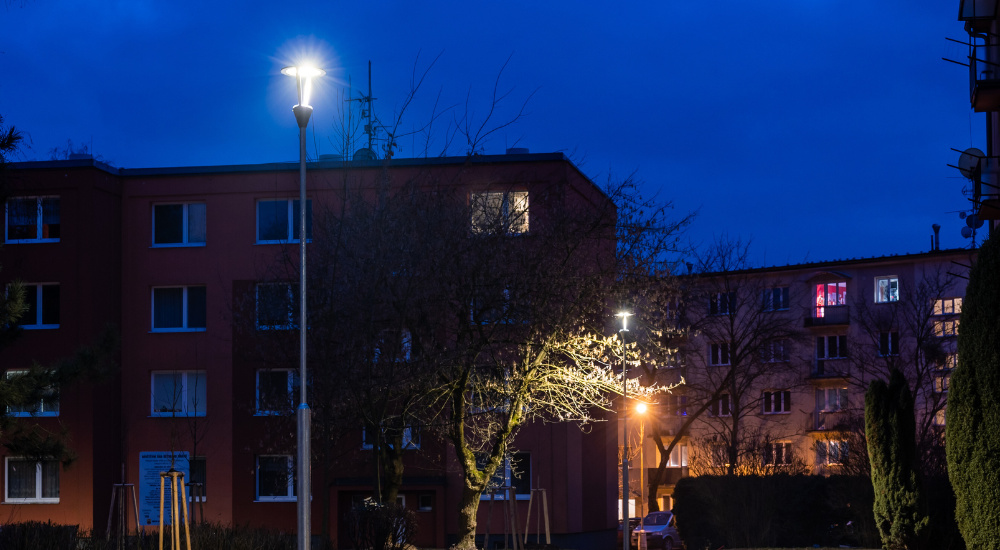

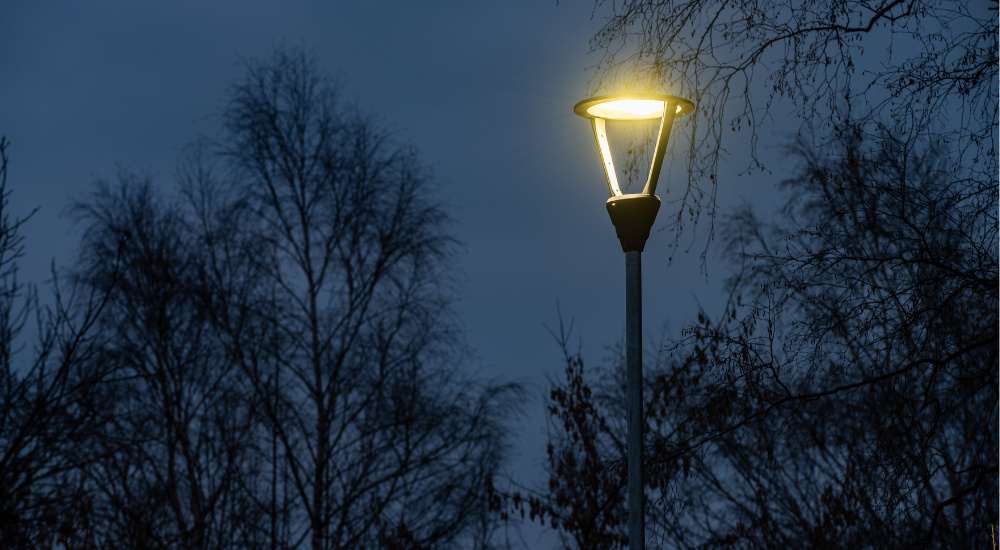

Ideal choice for urban parks and public spaces that require modern design and quality lighting.

BIM objects BIM objects
DALI regulation DALI regulation
Degree of protection (IP66) Degree of protection (IP66)

Specifications

Electrical parameters

Light source LED
Power voltage AC 220–240 V / 50–60 Hz
Connection method leading out cable, leading out cable with connector (G)
Ballast part electronic driver with surge protection L/N-Ground 10 kV
Surge protection additional surge protection 10 kV (S)
Possibility of regulation non-dimmable (not labeled), DALI (DALI), night dimming (AD)
Constant lumen output CLO (C)

Light parameters

Optical system roads (Mxx), roads (Lxx), directional (Pxx), area (Uxx), combined optics (Kxx) , AMBER module (Nxx), AMBER optics (ALxx), BACK Light mask (BM2)
Light distribution direct
Colour rendering index Ra > 70, Ra > 80
Colour temperature AMBER / 2,200 K / 2,700 K / 3,000 K / 4,000 K / 5,000 K
Service life > 100,000 hrs. (L90B10)

Construction

Luminaire body aluminum cast
Colour RAL 7015
Surface type matte
Luminaire cover tempered glass

Safety

Protection class I, II
Maximum ambient temperature -40 / +55 °C
Protection of the luminaire's electrical part IP 66
Impack protection IK 09

Mounting

Method pole mounted (48–60 mm)
Recommended height max. up to 6 m

Accessories

Use city parks, parking spaces, square, sidewalks, road classe S

Variants

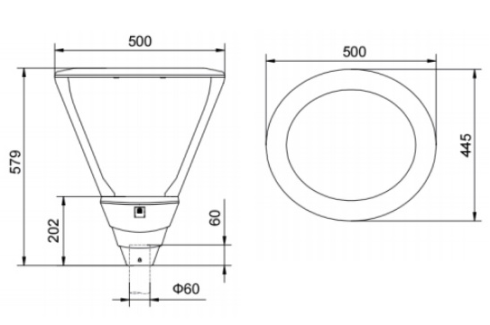

Dimensions

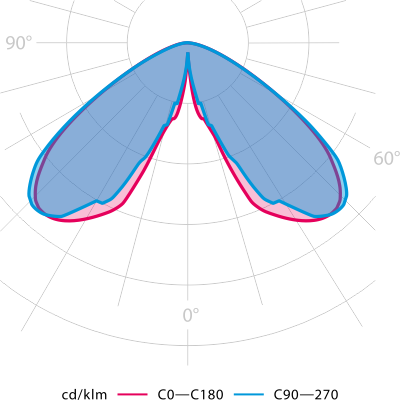

Photometry

Energy label

Energy label

Downloads
