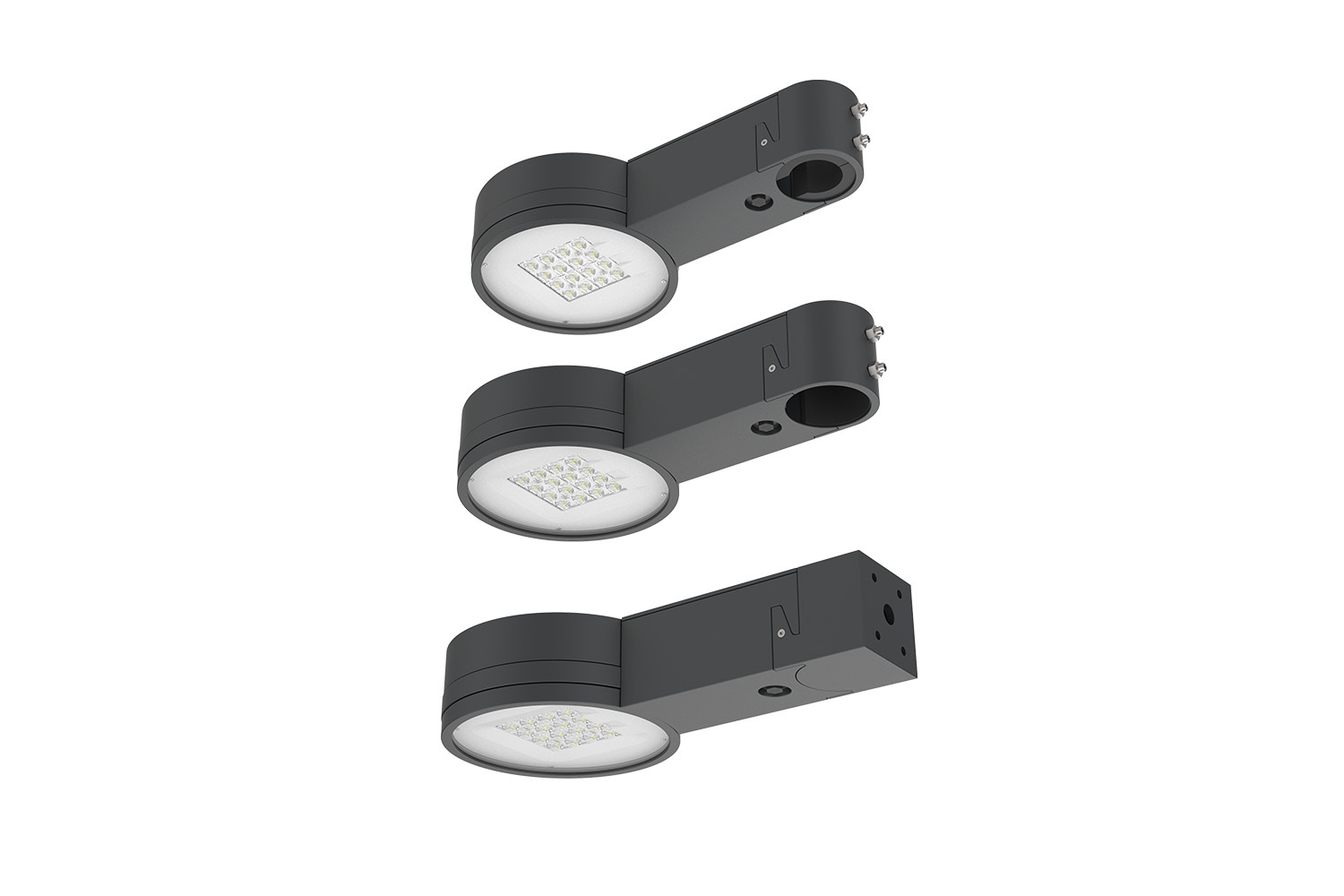

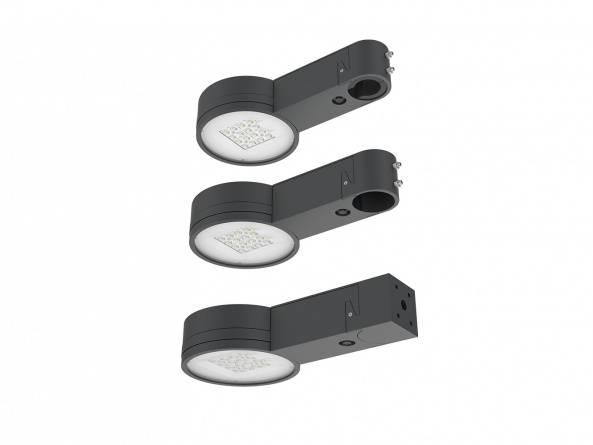

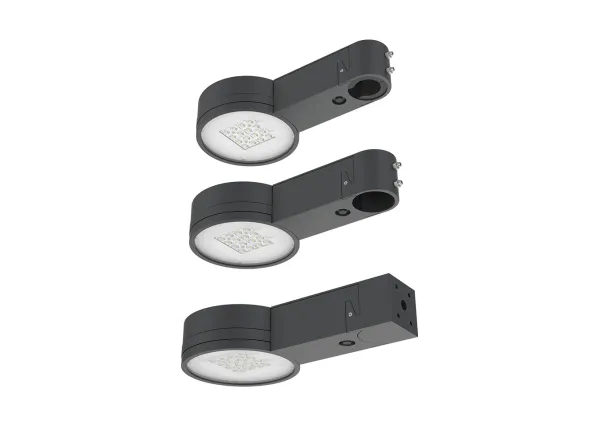

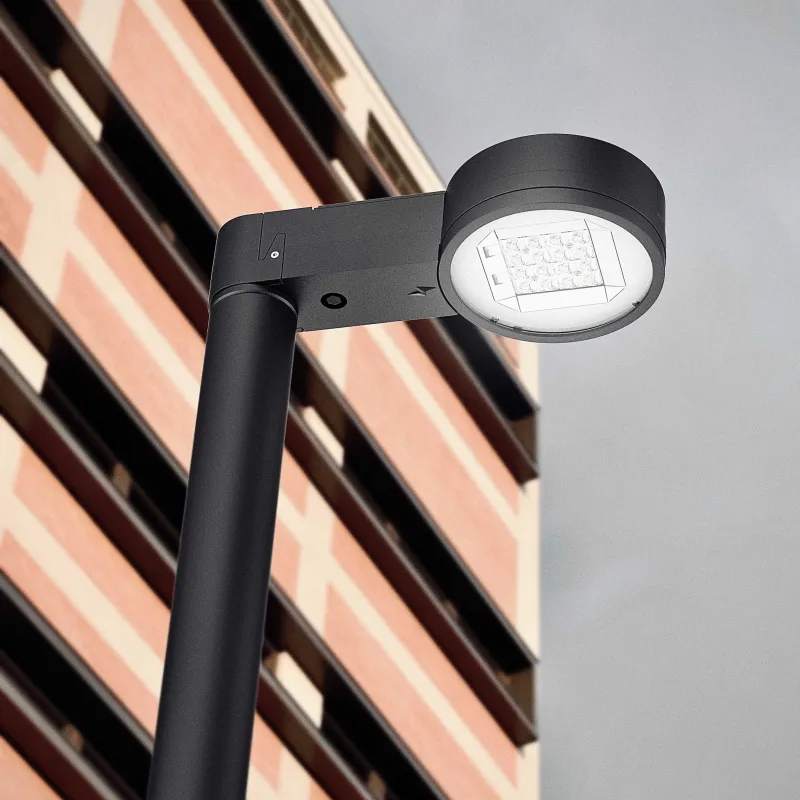

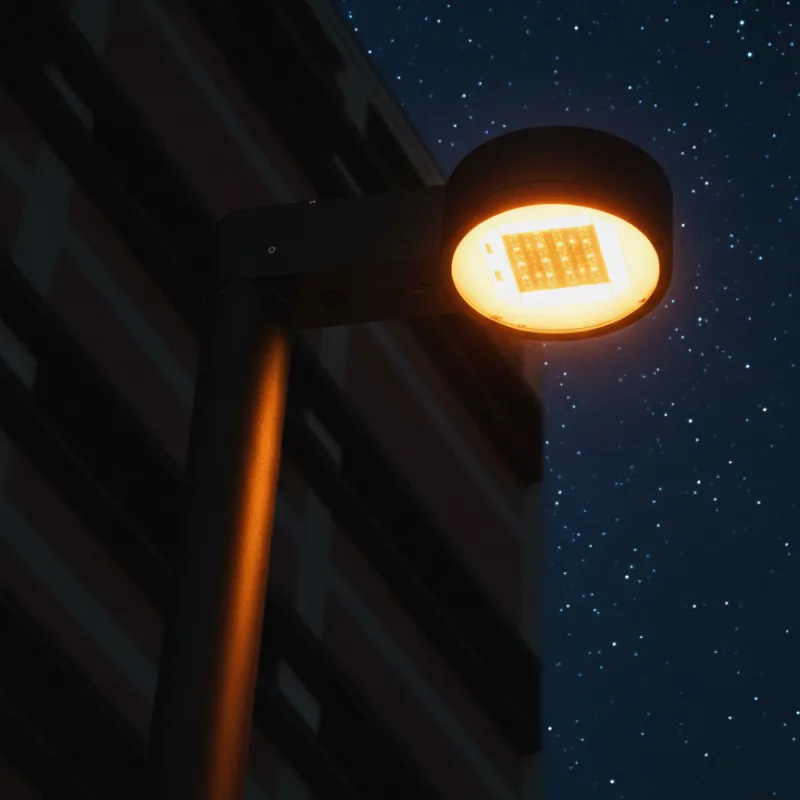

LUPA Family

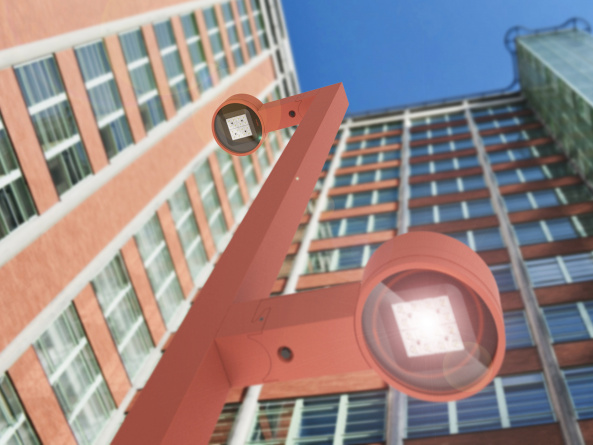

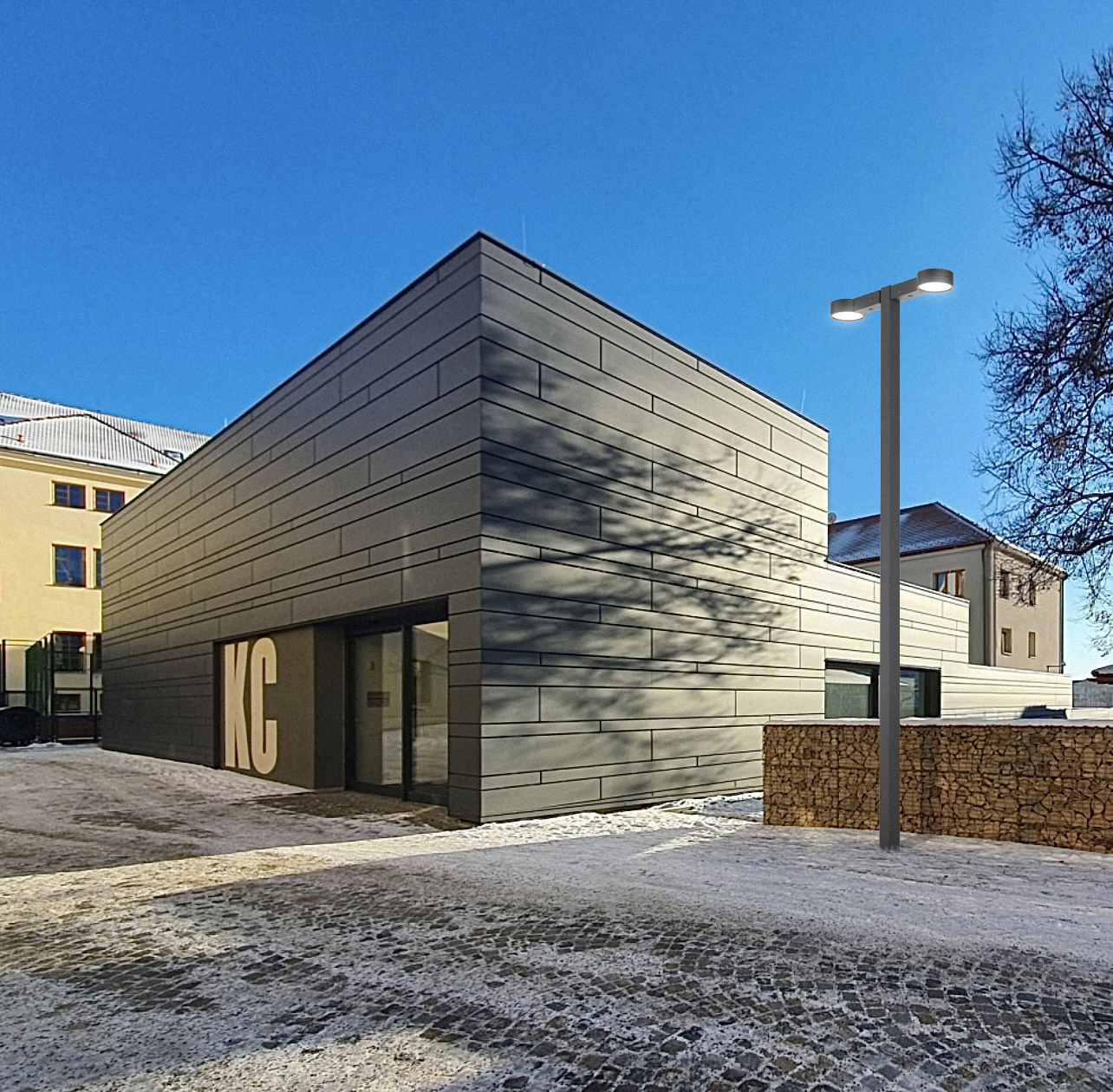

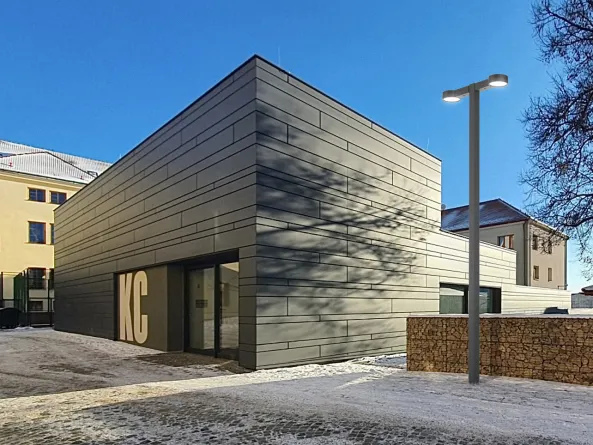

The LUPA luminaire impresses with its modern and attractive design, providing the perfect lighting for urban neighbourhoods and residential areas. Its versatility makes it the ideal luminaire for public spaces and roads.

DALI regulation DALI regulation
Mechanical resistance (IK9) Mechanical resistance (IK9)
Degree of protection (IP66) Degree of protection (IP66)


Electrical parameters

Light source LED
Power voltage AC 220–240 V / 50–60 Hz
Connection method leading out cable, leading out cable with connector (G)
disconnect terminal block (O), without cable (WO)
Ballast part electronic driver with surge protection L/N-Ground 10 kV
Surge protection additional surge protection 10 kV (S)
Fuse fuse 6,3 A (J)
Possibility of regulation non-dimmable (not labeled), DALI (DALI), night dimming (A)
preparation for wireless communication NEMA (N), Zhaga (Z) or 2× Zhaga (Z2)
Sensor motion sensor (on request)
Constant lumen output CLO (C)

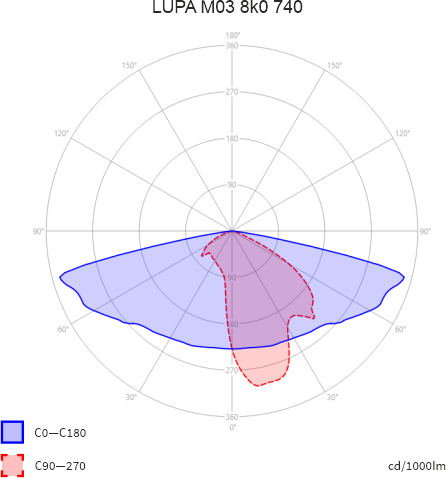

Light parameters

Optical system roads (Mxx), roads (Lxx), directional (Pxx)
area (Uxx), pedastrian crossing (ZLx/ZPx), AMBER module (Nxx), AMBER optics (ALxx), BACK Light mask (BM2), combined optics (Kxx)

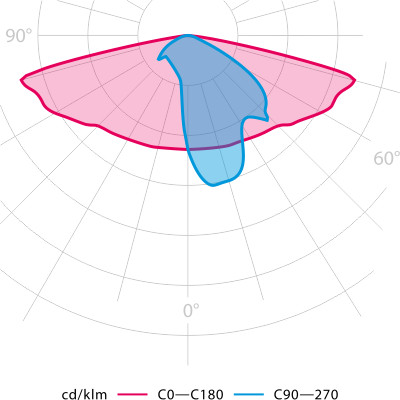

Light distribution direct
Colour rendering index Ra > 70, Ra > 80
Colour temperature AMBER / 2,200 K / 2,700 K / 3,000 K / 4,000 K / 5,000 K
Service life > 100,000 hrs. (L90B10)


Luminaire body aluminum cast
Colour RAL 7015
Surface type matte
Luminaire cover tempered glass


Protection class I, II
Maximum ambient temperature -40 / 55 °C
Ingress protection IP 66
Impact protection IK 09


Method pole (48–89 mm), on the wall
Recommended height max. up to 8 m
Use cycle paths, outdoor areas, pedestrian zones, sidewalks

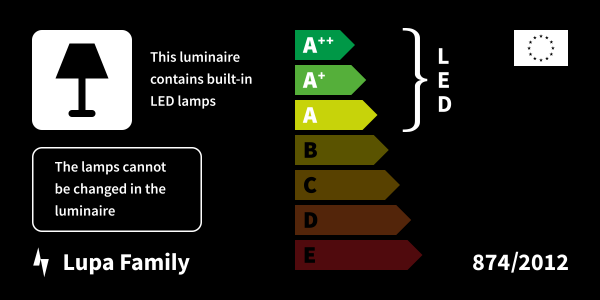

Energy label
