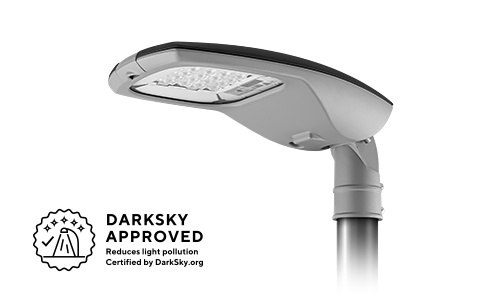

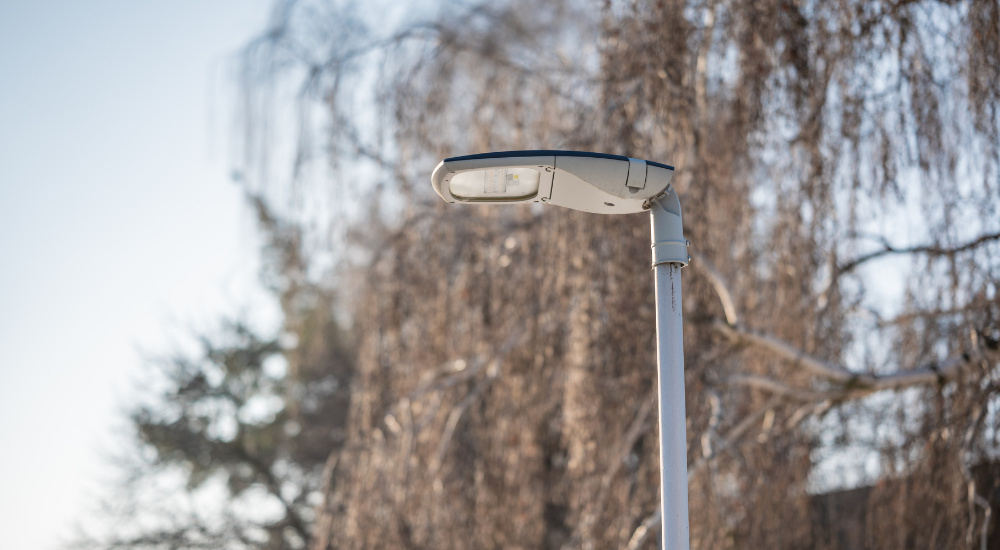

Elegant outdoor LED luminary with an integrated surge protection and adjustable joint with the possibility of integration in “Smart City”.

Certification Certification
BIM objects BIM objects
Mechanical resistance (IK9) Mechanical resistance (IK9)
Degree of protection (IP66) Degree of protection (IP66)
Electromagnetic compatibility Electromagnetic compatibility
Vibration Vibration
Corrosion test – Salty spray Corrosion test – Salty spray


Electrical parameters

Light source LED
Power voltage AC 220–240 V / 50–60 Hz
Connection method leading out cable, leading out cable with connector (G)
disconnect terminal block (O), without cable (WO)
Ballast part electronic driver with surge protection L/N-Ground 10 kV
Surge protection additional surge protection 10 kV (S)
Fuse fuse 6,3 A (J)
Possibility of regulation non-dimmable (not labeled), DALI (DALI), night dimming (A)
preparation for wireless communication NEMA (N), Zhaga (Z) or 2× Zhaga (Z2)
Sensor motion sensor (on request)
Constant lumen output CLO (C)

Light parameters

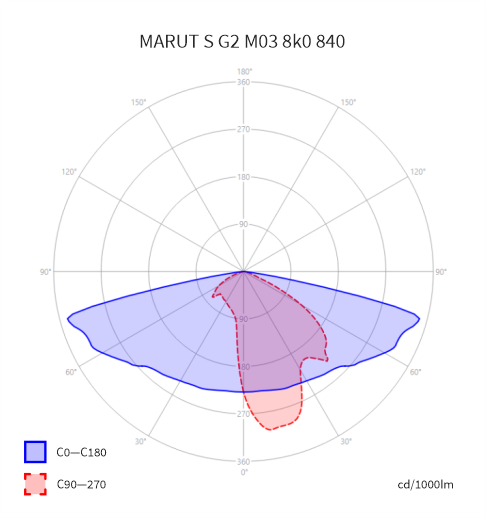

Optical system roads (Mxx), roads (Lxx), directional (Pxx)

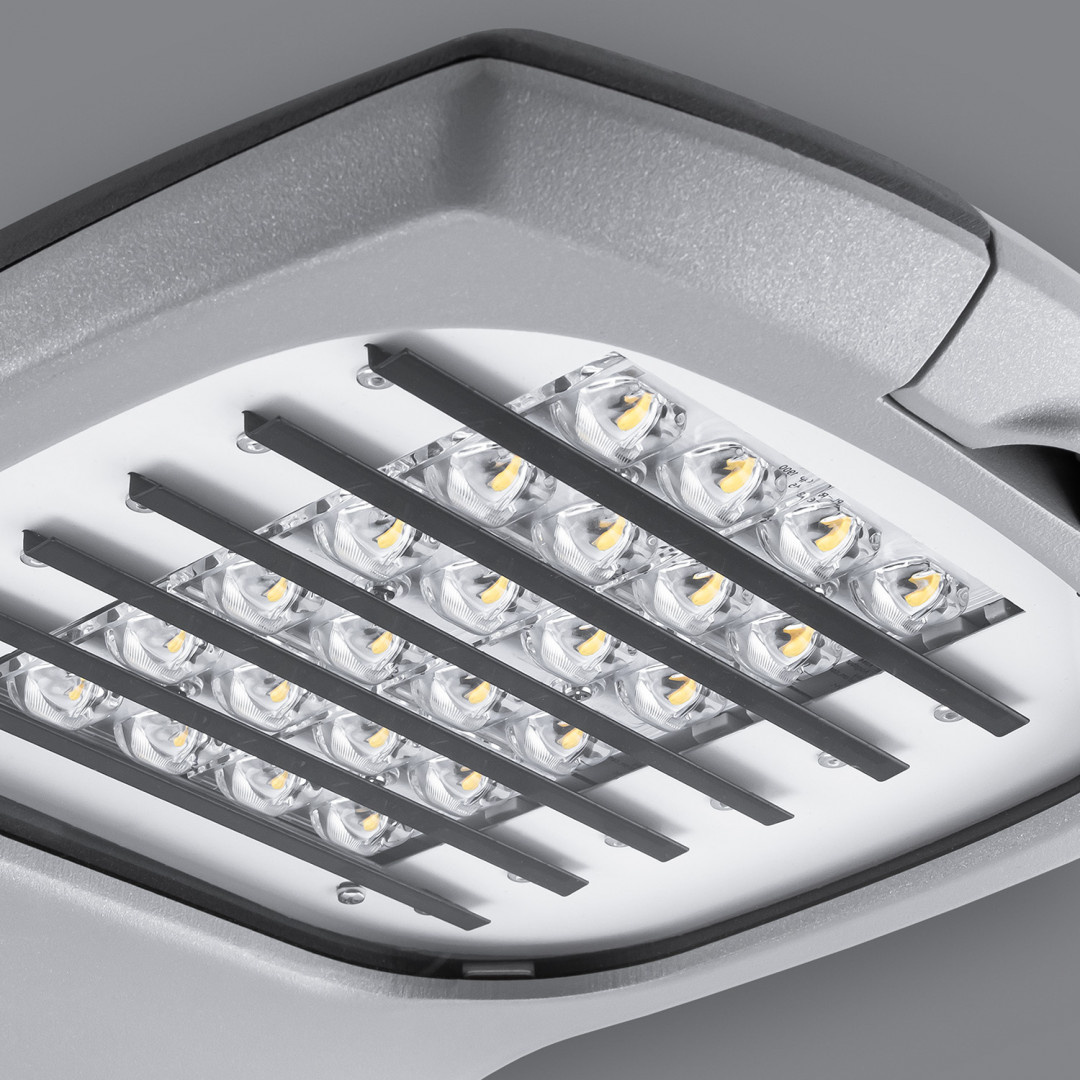

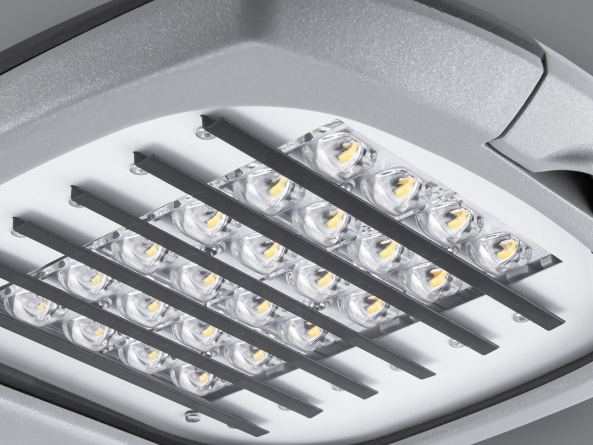

area (Uxx), pedastrian crossing (ZLx/ZPx), AMBER module (Nxx), AMBER optics (ALxx), BACK Light mask (BM2)
combined optics (Kxx)

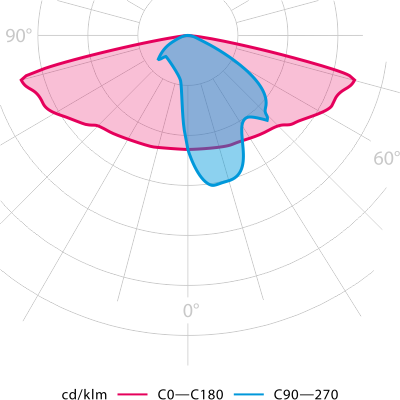

Light distribution direct
Colour rendering index Ra > 70, Ra > 80
Colour temperature AMBER / 2,200 K / 2,700 K / 3,000 K / 4,000 K / 5,000 K / TW
Service life > 100,000 hrs. (L90B10)


Luminaire body aluminum cast

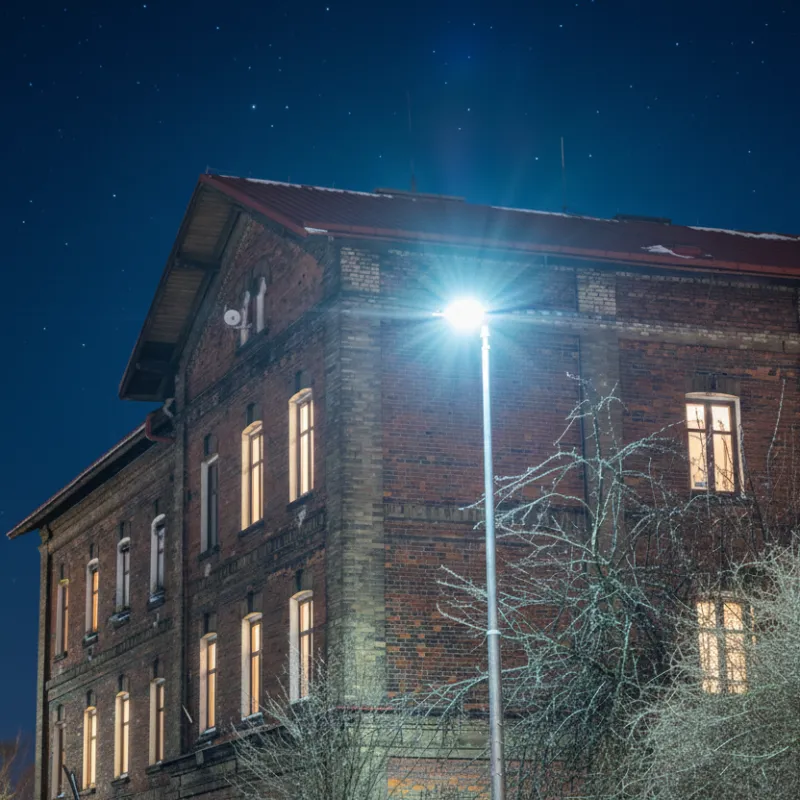

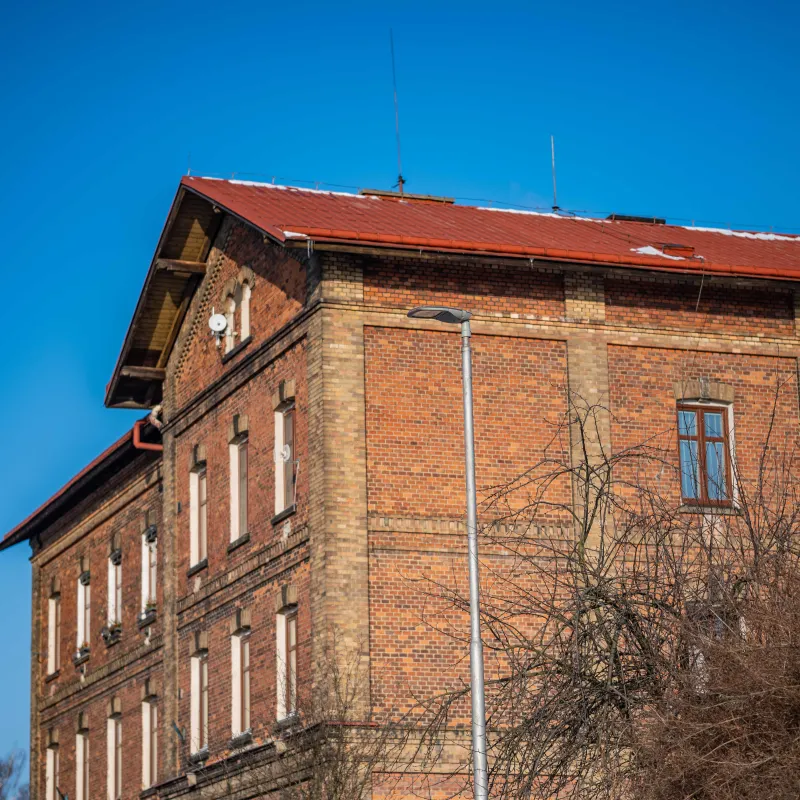

Colour RAL 7015/9006
Surface type matte
Luminaire cover tempered glass


Protection class I, II
Maximum ambient temperature -40 / 55 °C
Protection of the luminaire's electrical part IP 66
Mechanical durability IK 09
Vibration test YES
Corrosion test  YES
Certification ENEC, ENEC+, Zhaga-D4i, IDA Dark Sky Approved

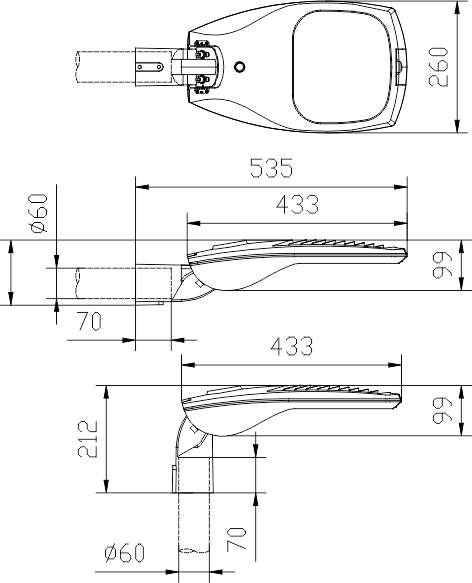

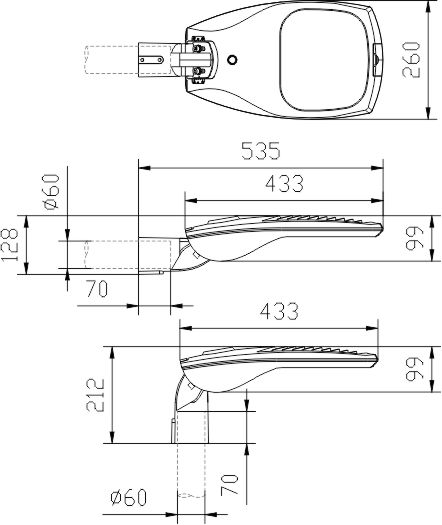

Method pole or boom mounted (48–60 mm); 60–76 mm (on request)
adjustable joint ± 15°
Recommended height max. up to 8 m

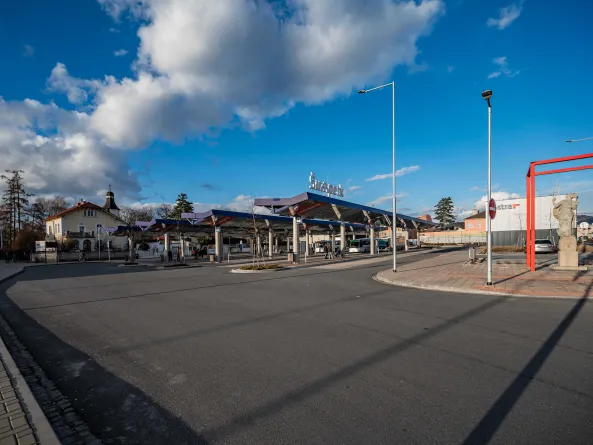

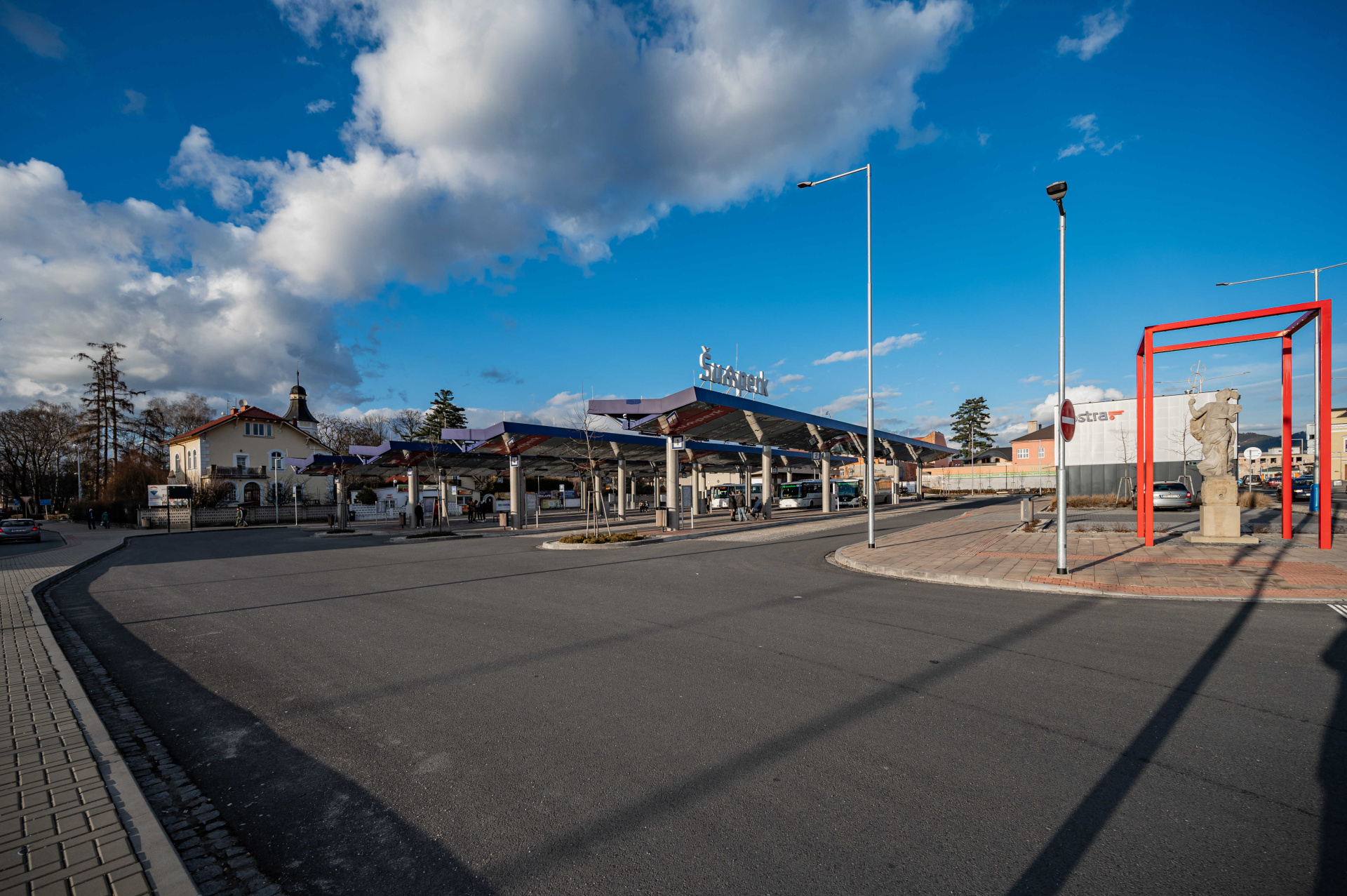

Use bike path, outdoor areas, pedestrian zones, sidewalks; road classes I., II. and III.


* Can not be produced under ENEC licence
** Weight may vary depending on the luminaire variant
Luminaire ambient temperature TQ 25 °C
Initial color consistency: ≤ 5 SDCM
IDA Dark Sky fixture seal of approval relates to ≤ 3 000 K
To meet IDA requirements, the luminaires must be installed horizontally with the road
Optical and electrical parameters tolerance ± 10 %

When using the CLO function, the initial power and luminous fluxis 10 % lower than the value shown in the table.
LDT curves with CLO function have the letter “C” at the end of their marking.



Energy label

Energy label
