Specifications
Electrical parameters
| Light source | LED |
| Supply voltage | AC 220–240 V / 50–60 Hz |
| Connection | Pre-wired cable, pre-wired cable with connector (G), without cable (WO) |
| Control gear | Electronic driver with surge protection (L/N–PE 10 kV) |
| Surge protection | Additional surge protection 10 kV (S) |
| Fuse protection | Fuse 6.3 A (J) |
| Control options | Non-dimmable (no marking), DALI (DALI), night dimming (A) Preparation for wireless communication NEMA (N), Zhaga (Z) |
| Constant lumen output | CLO (C) |
Light parameters

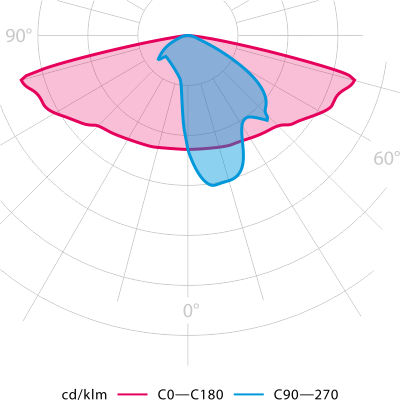

| Optical system | Roads (Mxx), roads (Lxx), directional (Pxx) Area (Uxx), combined optics (Kxx) BACK light shields (BL1/BL2), FRONT light shields (FL1/FL2) |
| Light distribution | Direct |
| Colour rendering index | CRI > 70, CRI > 80 |
| Colour temperature | BLUE FREE™ (AMBER), Tunable White 2,200 K / 2,700 K / 3,000 K / 4,000 K / 5,000 K / 5,700 K |
| Lifetime | > 120,000 h (L90) |
Construction
| Luminaire housing | Aluminum cast |

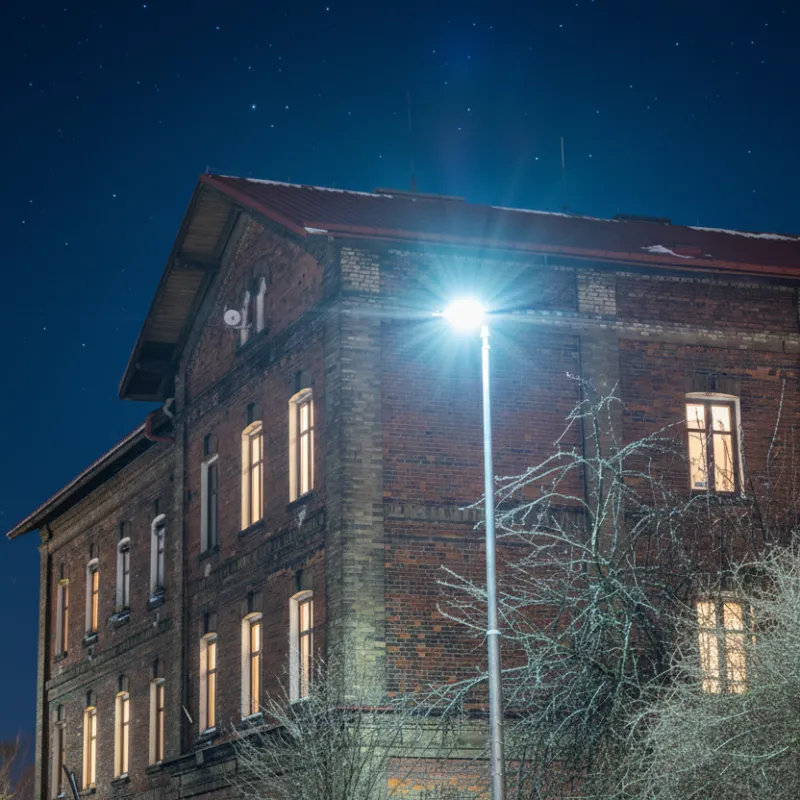

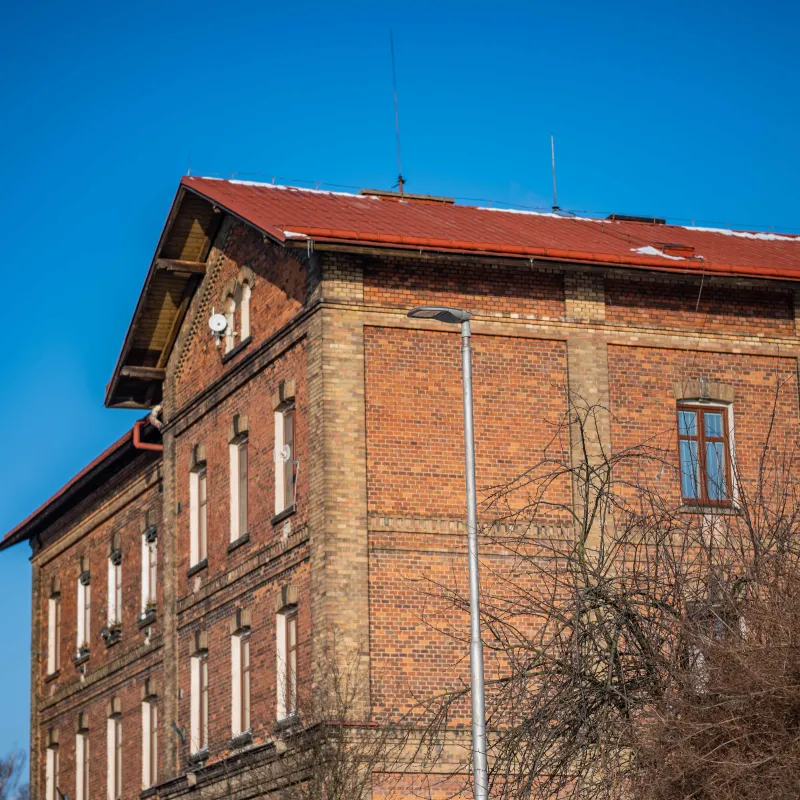

| Colour | RAL 7015/9006; other RAL (on request) |
| Surface finish | Matte |
| Luminaire cover | Tempered glass |
Safety
| Protection class | I, II |
| Ambient temperature range | −40/55 °C |
| Ingress protection | IP66 |
| Impact resistance | IK09, IK10 |

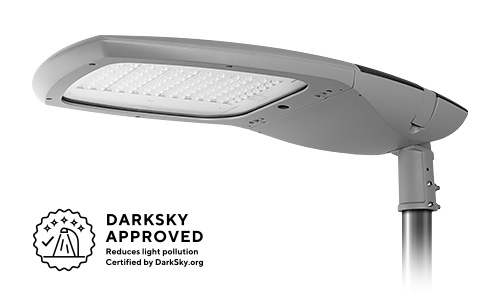

| Certifications | ENEC, ENEC+, REACH + RoHS, EPD, Zhaga-D4i, DarkSky |
| EMC | YES |
| Vibration resistance | YES |
| Salt spray resistance | YES |
| Static load resistance | YES |
| Lifetime test | YES |
| Photobiological safety | RG0 |
| CB test certificate | YES |
Mounting
| Mounting method | Pole- or bracket-mounted (48–60 mm); adaptor (60–76 mm) – on request Adjustable joint ±15° |
| Mounting height | Up to 15 m |
| Accessories | External shades (CZP) – on request |

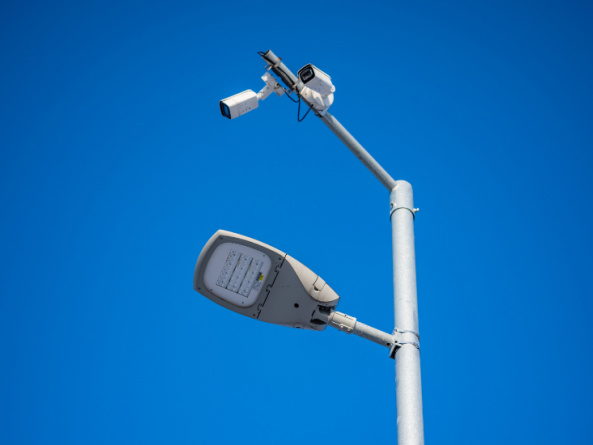

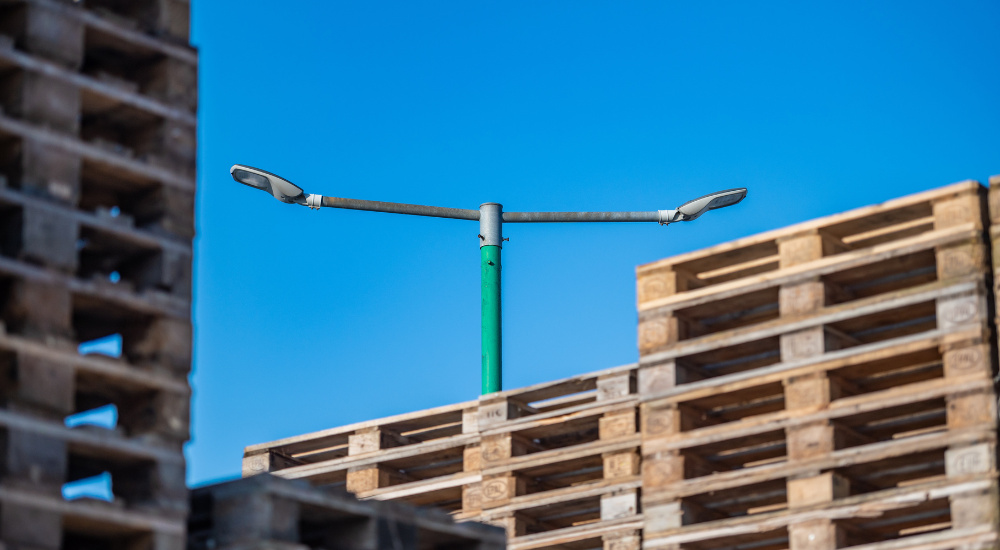

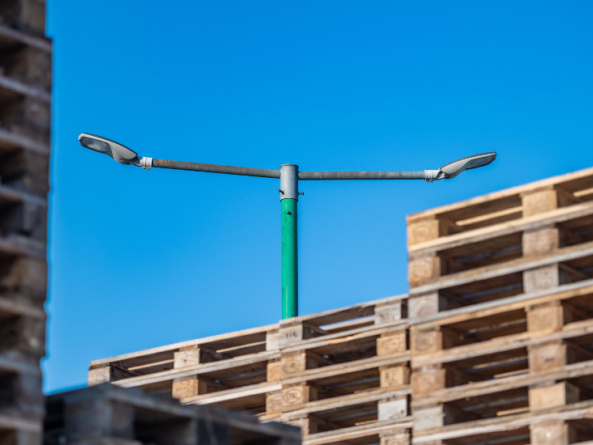

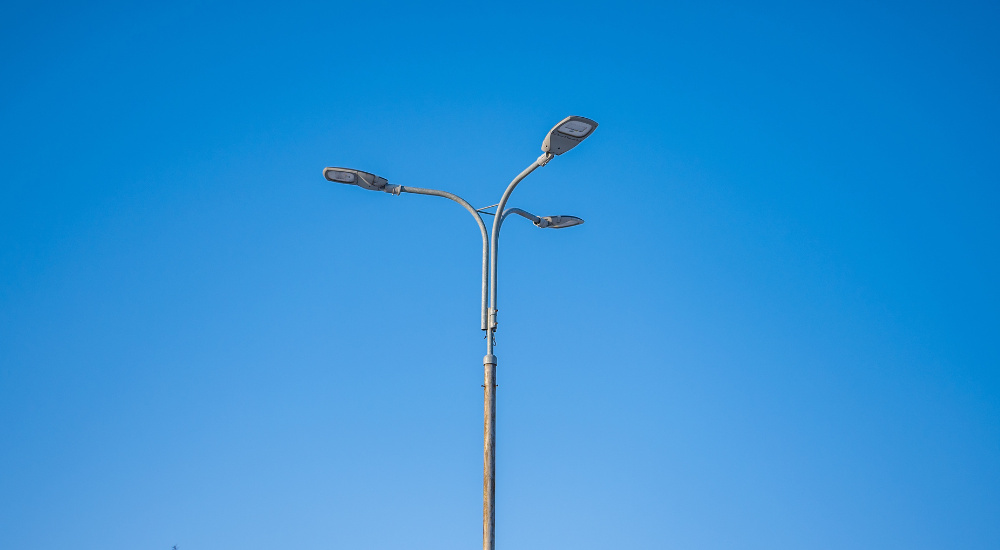

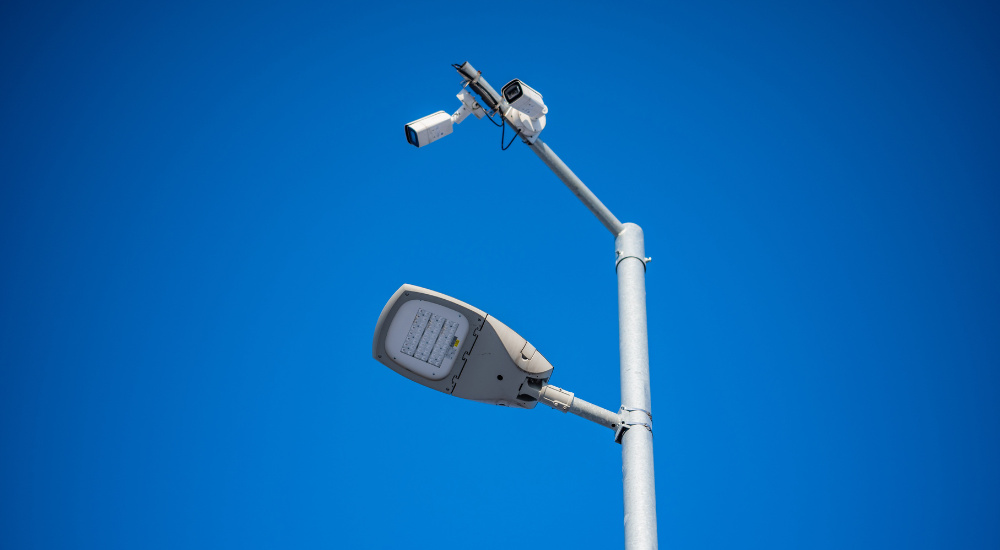

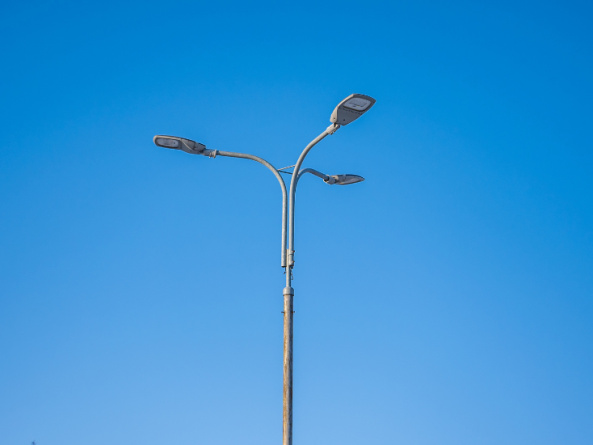

| Applications | Class I and II roads, outdoor areas |
