Specifications
Electrical parameters
| Light source | LED |
| Power voltage | AC 220–240 V / 50–60 Hz |
| Connection method | Terminal block, without cable (WO) |
| Ballast part | Electronic driver with surge protection L/N-Ground 10 kV |
| Surge protection | Additional surge protection 10 kV (S) |
| Fuse | Fuse 6,3 A (J) |
| Possibility of regulation | Non-dimmable (no marking), DALI (DALI), night dimming (A) Preparation for wireless communication NEMA (N), Zhaga (Z) or 2× Zhaga (Z2) |
| Constant lumen output | CLO (C) |

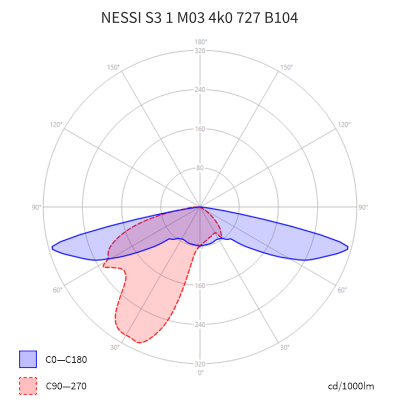

Light parameters
| Optical system | Roads (Mxx), roads (Lxx), directional (Pxx) Area (Uxx), pedastrian crossing (ZLx/ZPx), combined optics (Kxx) BACK Light shields (BL1/BL2), FRONT Light shields (FL1/FL2) |
| Light distribution | Direct |
| Colour rendering index | CRI > 70 |
| Colour temperature | BLUE FREE™ (AMBER), Tunable White 2,200 K / 2,700 K / 3,000 K / 4,000 K / 5,000 K / 5,700 K |
| Service life | > 100,000 h (L90) |

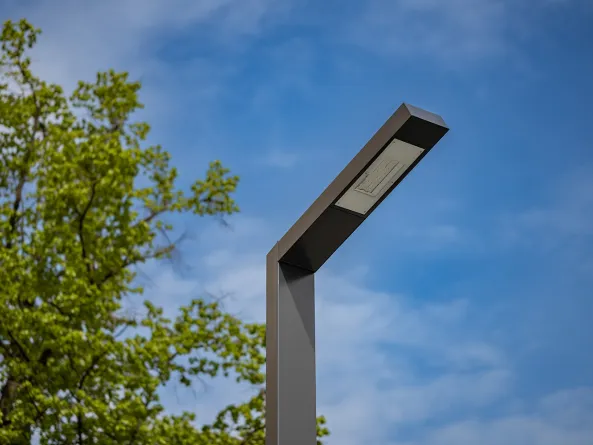

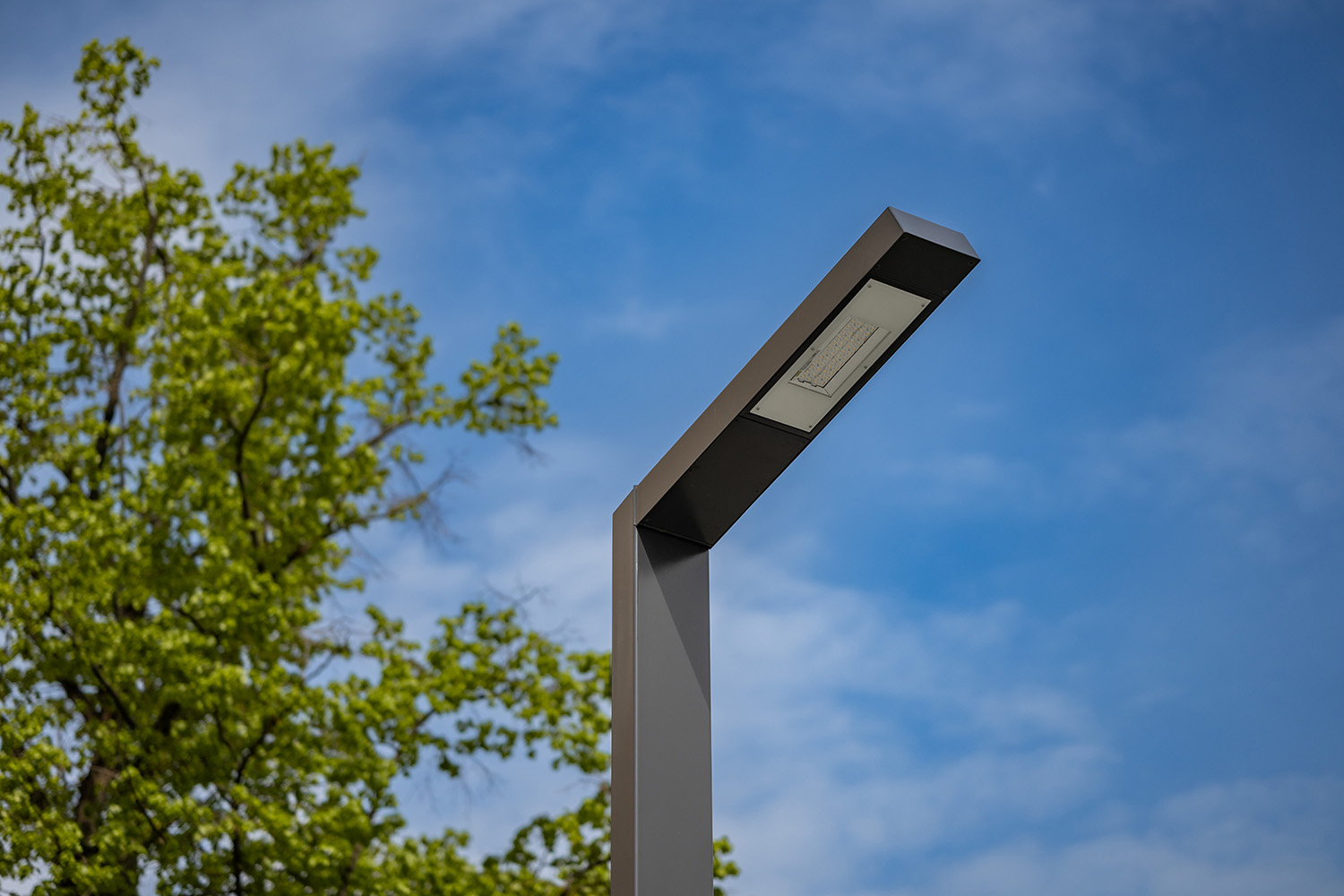

Construction
| Luminaire body | Powder-coated steel sheet |

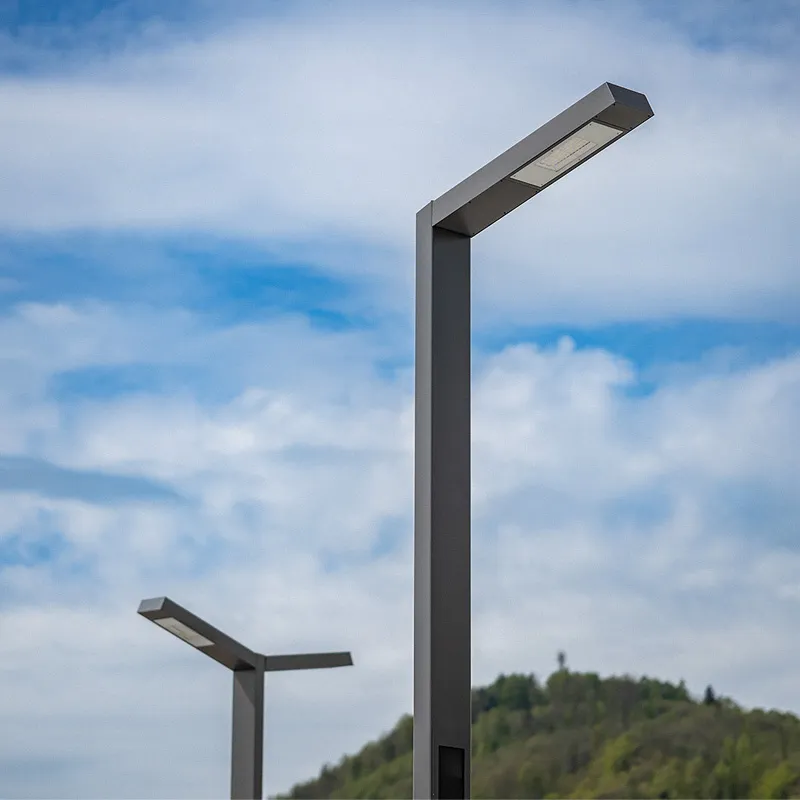

| Colour | RAL 7024 |
| Surface type | Matte |
| Luminaire cover | Tempered glass |
Safety
| Protection class | I |
| Maximum ambient temperature | -40/+40 °C |
| Ingress protection | IP 66 |
| Impact protection | IK 09 |
Mounting
| Method | Flange-mounted on concrete foundation with anchor bolts |
| Recommended height | Up to 12 m |

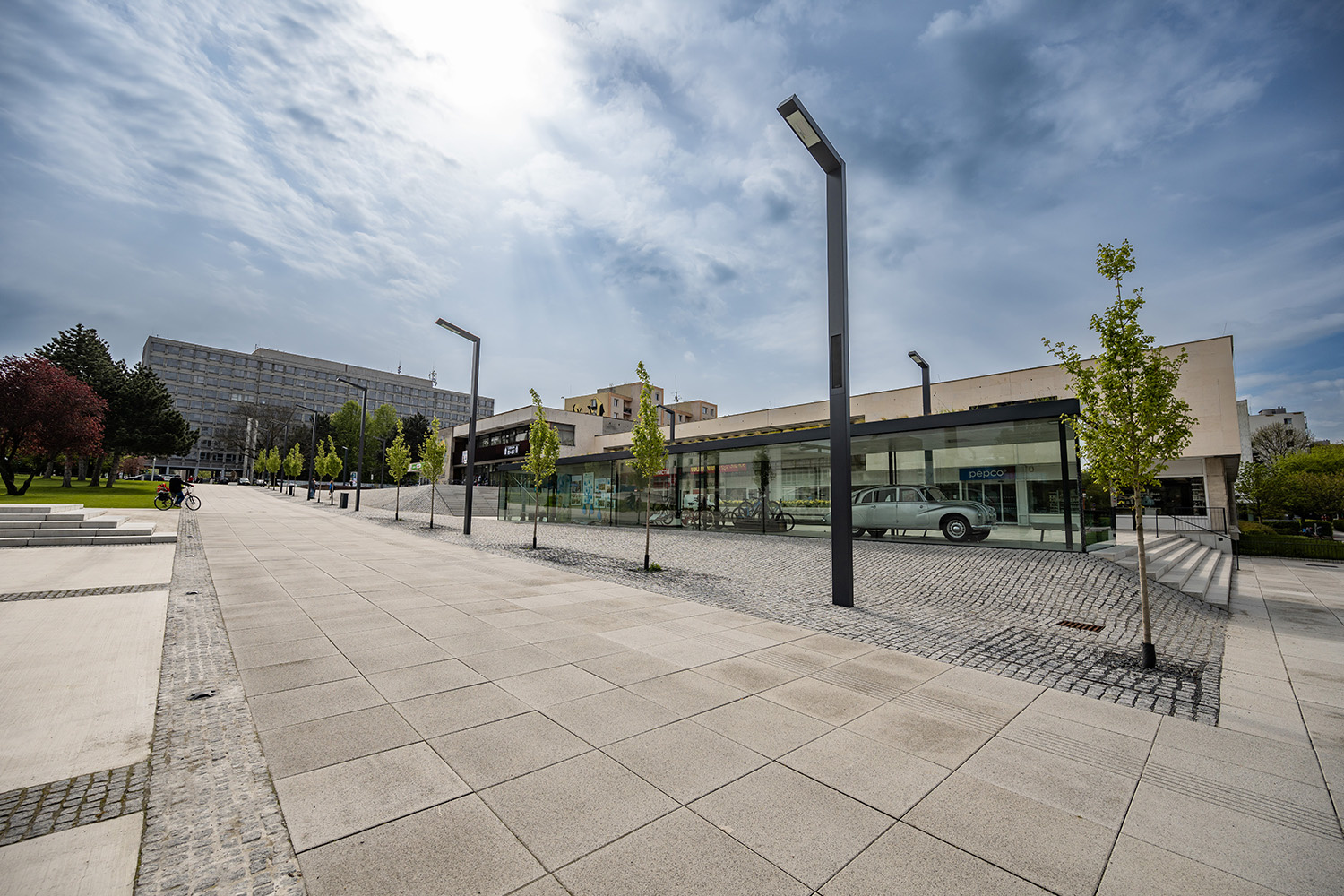

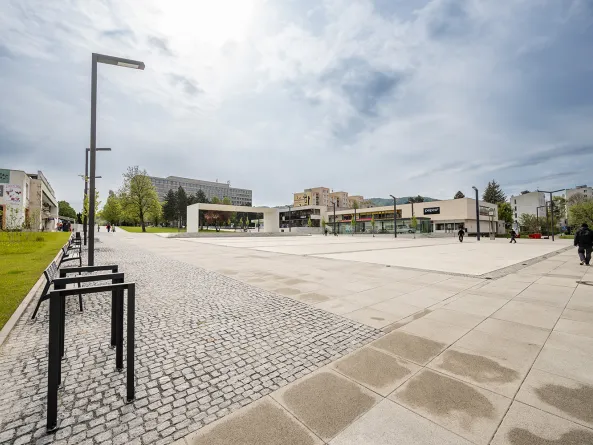

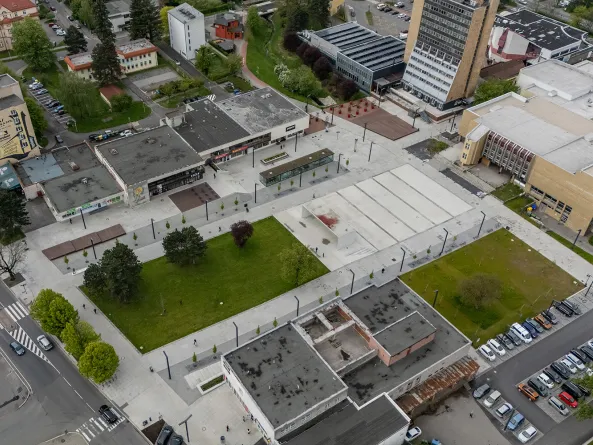

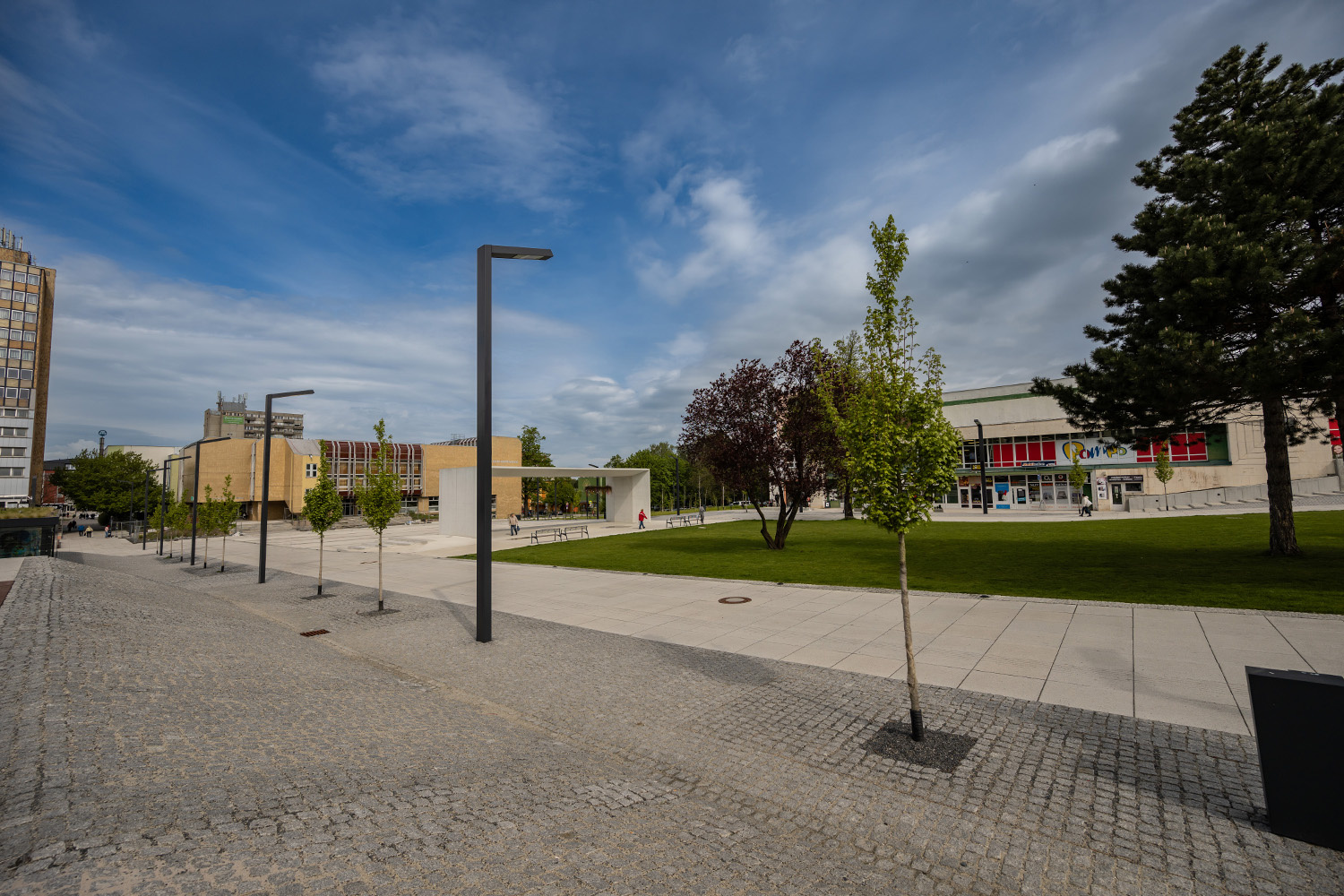

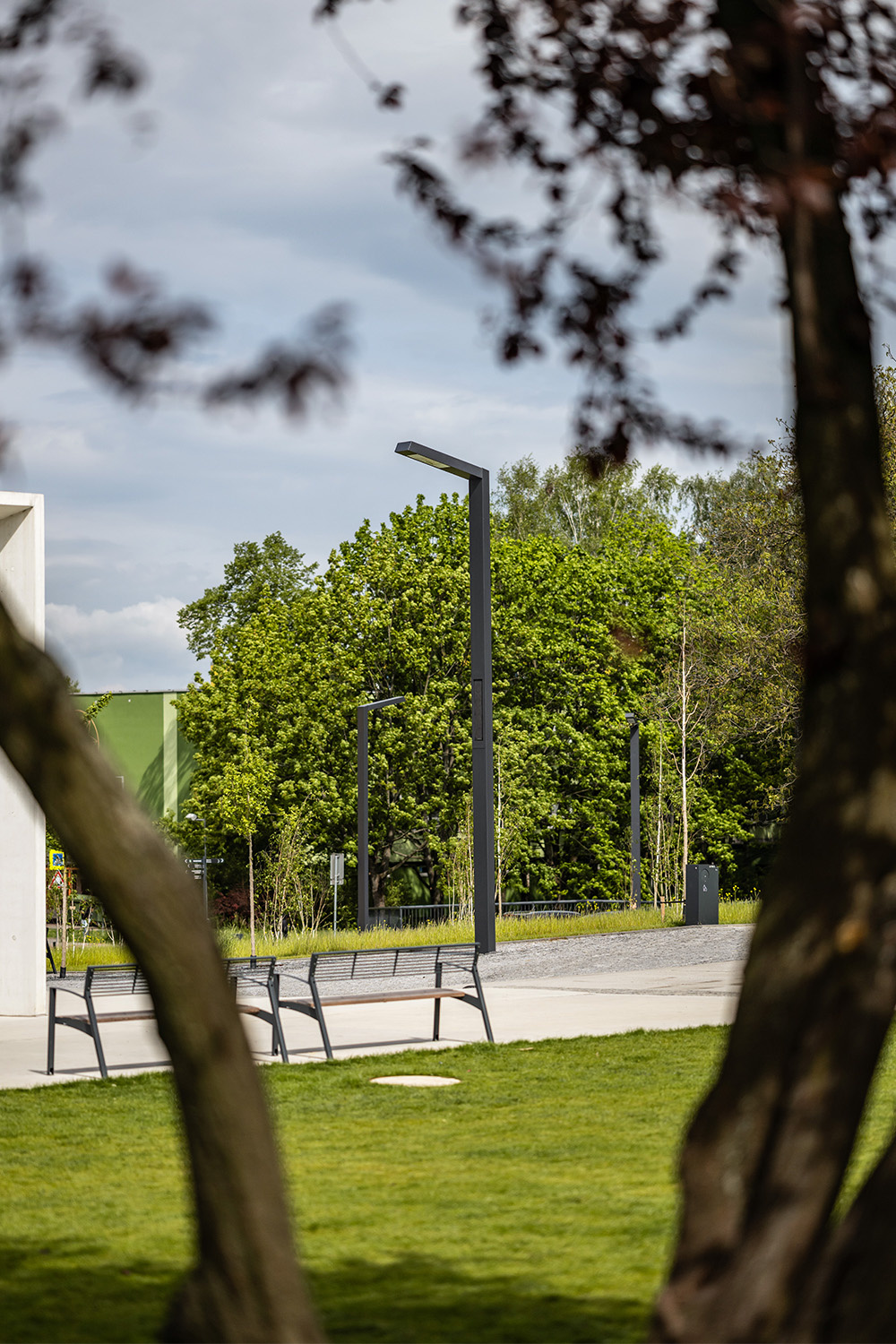

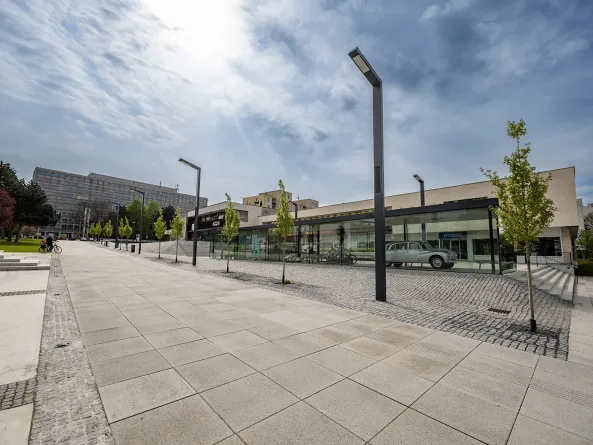

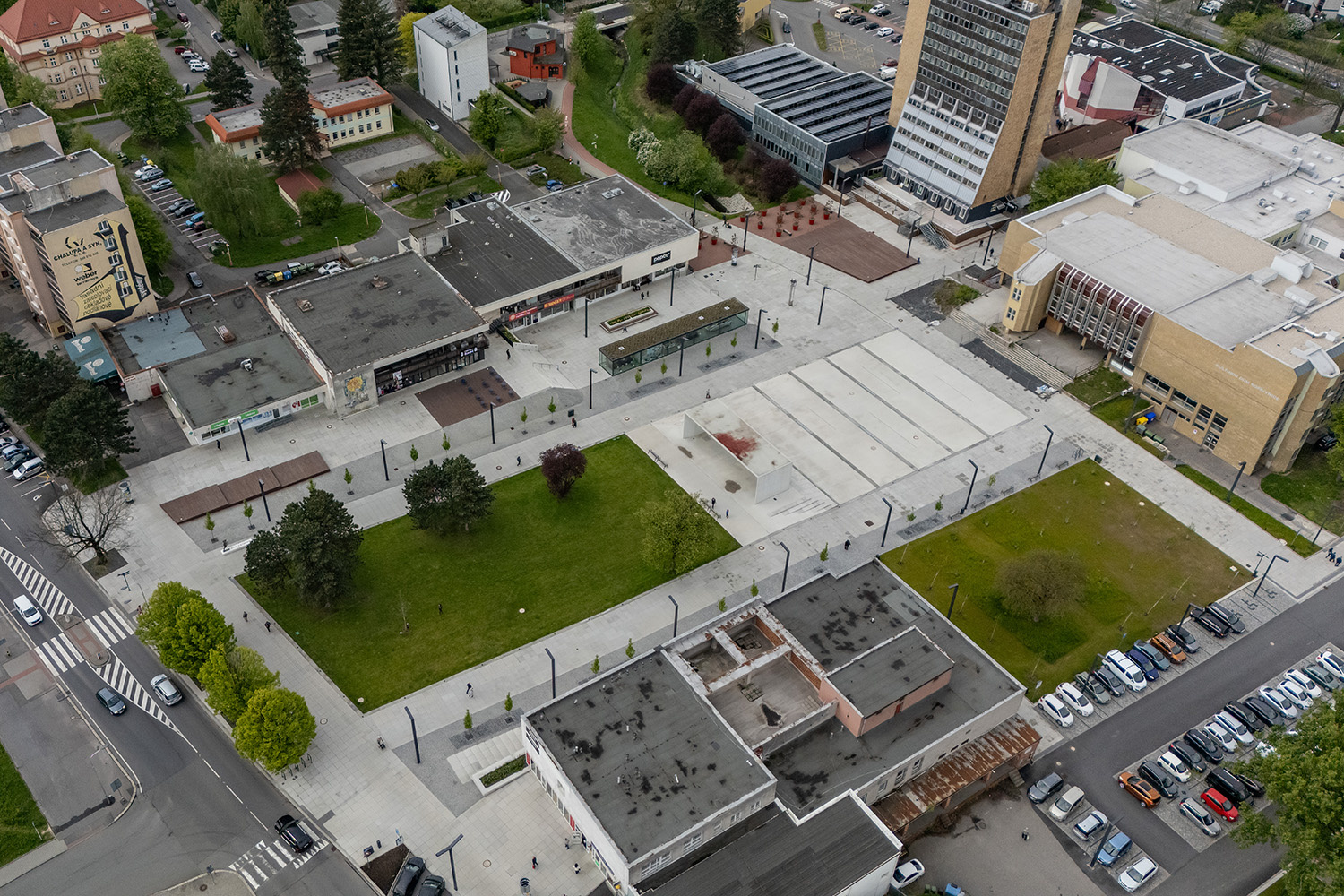

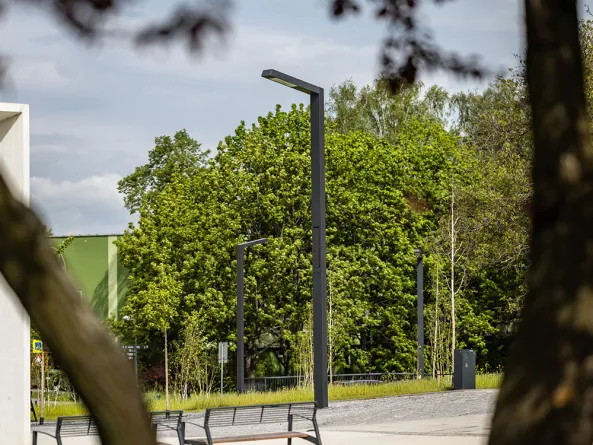

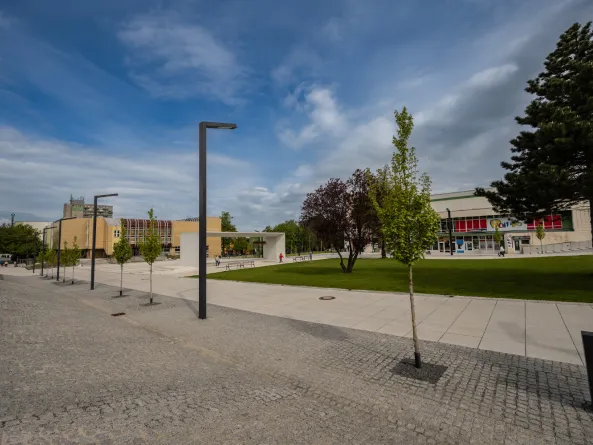

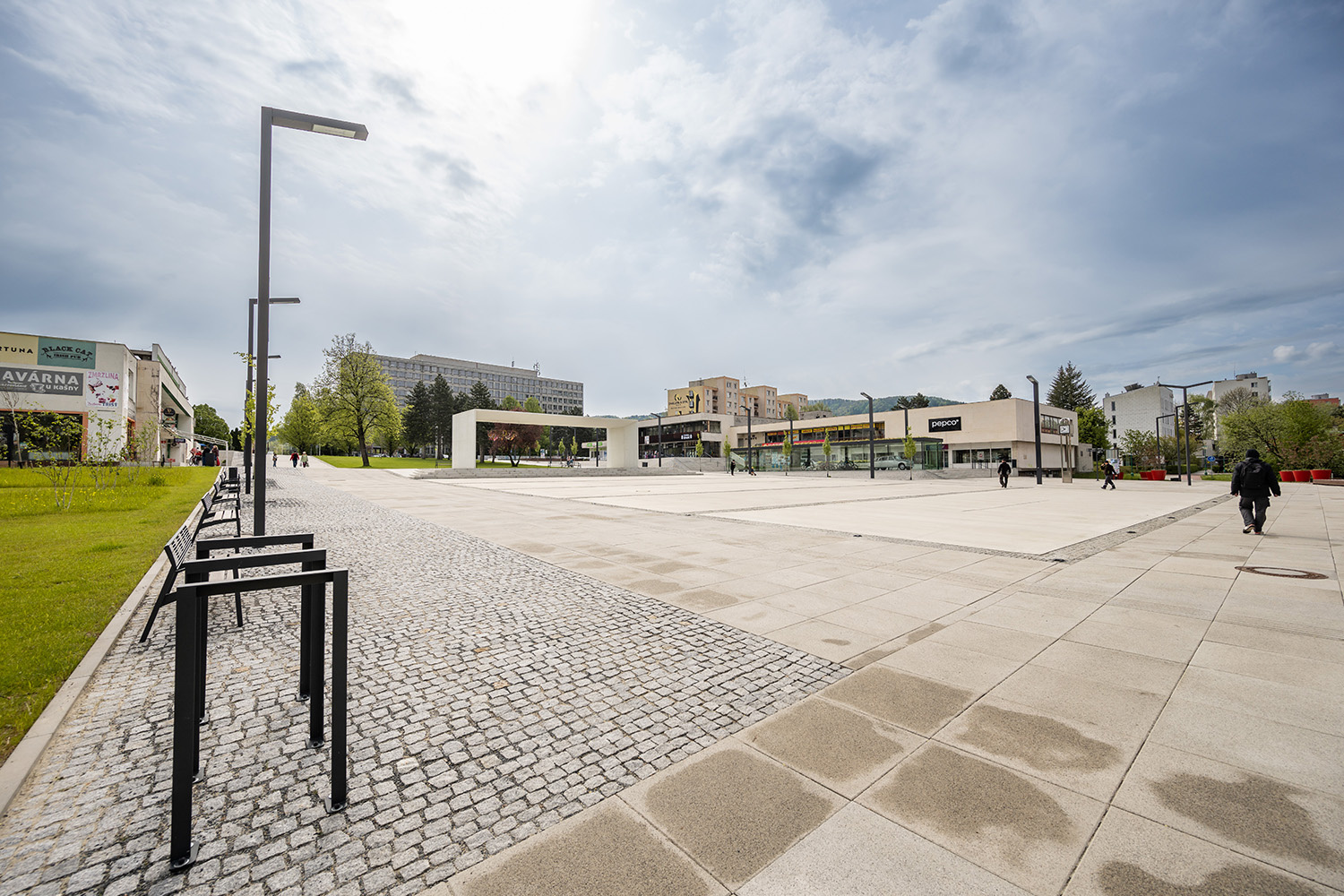

| Applications | Cycle paths, Sidewalks, Class II and III roads, Squares, Pedestrian zones, Outdoor areas |
