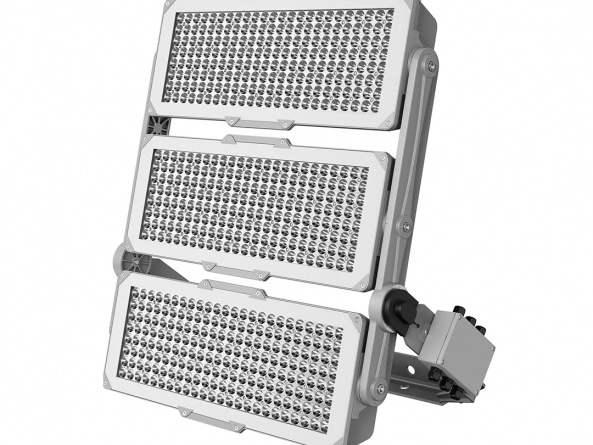

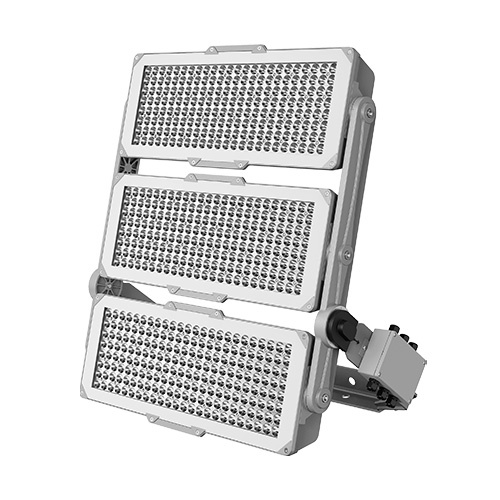

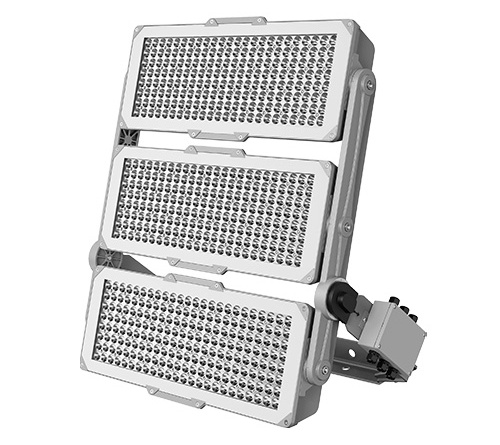

NITRON

The highly efficient and powerful NITRON LED floodlight sets a new standard for lighting large outdoor areas. It is designed for applications where maximum performance, precise light distribution and long-term reliability are essential.

RAL 9022 day RAL 9022 night

NITRON

Certificates and Parameters

ENEC+
Ingress Protection (IP66) Ingress Protection (IP66)
Impact Resistance (IK9) Impact Resistance (IK9)
BIM Models BIM Models

Colors

Performance. Precision. Durability.

NITRON is the ideal choice for sports facilities, parking areas, logistics sites and airport areas, where high illuminance levels must be achieved while maintaining energy efficiency. It offers outstanding luminous efficacy and a robust construction designed to withstand demanding weather and operating conditions. Thanks to its high-quality optics and precise light control, it provides uniform illumination without unnecessary light losses.

Specifications

Electrical parameters

Light source LED
Supply voltage AC 220–240 V / 50–60 Hz
Connection Terminal block
Control gear Electronic driver with surge protection (L/N–PE 10 kV)
The driver can be installed up to 20 m from the luminaire
Control options No control (1), DALI (4)
Emergency module NO

Light parameters

Optical system Area lighting (C58), (RL01), (RL02)
Light distribution Direct
Colour rendering index CRI > 70
Colour temperature 4,000 K
Lifetime > 100,000 h (L90B10)

Construction

Luminaire housing Cast aluminium
Colour RAL 9022
Surface finish Matt
Luminaire cover Safety glass

Safety

Protection class I, II
Ambient temperature range −30/+40 °C
Ingress protection IP66
Impact resistance IK09

Mounting

Mounting method By mounting on a bracket (part of the luminaire)
Tilt ±90° of the entire luminaire, ±20° for individual modules
Mounting height Up to 40 m
Applications Airport areas, parking areas, sports facilities, open areas, railways

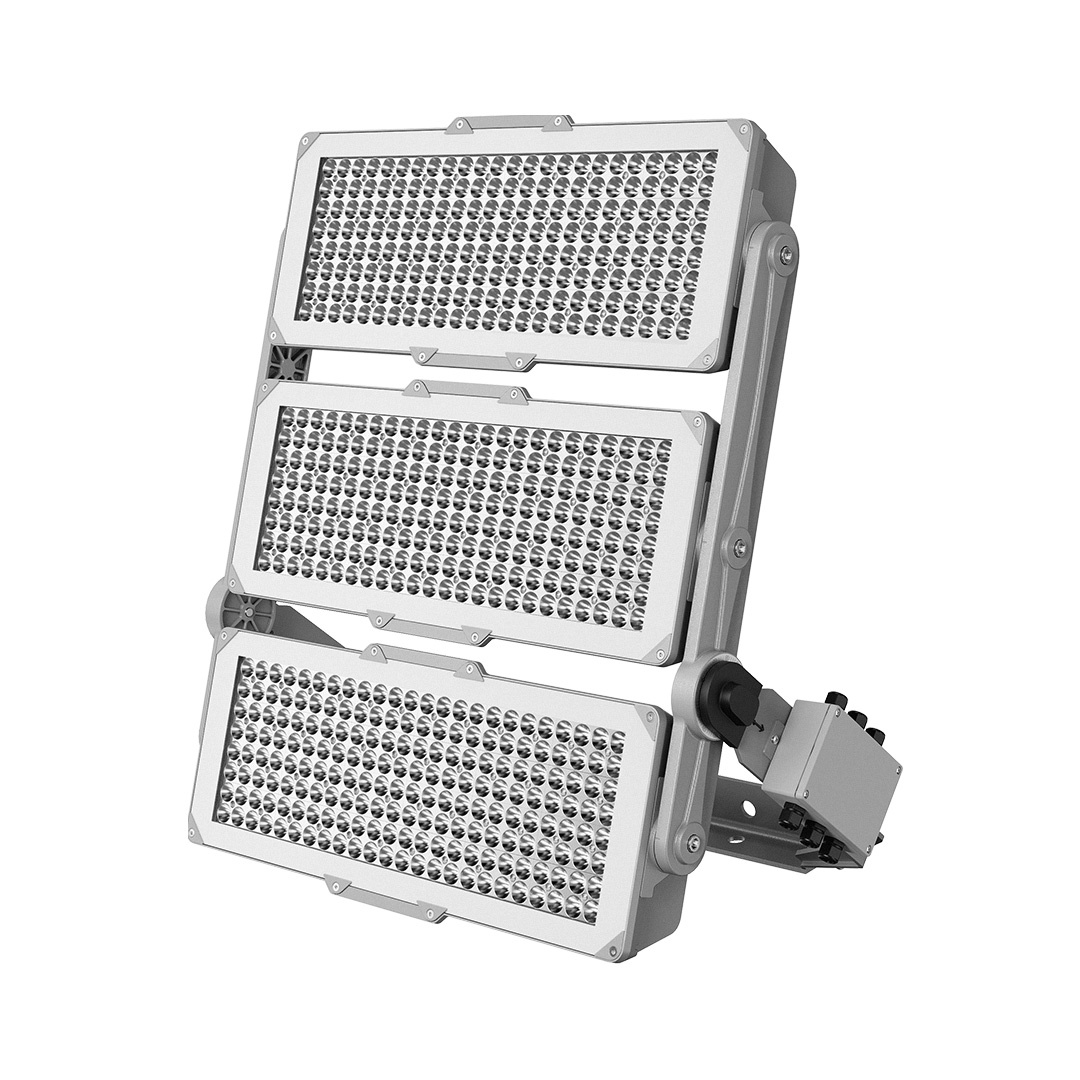

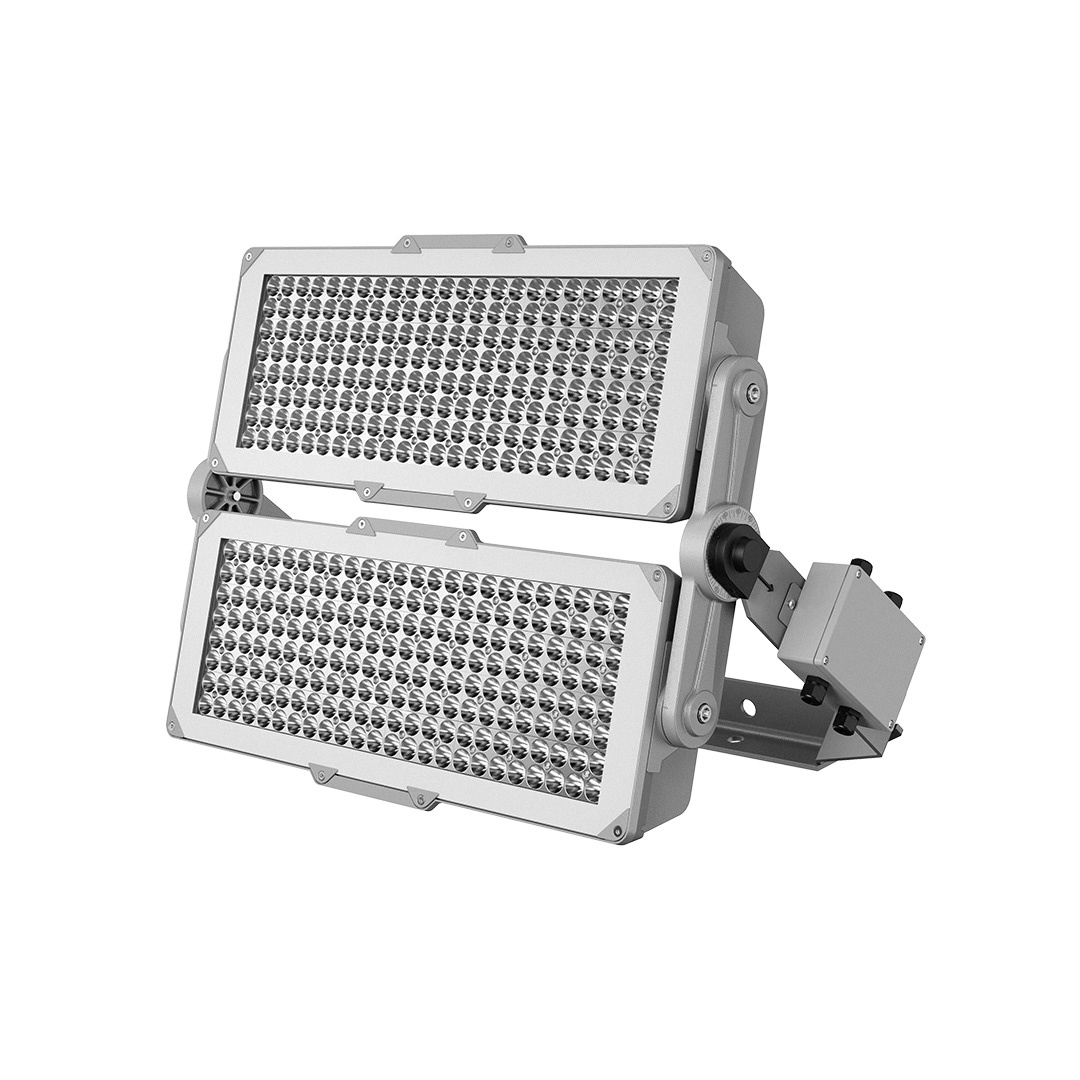

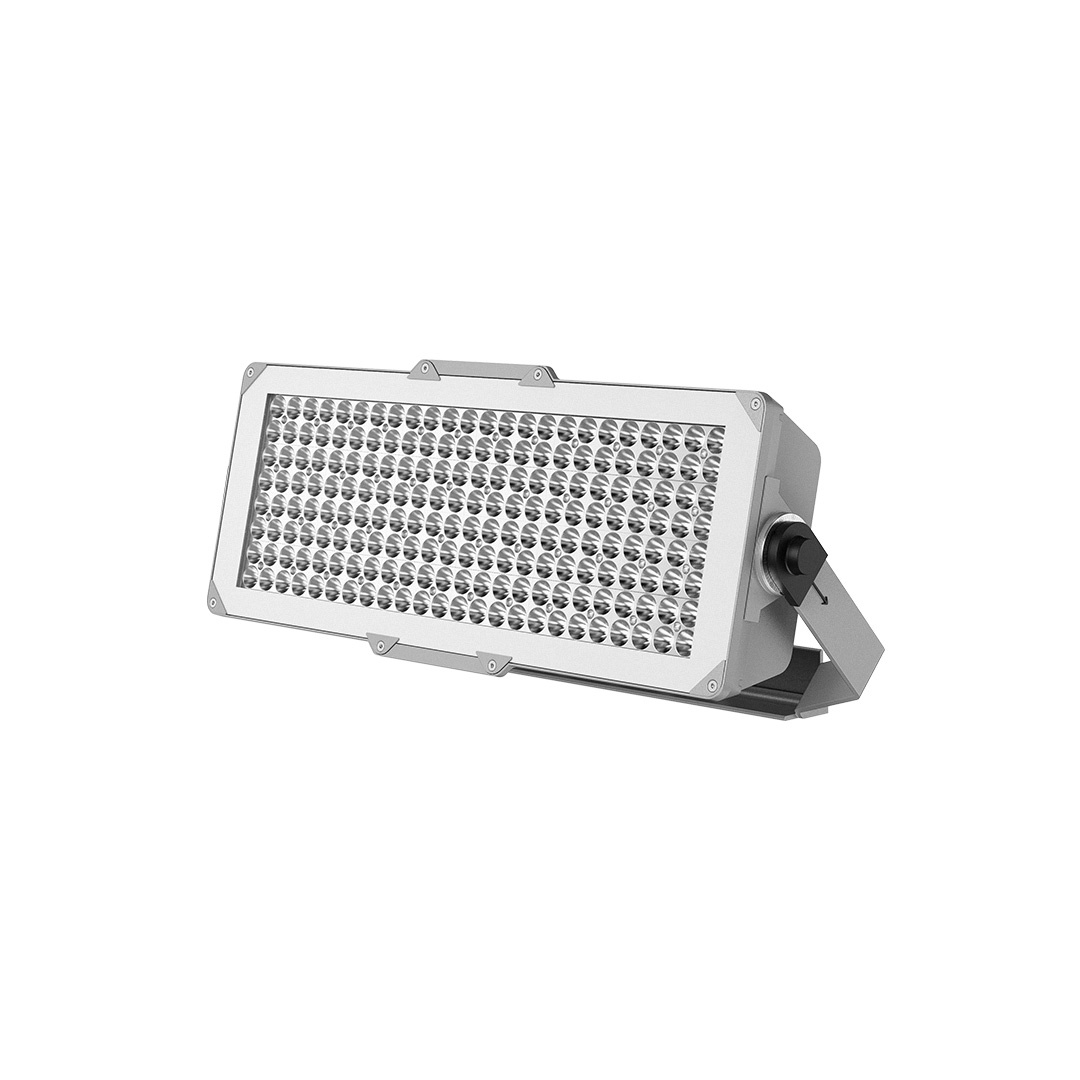

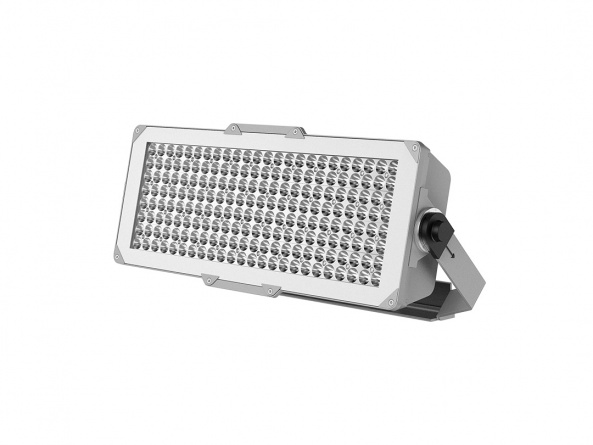

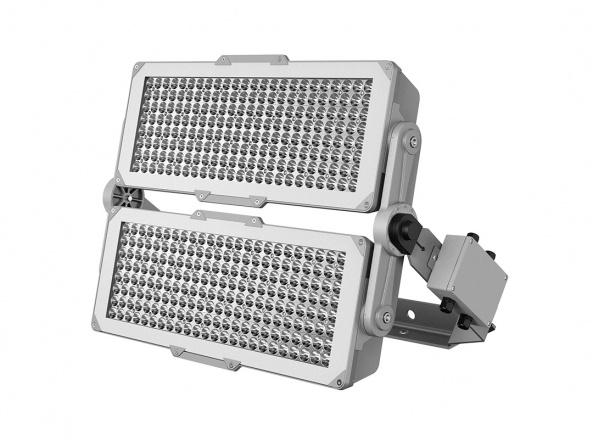

Variants

Variants

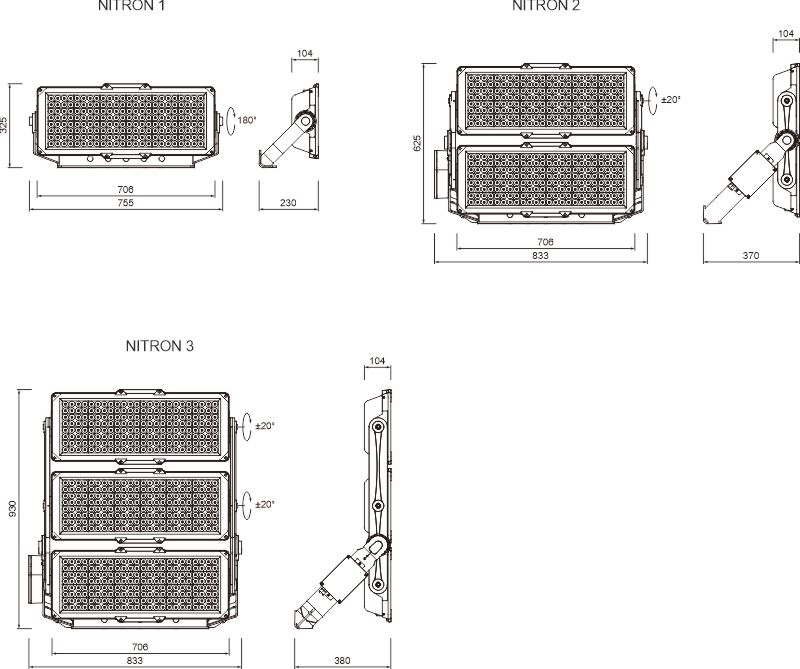

Dimensions

Dimensions

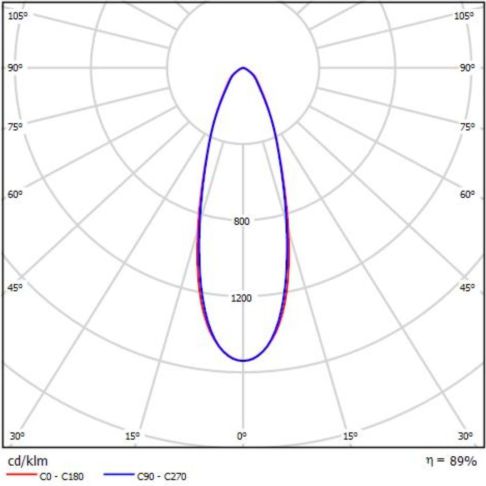

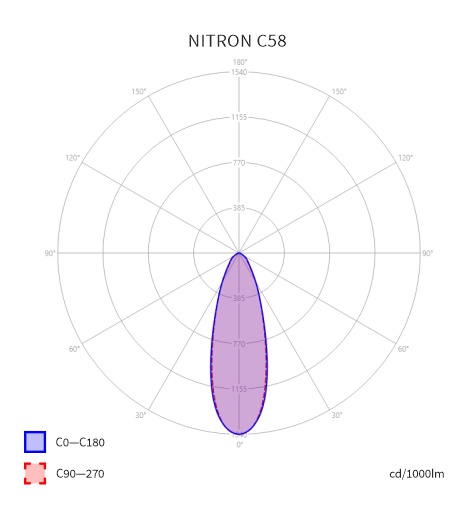

Photometry

Photometry

Energy label

Energy label
