Specifications
Electrical parameters
| Light source | LED |
| Power voltage | AC 230 V / 50 Hz |
| Connection method | cable out |
| Ballast part | electronic driver |
| Emergency module | NO |
Light parameters
| Optical system | narrow beam (C), wide beam (D), aperture (S) |

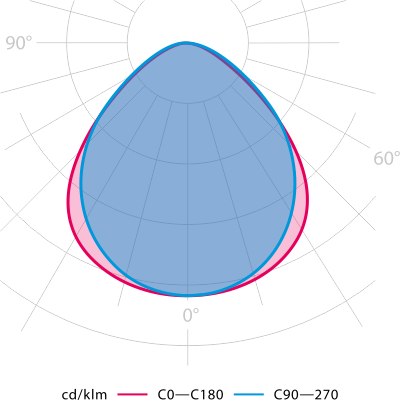

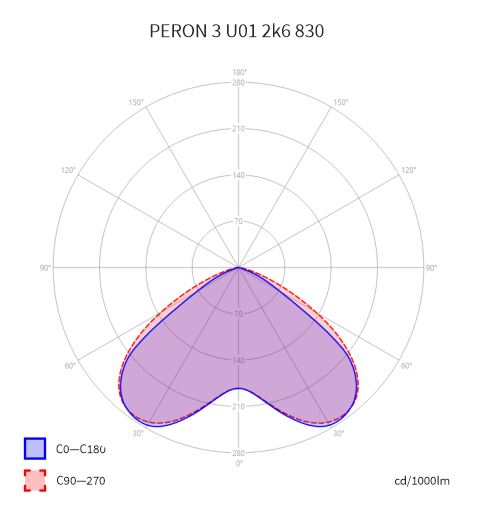

| Light distribution | direct |
| Colour rendering index | Ra > 80 |
| Colour temperature | 3,000 K |
| Service life | > 60,000 hrs. (L80B20) |

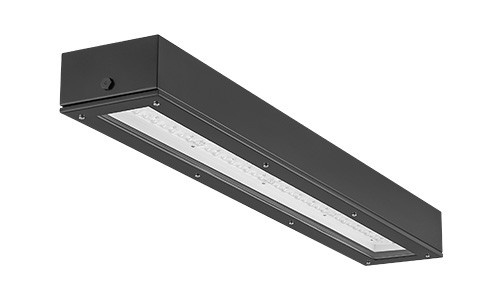

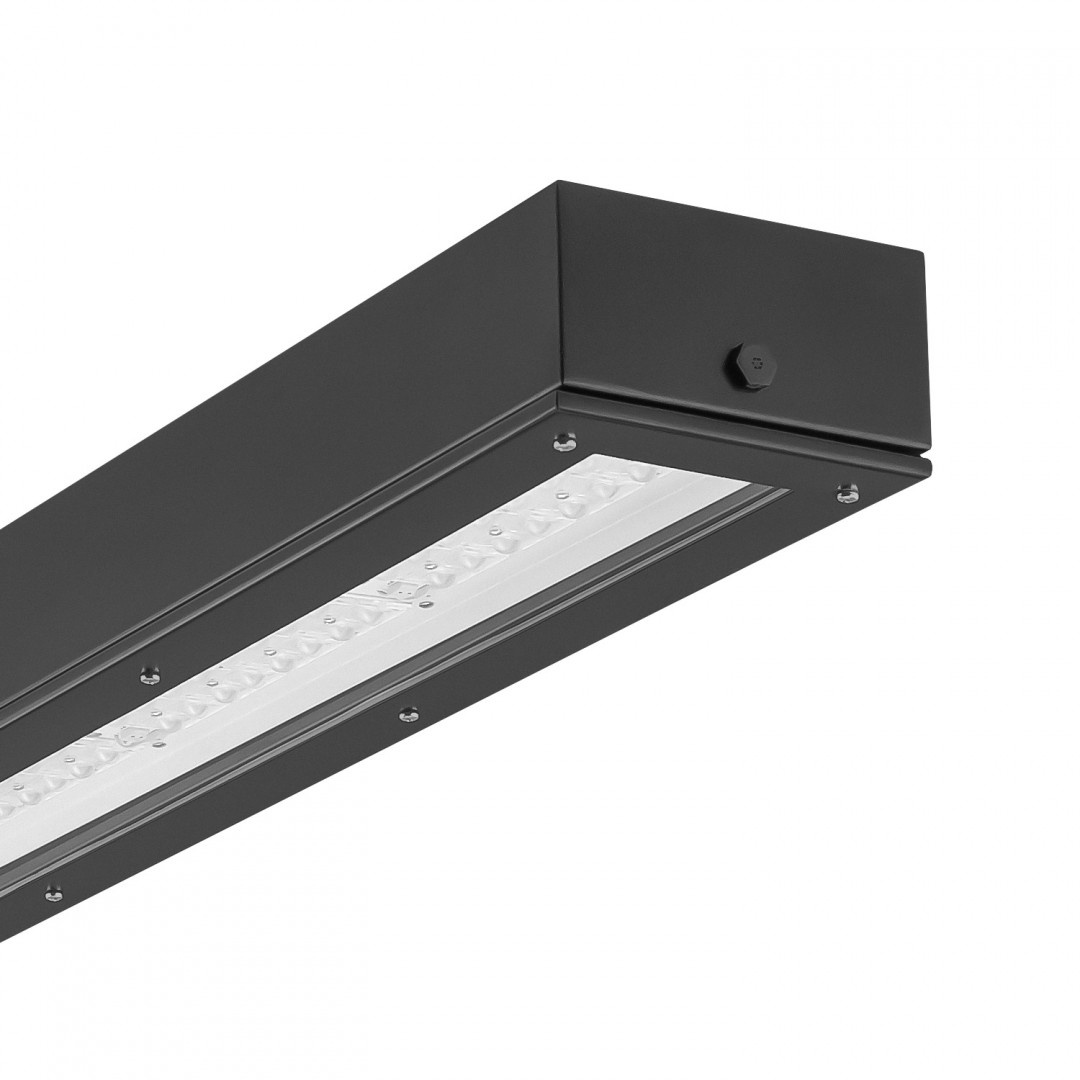

Construction
| Luminaire body | powder-coated steel sheet |
| Colour | metallic gray, other RAL (on request), exterior finish (V) |
| Surface type | gloss |
| Luminaire cover | safety glass (X) |
Safety
| Protection class | I, II |
| Maximum ambient temperature | -30 / +50 °C |
| Protection of the luminaire's electrical part | IP 65 |
| Protection of the luminaire's optical part | IP 65 |
| Mechanical durability | IK 10 |
| Mounting on normally flammable surfaces | YES |
Mounting
| Method | suspension (Z), surface mounted* |
| Recommended height | from 3 to 8 m |
Accessories
| Clips | NO |
| Suspension accessories | suspension hooks; mounting kit for surface mounting (on request) |

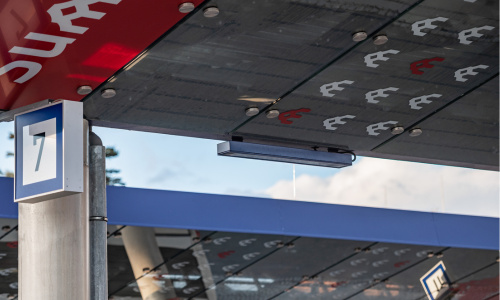

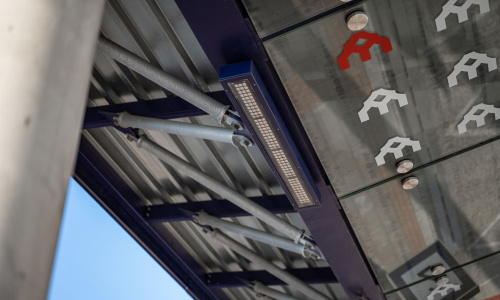

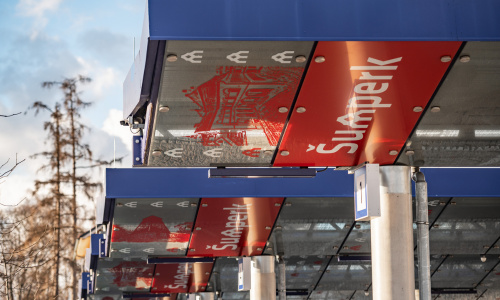

| Use | entrance hall, railway areas, underpasses |
