Specifications
Electrical parameters
| Light source | LED |
| Power voltage | AC 220–240 V / 50–60 Hz |
| Connection method | Leading out cable, leading out cable with connector (G), without cable (WO) |
| Ballast part | Electronic driver with surge protection L/N-Ground 10 kV |
| Surge protection | Additional surge protection 10 kV (S) |
| Fuse | Fuse 6,3 A (J) |
| Possibility of regulation | Without regulation (not labeled), DALI (DALI), night dimming (A) Preparation for wireless communication NEMA (N), Zhaga (Z) |
| Constant lumen output | CLO (C) |
Light parameters
| Optical system | Roads (Mxx), roads (Lxx), directional (Pxx), area (Uxx) Pedastrian crossing (ZLx/ZPx) – not available with ZP06 and ZL06 Combined optics (Kxx), BACK Light mask (BM2) |

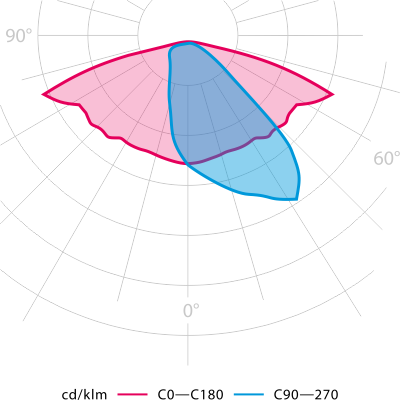

| Light distribution | Direct |
| Colour rendering index | CRI > 70, CRI > 80 |
| Colour temperature | BLUE FREE™ (AMBER) / 2,200K / 2,700 K / 3,000 K / 4,000 K / 5,000 K |
| Service life | > 100,000 h (L90B10) |
Construction
| Luminaire body | Aluminum cast |
| Colour | RAL 7015; other RAL (on request) |
| Surface type | Matte |
| Luminaire cover | Tempered glass |
Safety
| Protection class | I, II |
| Maximum ambient temperature | -40/+50 °C |
| Ingress protection | IP 66 |
| Impact protection | IK 08 |

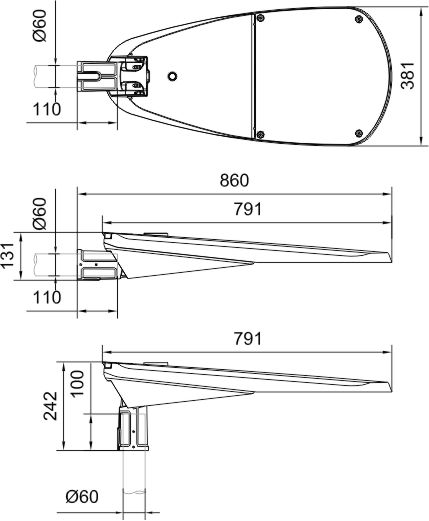

Mounting
| Method | Pole or boom mounted (48–60 mm), adjustable joint ± 15° |
| Recommended height | Max. up to 15 m |

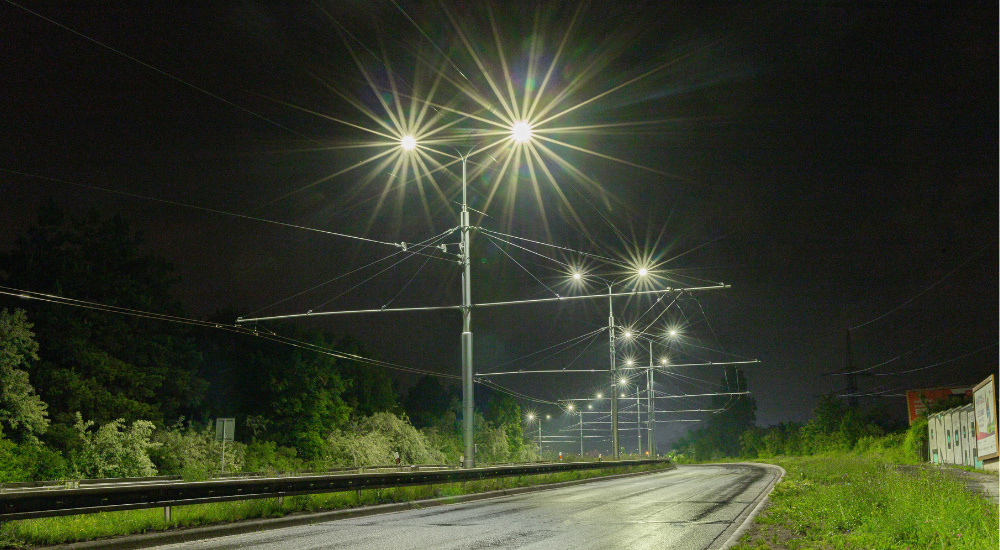

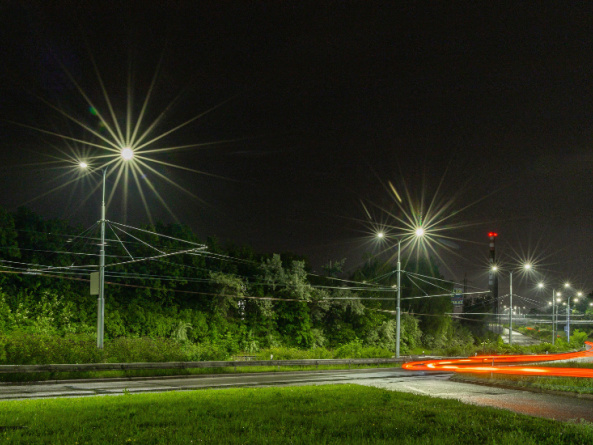

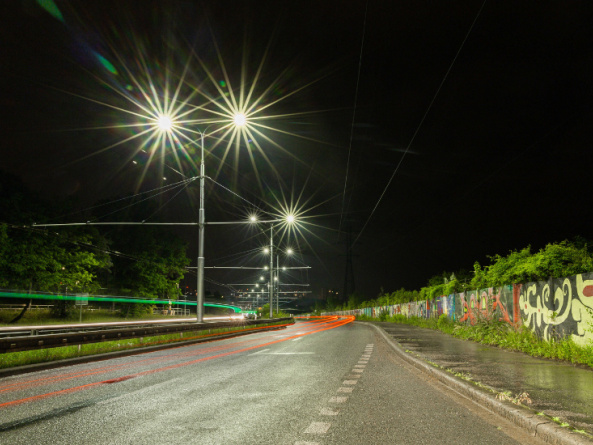

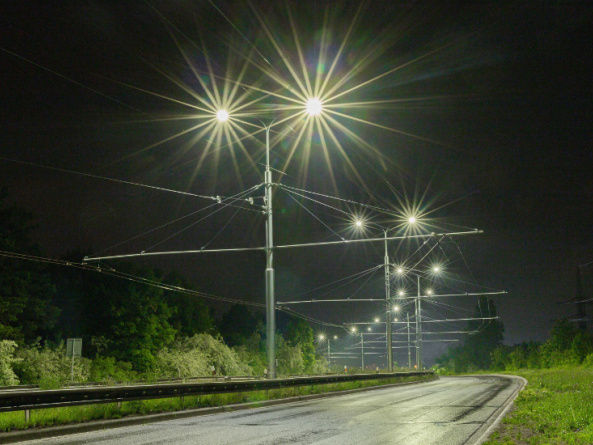

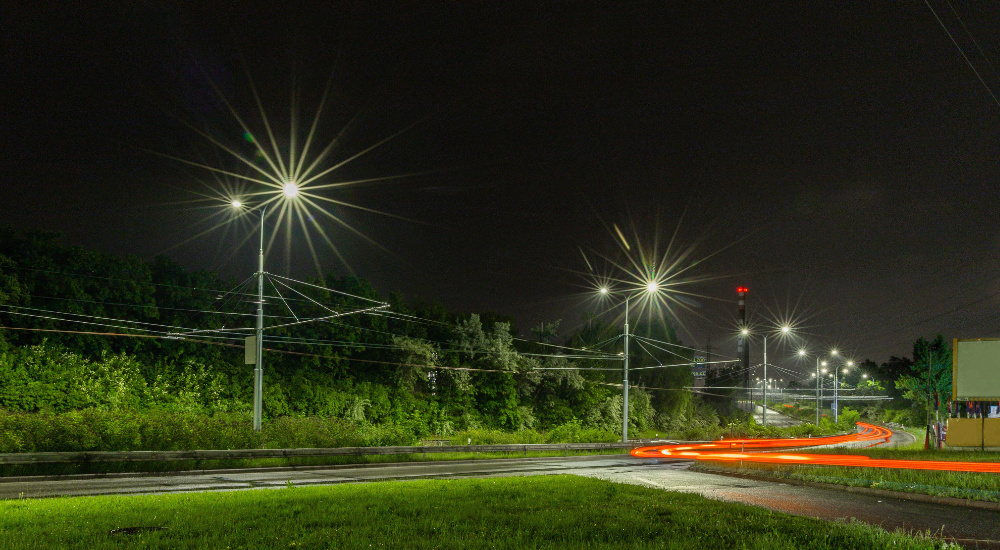

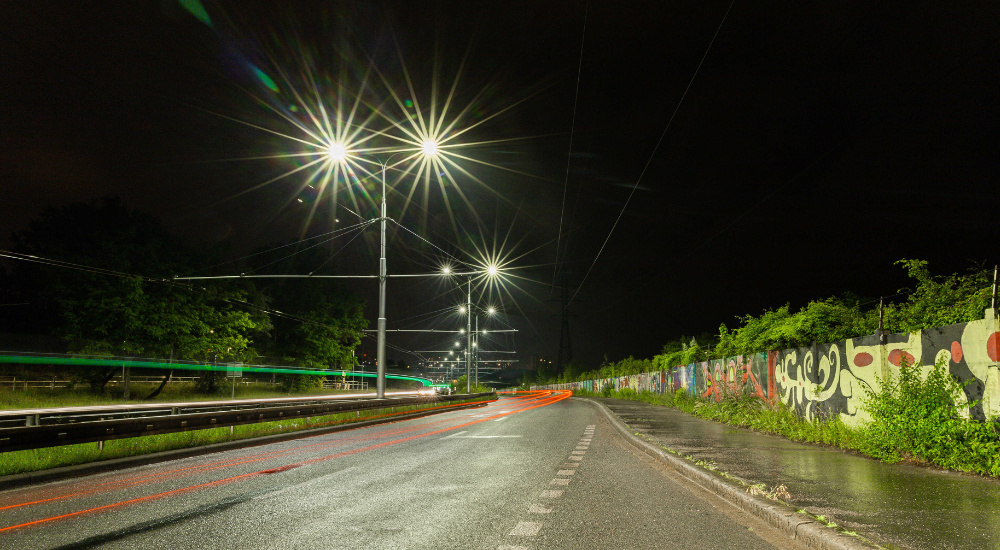

| Use | Bike path, outdoor areas, pedestrian zones, sidewalks, road classes I. and II. |
