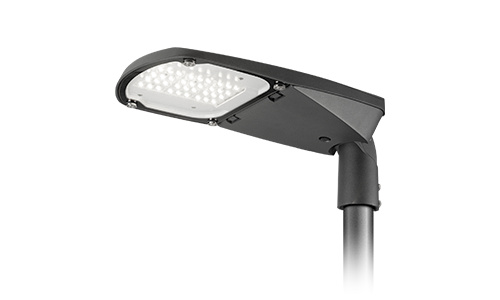

SHANTA S

Modern LED luminaire for public lighting with an adjustable joint (±20°) and the option to integrate two Zhaga-D4i connectors, one on the top and one on the underside of the luminaire.

RAL 7015 day RAL 7015 night

SHANTA S

Certificates and Parameters

Choice of optional colours for the luminaire bodies Choice of optional colours for the luminaire bodies
AstroDIM AstroDIM
Ingress Protection (IP66) Ingress Protection (IP66)
Impact Resistance (IK8) Impact Resistance (IK8)

Colors

Clean design. Smooth lines. Modern lighting.

The SHANTA LED luminaire combines a modern appearance with thoughtful design. The smooth finish on the upper part of the housing emphasises its clean lines and gives it an elegant character. Its understated design blends naturally into its surroundings. An ideal choice wherever lighting needs to fulfil its function while also enhancing the appearance of the space.

Specifications

Electrical parameters

Light source LED
Supply voltage AC 220–240 V / 50–60 Hz
Connection Pre-wired cable, pre-wired cable with connector (G), without cable (WO)
Control gear Electronic driver with surge protection (L/N–PE 10 kV)
Surge protection Additional surge protection 10 kV (S)
Fuse protection Fuse 6.3 A (J)
Control options No control (1), DALI (4), night dimming (A)
Preparation for wireless communication NEMA (N), Zhaga (Z)
Constant lumen output CLO (C)

Light parameters

Optical system Roads (Mxx), roads (Lxx), directional (Pxx), area (Uxx)
Pedestrian crossing (ZLx/ZPx) – not available with ZP06 and ZL06
Combined (Kxx), AMBER module (Nxx), AMBER optics (ALxx)
BACK light mask (BM2)
Light distribution Direct
Colour rendering index CRI > 70, CRI > 80
Colour temperature BLUE FREE™ (AMBER) / 2,200 K / 2,700 K / 3,000 K / 4,000 K / 5,000 K
Lifetime > 100,000 h (L90B10)

Construction

Luminaire housing Cast aluminium
Colour RAL 7015; other RAL (on request)
Surface finish Matt
Luminaire cover Toughened glass

Safety

Protection class I, II
Ambient temperature range −40/+50 °C
Ingress protection IP66
Impact resistance IK08

Mounting

Mounting method Pole- or bracket-mounted (48–60 mm), adjustable joint ±10°
Mounting height Up to 8 m

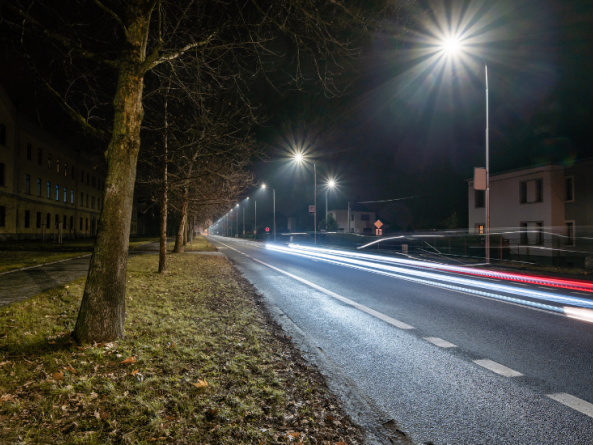

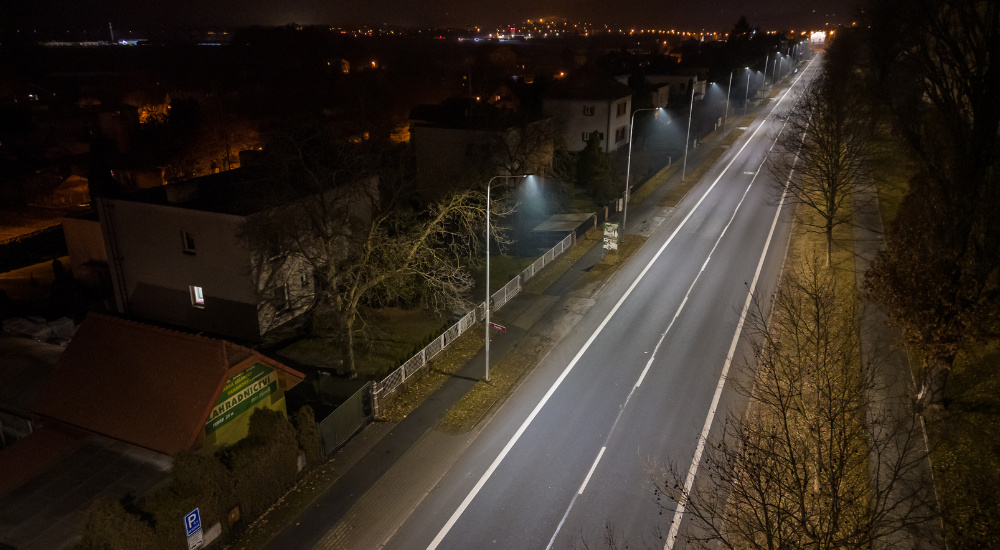

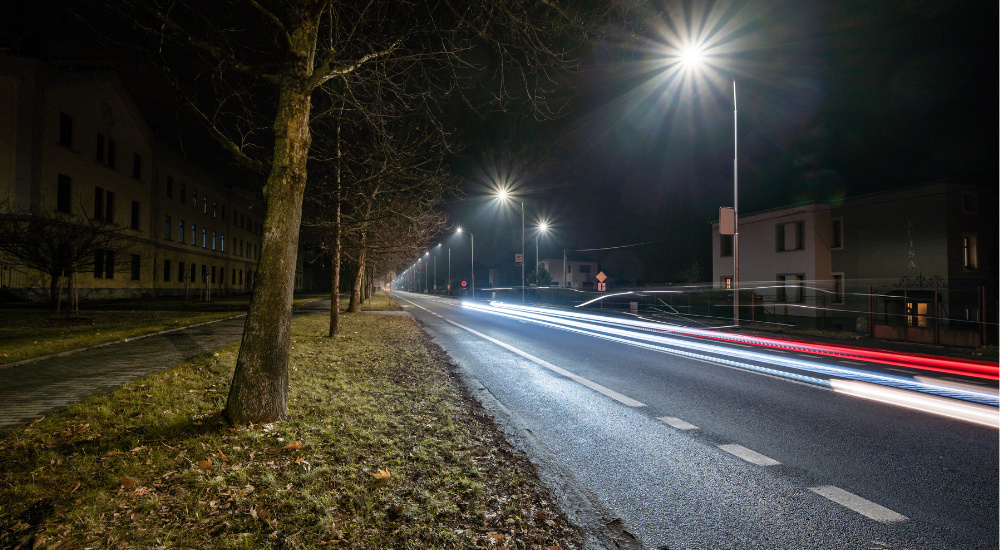

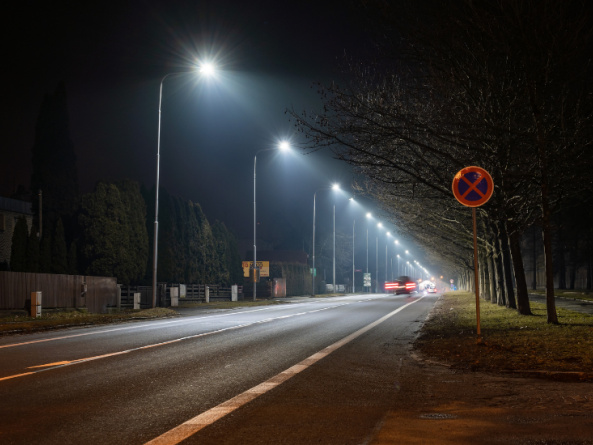

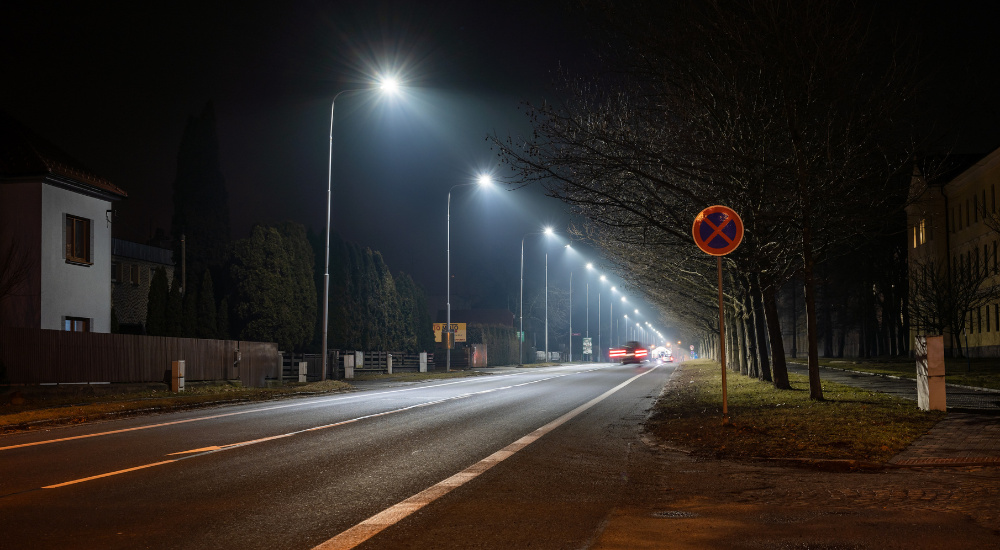

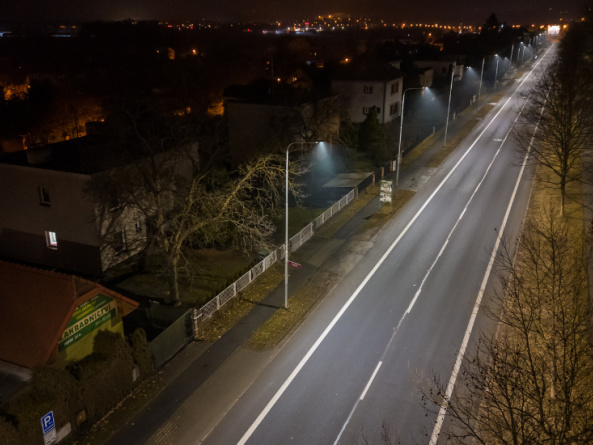

Applications Cycle paths, sidewalks, class I and II roads, pedestrian zones, outdoor areas



Variants

Variants

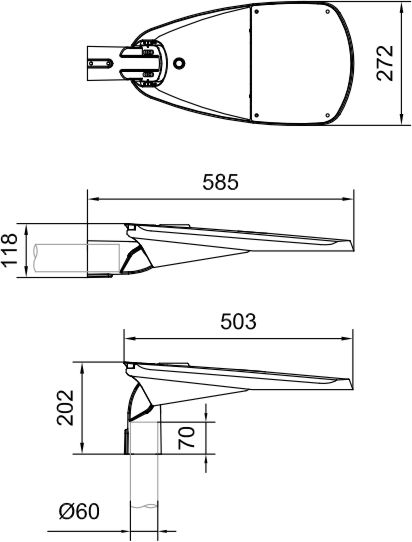

Dimensions

Dimensions

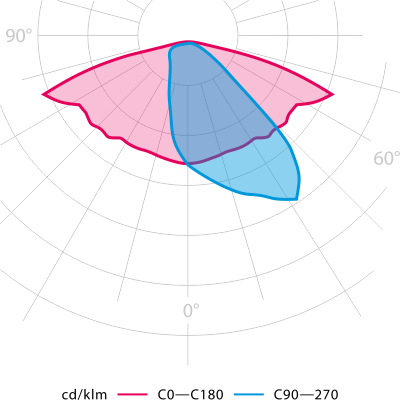

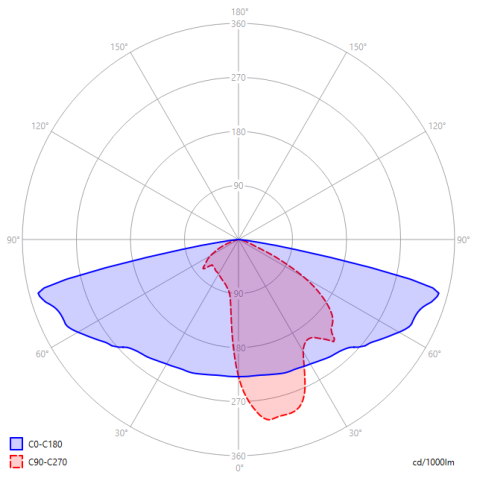

Photometry

Photometry

Energy label

Energy label
