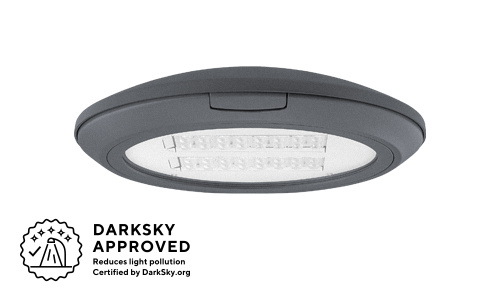

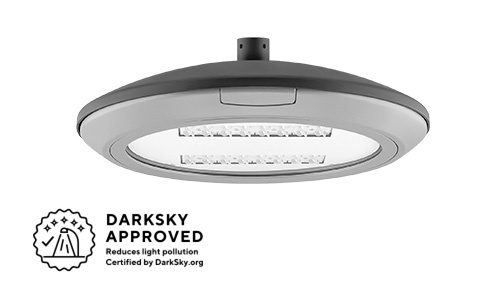

TEKO Air

The modern TEKO Air LED luminaire is designed for projects where lightweight construction, flexibility and technological readiness are essential. An ideal solution for current and future public lighting needs.

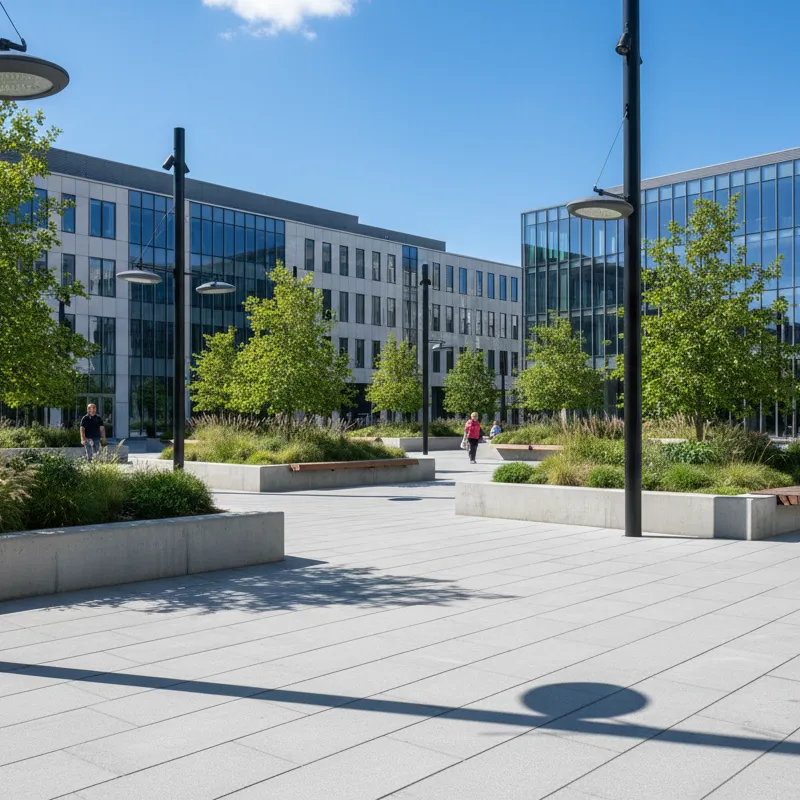

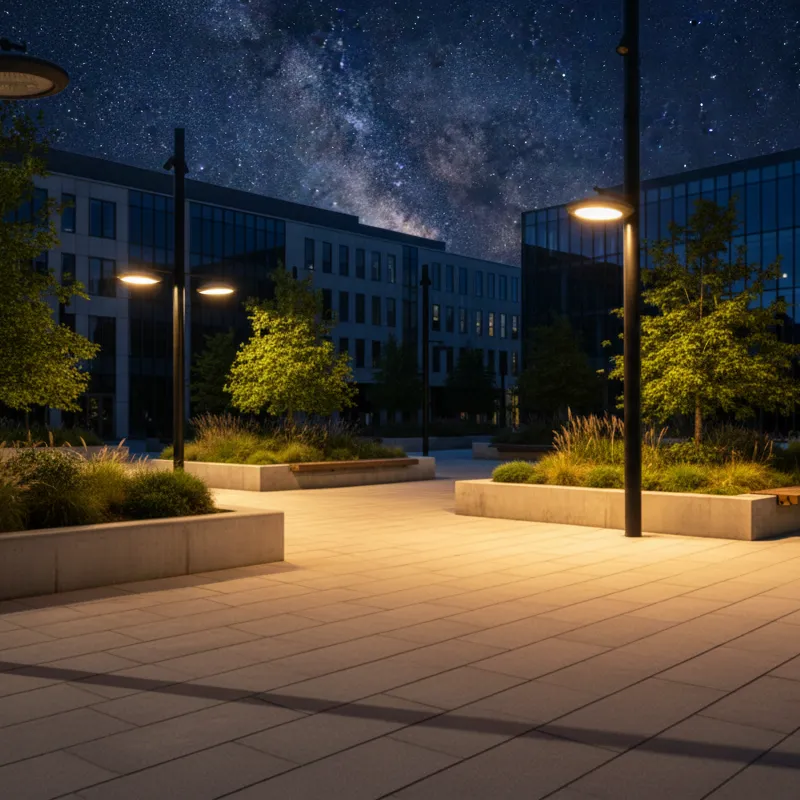

RAL 7015 day RAL 7015 night

TEKO Air

Certificates and Parameters

ENEC
ENEC+
REACH+
RoHS
EPD Certification
DarkSky Approved
Electromagnetic Compatibility (EMC) Electromagnetic Compatibility (EMC)
Corrosion Test – Salty Spray Corrosion Test – Salty Spray
Life Test Life Test
CB Mark CB Mark
Choice of optional colours for the luminaire bodies Choice of optional colours for the luminaire bodies
AstroDIM AstroDIM
BLUE FREE™ BLUE FREE™
Ingress Protection (IP66) Ingress Protection (IP66)
Impact Resistance (IK9) Impact Resistance (IK9)
Impact Resistance (IK10) Impact Resistance (IK10)
BIM Models BIM Models
Photobiological Risk Photobiological Risk

Colors

Lightness. Flexibility. Certified quality.

TEKO Air offers a wide range of colour temperatures, allowing the lighting to be precisely tailored to the character of the space. The luminaire meets the stringent requirements of ENEC certification, providing assurance of quality and safety. Designed for Smart City integration, it is ready for intelligent lighting control, operational optimisation and energy savings.

Specification

Electrical parameters

Light source LED
Supply voltage AC 220–240 V / 50–60 Hz
Connection Pre-wired cable, pre-wired cable with connector (G)
Control gear Electronic driver with surge protection (L/N–PE 10 kV)
Surge protection Additional surge protection 10 kV (S)
Fuse protection Fuse 6.3 A (J)
Control options No control (1), DALI (max. 3-core cable), night dimming (A)
Preparation for wireless communication, NEMA (N), Zhaga (Z)
Constant lumen output CLO (C)

Light parameters

Optical system Roads (Mxx), roads (Lxx), directional (Pxx)
Area (Uxx), combined optics (Kxx)
BACK light shields (BL1), FRONT light shields (FL1)
Light distribution Direct
Colour rendering index CRI > 70, CRI > 80
Colour temperature BLUE FREE™ (AMBER), Tunable White
2,200 K / 2,700 K / 3,000 K / 4,000 K / 5,000 K / 5,700 K
Lifetime > 120,000 h (L90)

Construction

Luminaire housing Cast aluminium

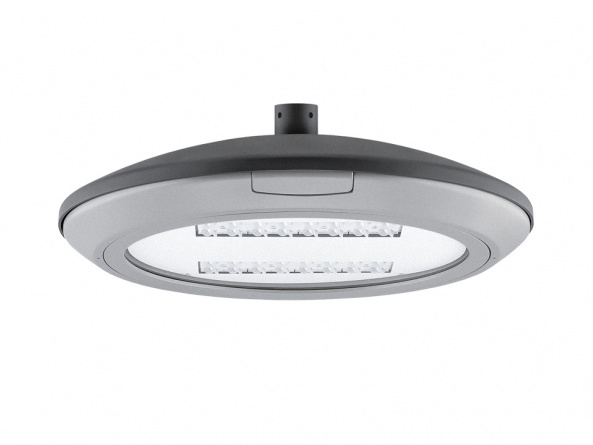

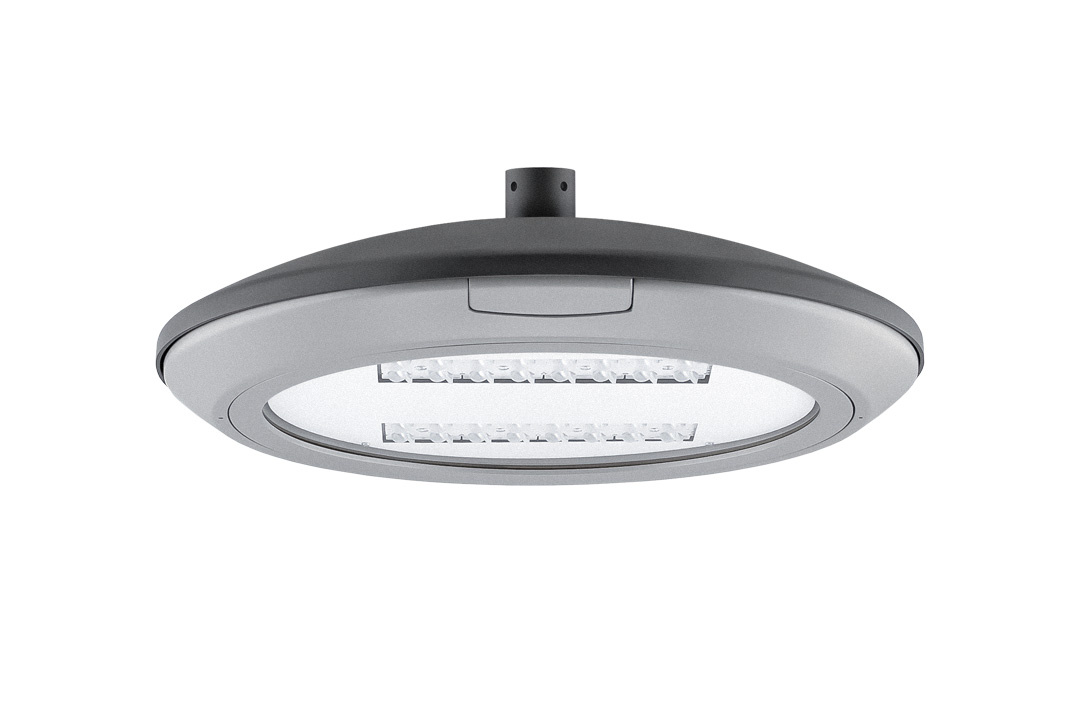

Colour RAL 7015, 7015/9006; other RAL (on request)
Surface finish Matt
Luminaire cover Toughened glass

Safety

Protection class I, II
Ambient temperature range −40/55 °C
Ingress protection IP66
Impact resistance IK09, IK10
Certifications ENEC, ENEC+, REACH + RoHS, EPD, Zhaga-D4i, DarkSky
EMC YES
Vibration resistance YES
Salt spray resistance YES
Static load resistance YES
Lifetime test YES
Photobiological safety RG0
CB test certificate YES

Mounting

Mounting method Decorative bracket (on request)
Recommended height Up to 6 m
Mounting height Sidewalks, s-class roads, urban parks, squares, parking areas



Variants

Variants

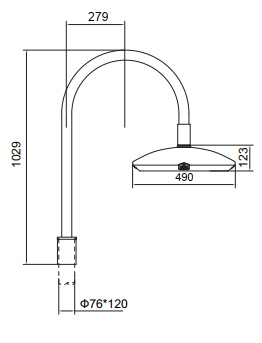

Dimensions

Dimensions

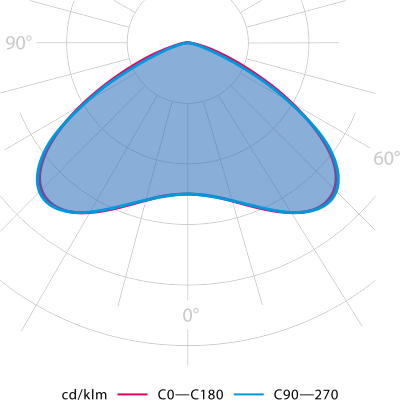

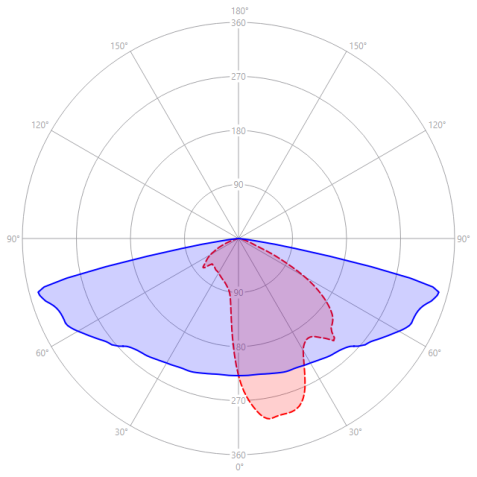

Photometry

Photometry

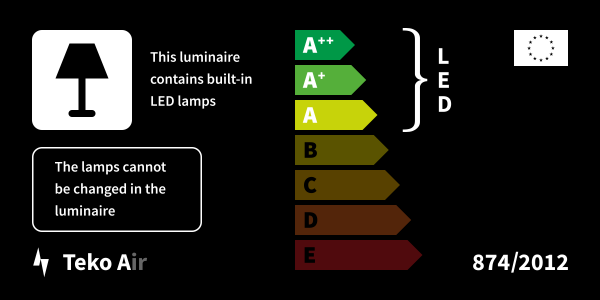

Energy label

Energy label

Downloads
