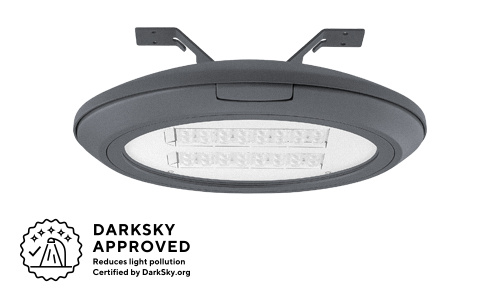

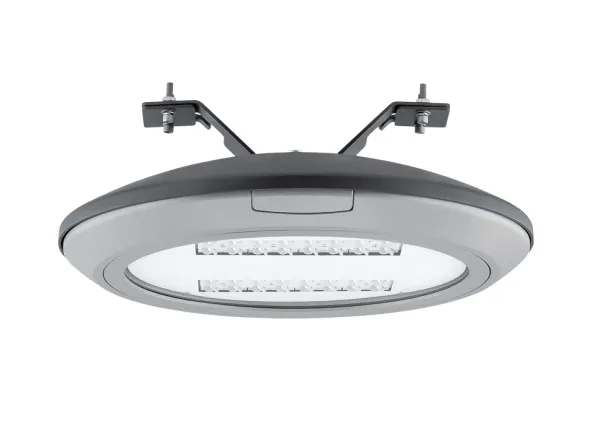

TEKO Rope

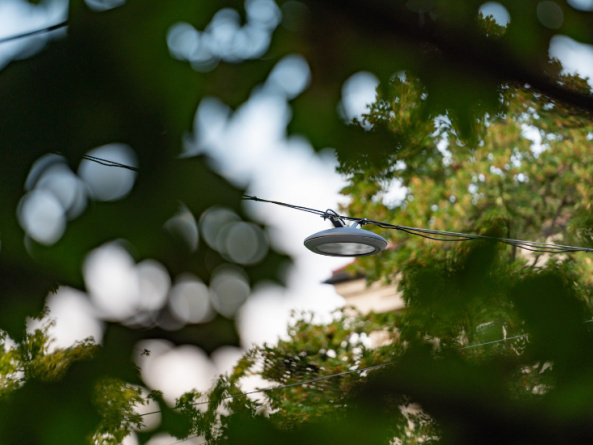

A modern park LED luminaire for public lighting, designed for hanging on a steel rope.

DALI regulation DALI regulation
Mechanical resistance (IK9) Mechanical resistance (IK9)
Degree of protection (IP66) Degree of protection (IP66)
Vibration Vibration
Optional colour according to the RAL colour chart Optional colour according to the RAL colour chart
IDA

Specifications

Electrical parameters

Light source LED
Power voltage AC 220–240 V / 50–60 Hz
Connection method connector Gesis (G) - standard
Ballast part electronic driver with surge protection L/N-Ground 10 kV
Surge protection additional surge protection 10 kV (S)
Fuse fuse 6,3 A (J)
Possibility of regulation non-dimmable (not labeled), DALI (max. 3 core cable), night dimming (A)
Constant lumen output CLO (C)

Light parameters

Optical system roads (Mxx), roads (Lxx), directional (Pxx)
area (Uxx), combined optics (Kxx), BACK Light shades (BL1)
FRONT Light shades (FL1)
Light distribution direct
Colour rendering index Ra > 70, Ra > 80
Colour temperature BLUE FREE (AMBER) / 2,200 K / 2,700 K / 3,000 K / 4,000 K / 5,000 K /
5 700 / TW
Service life > 120 000 hrs. (L90)

Construction

Luminaire body aluminum cast

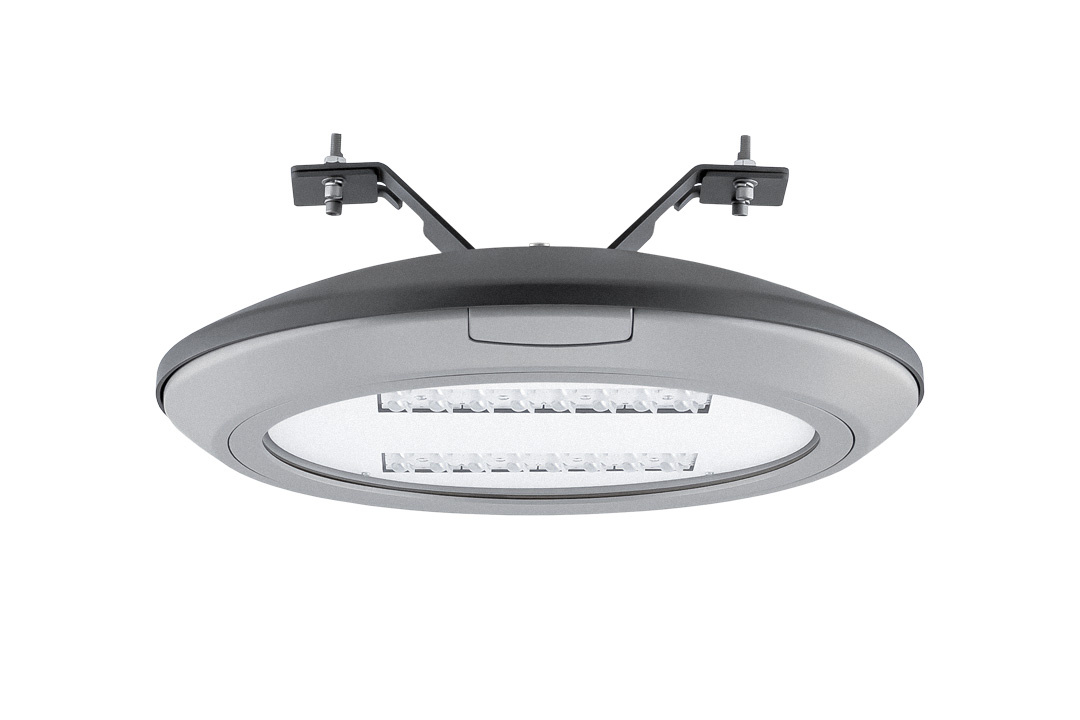

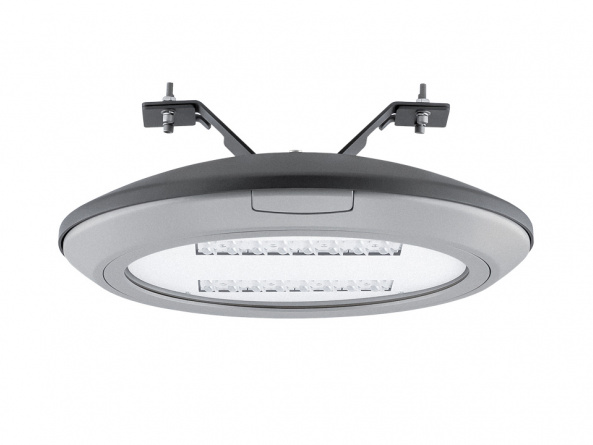

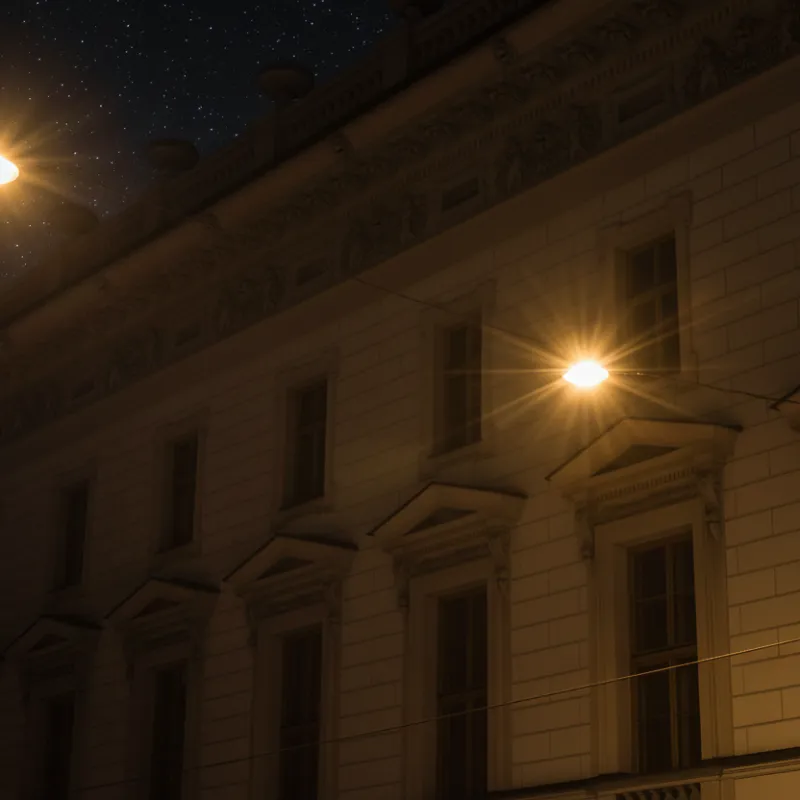

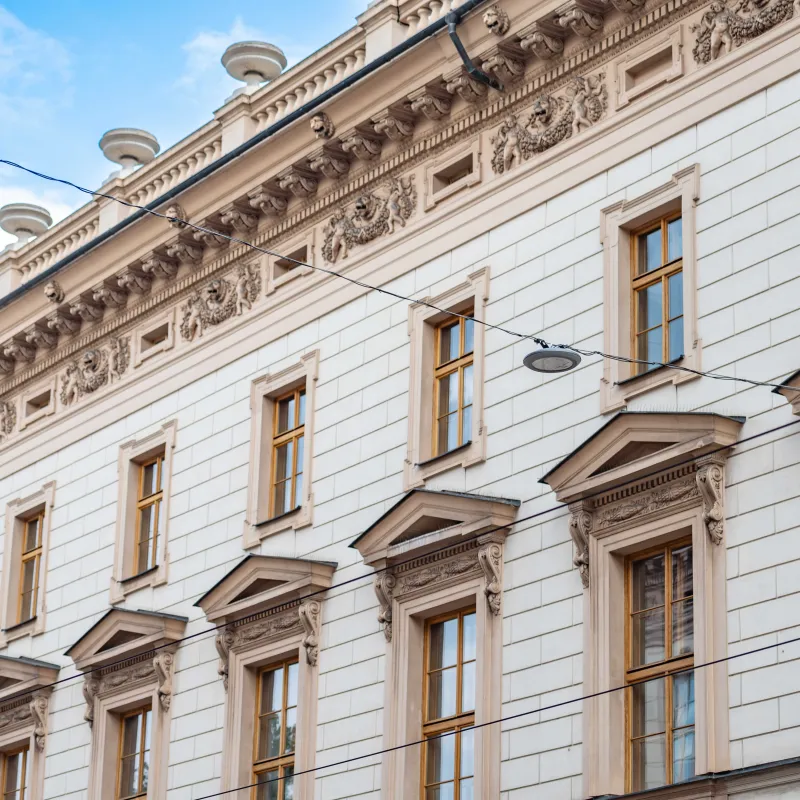

Colour RAL 7015/9006, other RAL (on request)
Surface type matte
Luminaire cover tempered glass

Safety

Protection class I, II
Maximum ambient temperature -40 / 55 °C
Ingress protection IP 66
Impact protection     IK 10
EMC YES
Vibration test NO
Static load test NO
Corrosion test – Salty spray YES (1 500 hours)
Lifetime test YES
Certification ENEC+, ENEC, Zhaga-D4i , IDA Dark Sky ApprovedMounting
CB mark YES
RoHS YES
REACH YES

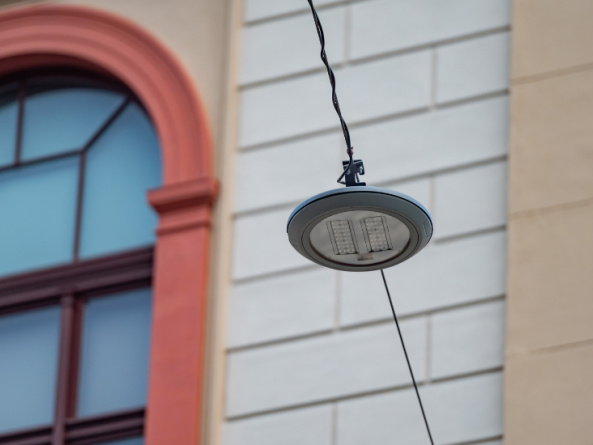

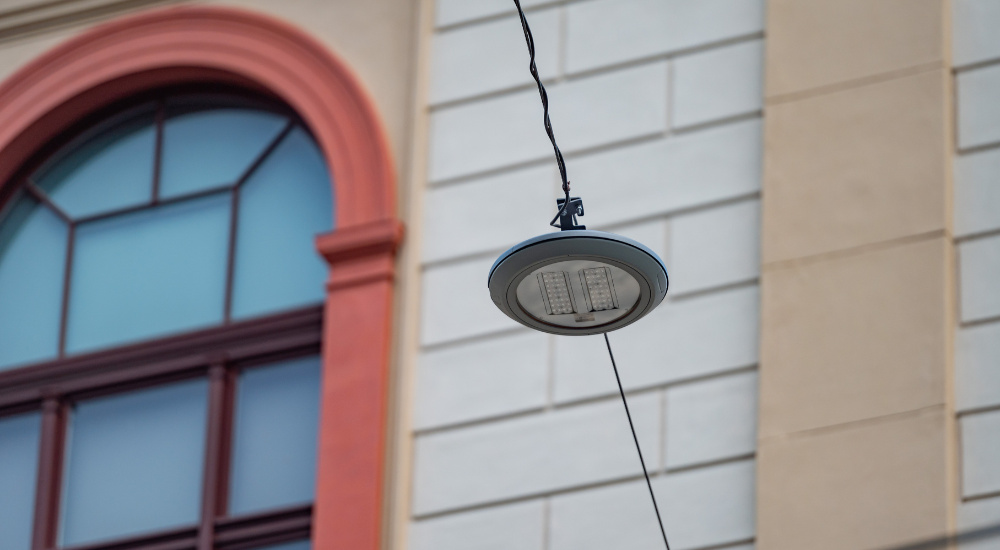

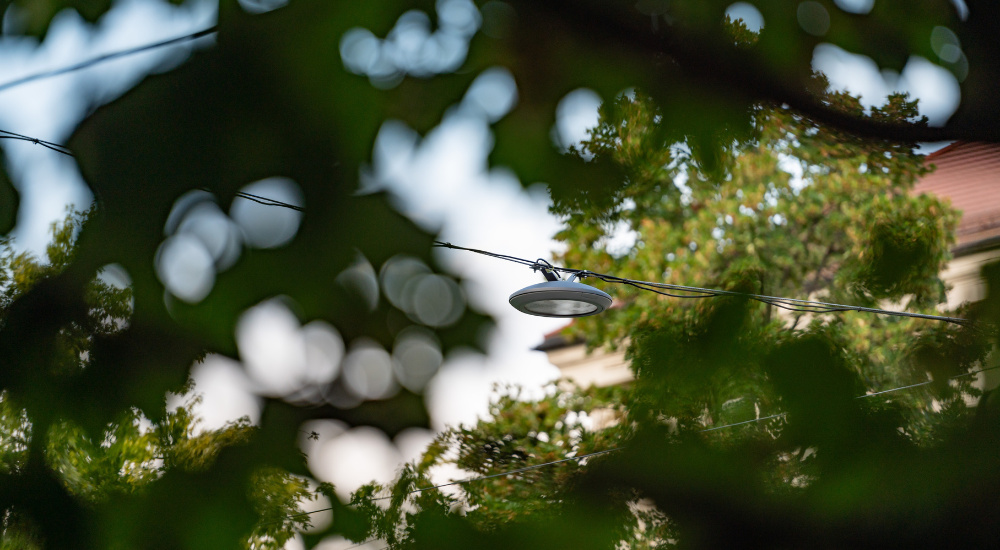

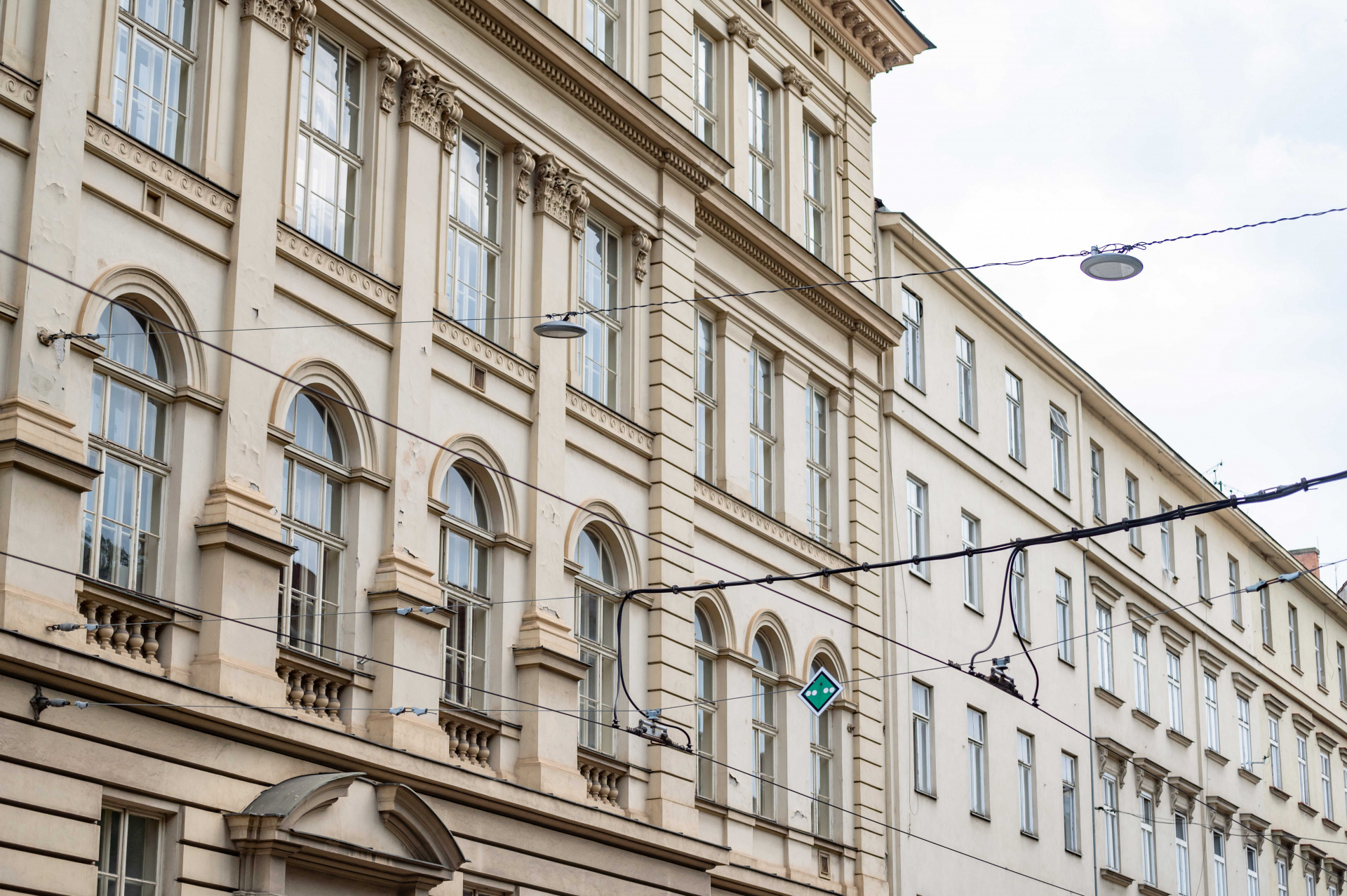

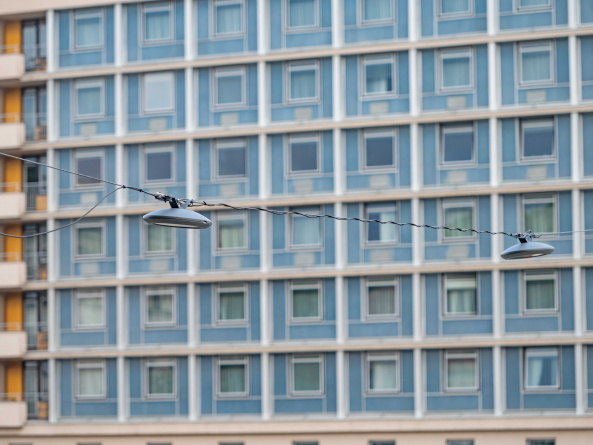

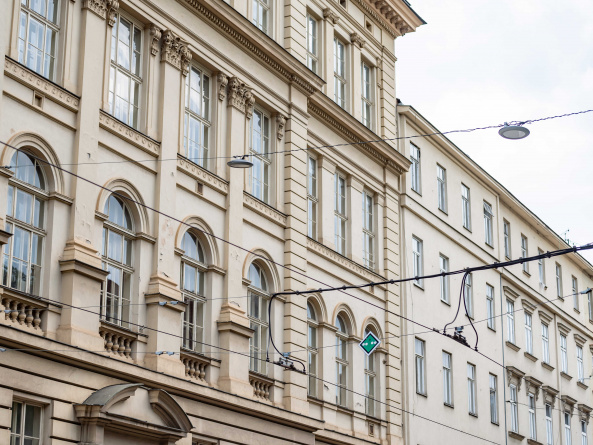

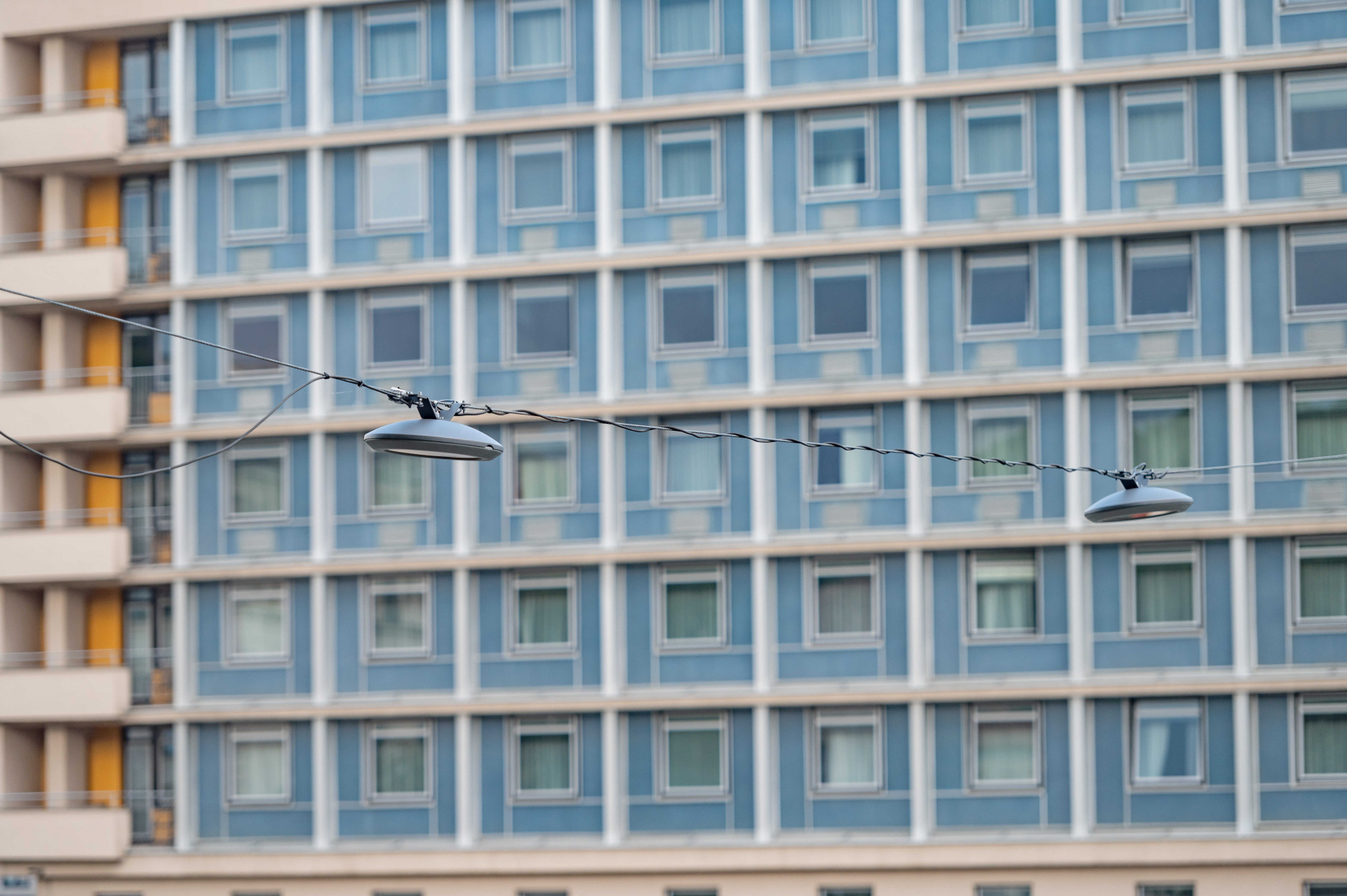

Mounting

Method rope mounting
Recommended height max. up to 10 m
Use outdoor areas, pedestrian zones, square, streets



Variants

Luminaire ambient temperature TQ 25 °C
Initial color consistency: ≤ 5 SDCM
IDA fixture seal of approval relates to ≤ 3 000 K
To meet IDA requirements, the luminaires must be installed horizontally with the road
Optical and electrical parameters tolerance ± 10 %

When using the CLO function, the initial power and luminous flux
is 10 % lower than the value shown in the table. LDT curves with
CLO function have the letter “C” at the end of their marking.

The term BLUE FREE (AMBER) in lighting technology refers to light with a minimum amount of the blue part of the light spectrum (< 2%).

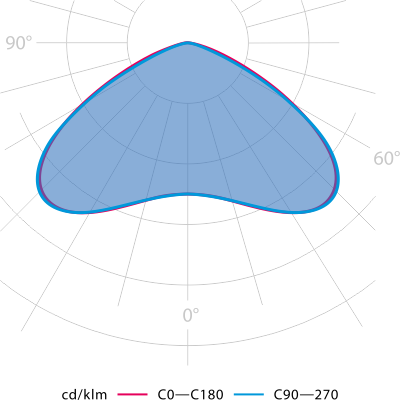

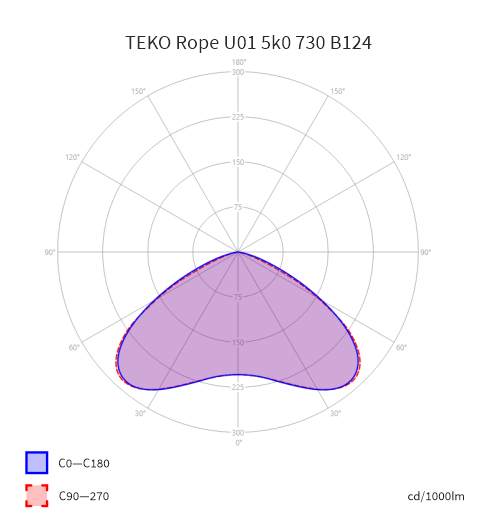

Photometrie

Photometrie

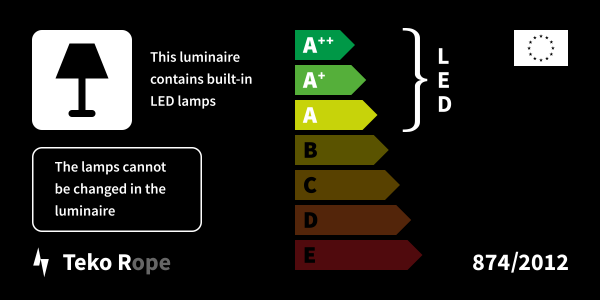

Energy label

Energy label
