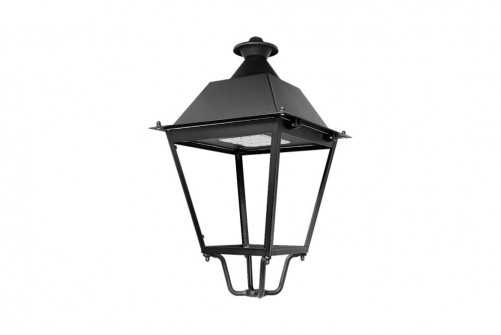

URBIS

The heritage-style URBIS LED park luminaire is designed for public spaces where history, atmosphere and architectural context must be treated with sensitivity. Its shape evokes a traditional lantern and blends naturally into historic surroundings

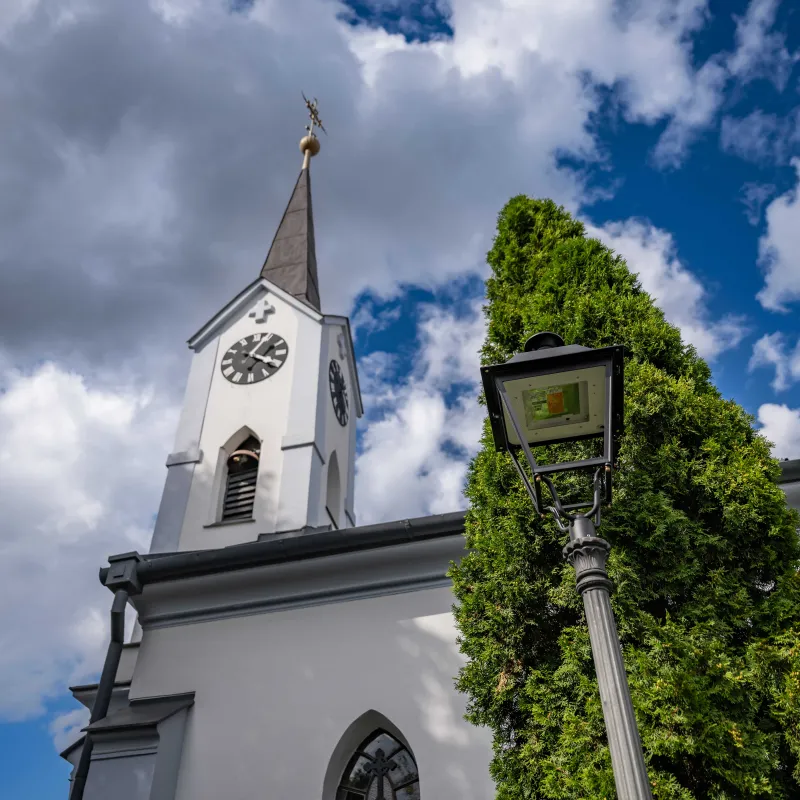

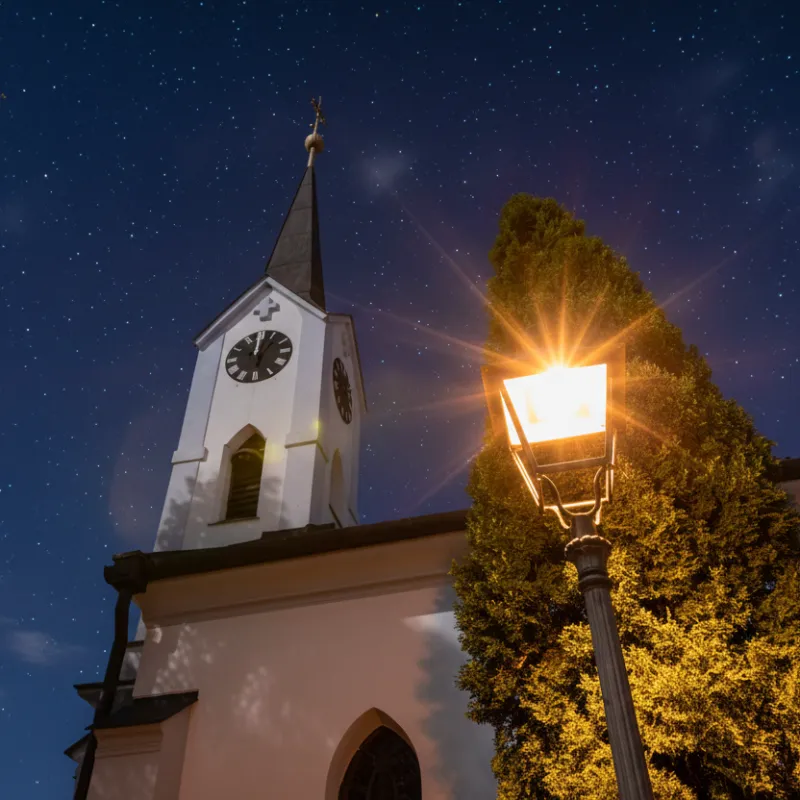

RAL 7015 day RAL 7015 night

URBIS

Certificates and Parameters

Choice of optional colours for the luminaire bodies Choice of optional colours for the luminaire bodies
AstroDIM AstroDIM
Ingress Protection (IP65) Ingress Protection (IP65)
Impact Resistance (IK8) Impact Resistance (IK8)

Colors

Tradition. Atmosphere. Responsible lighting.

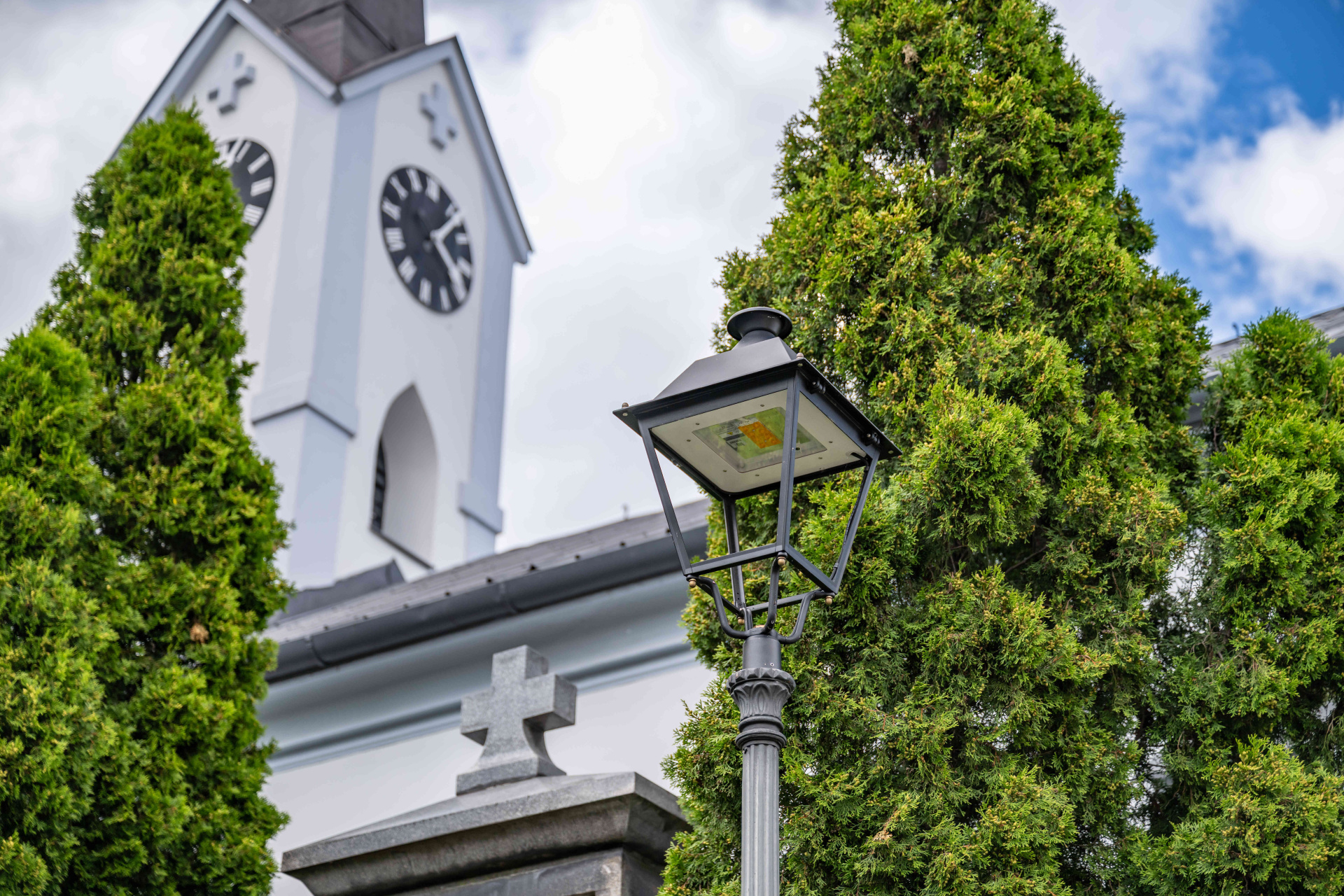

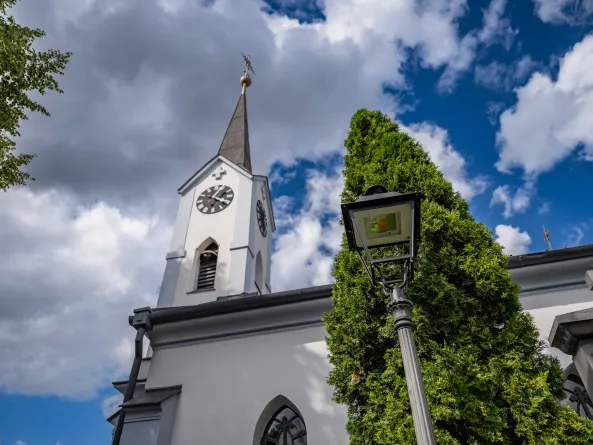

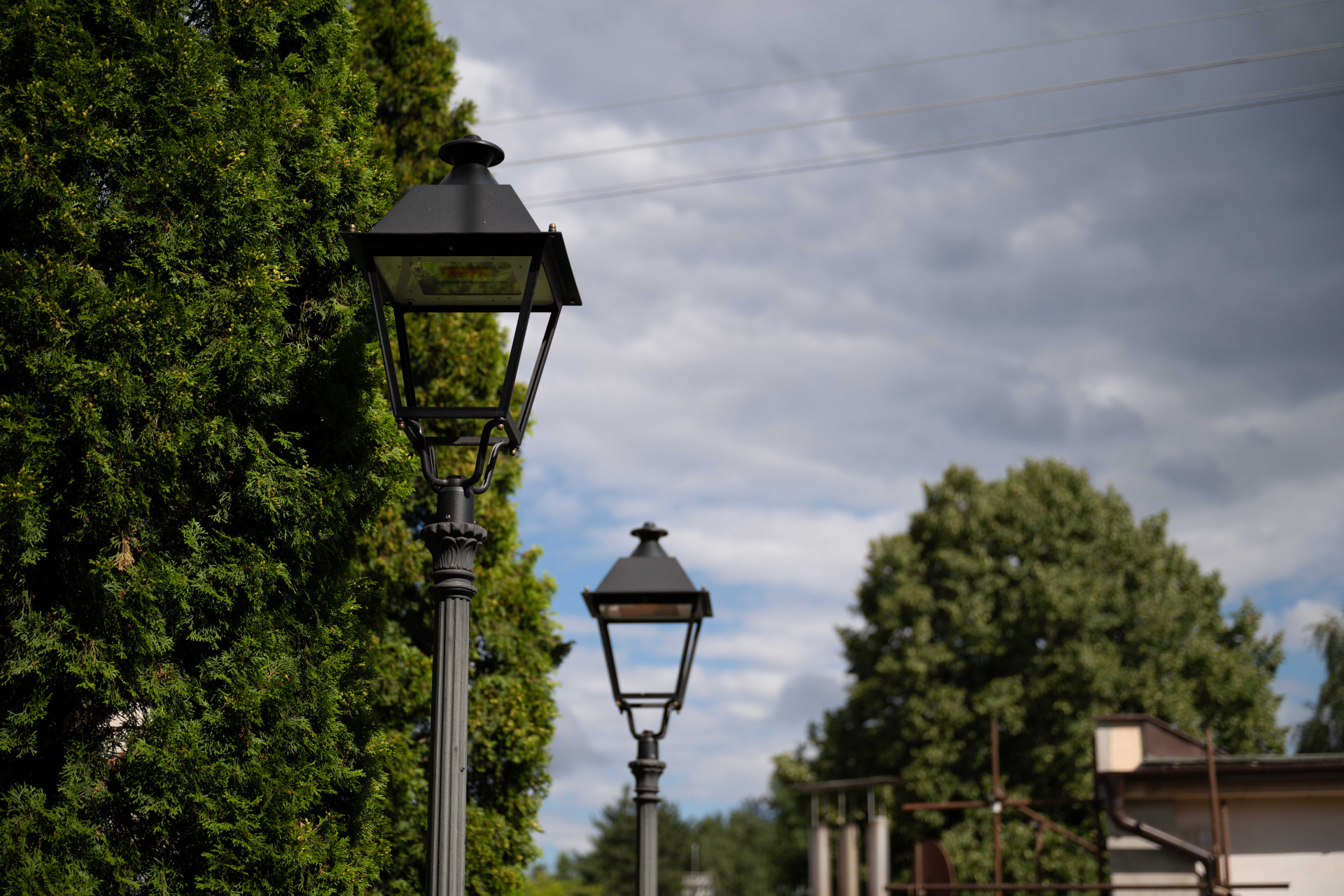

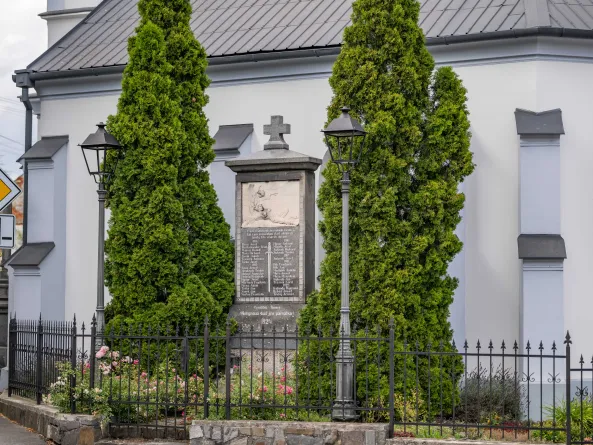

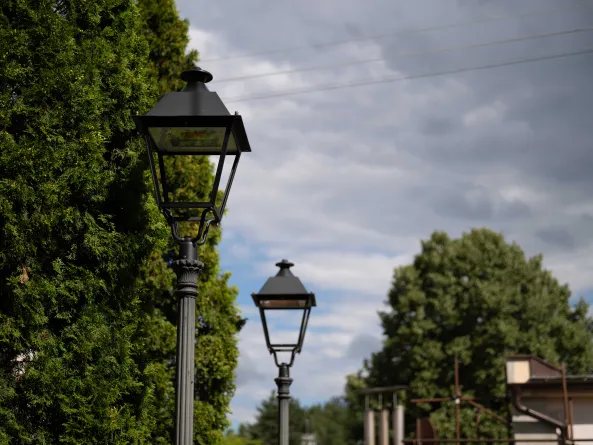

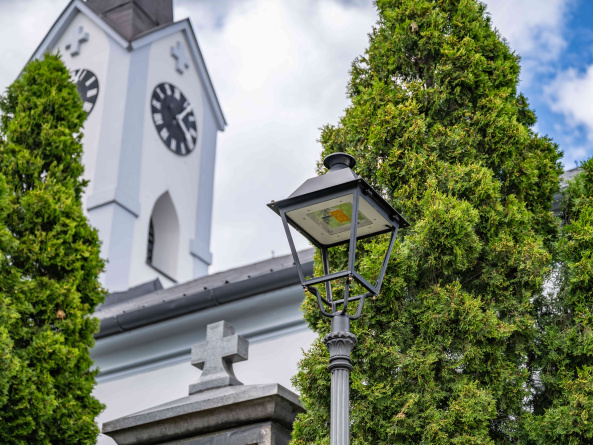

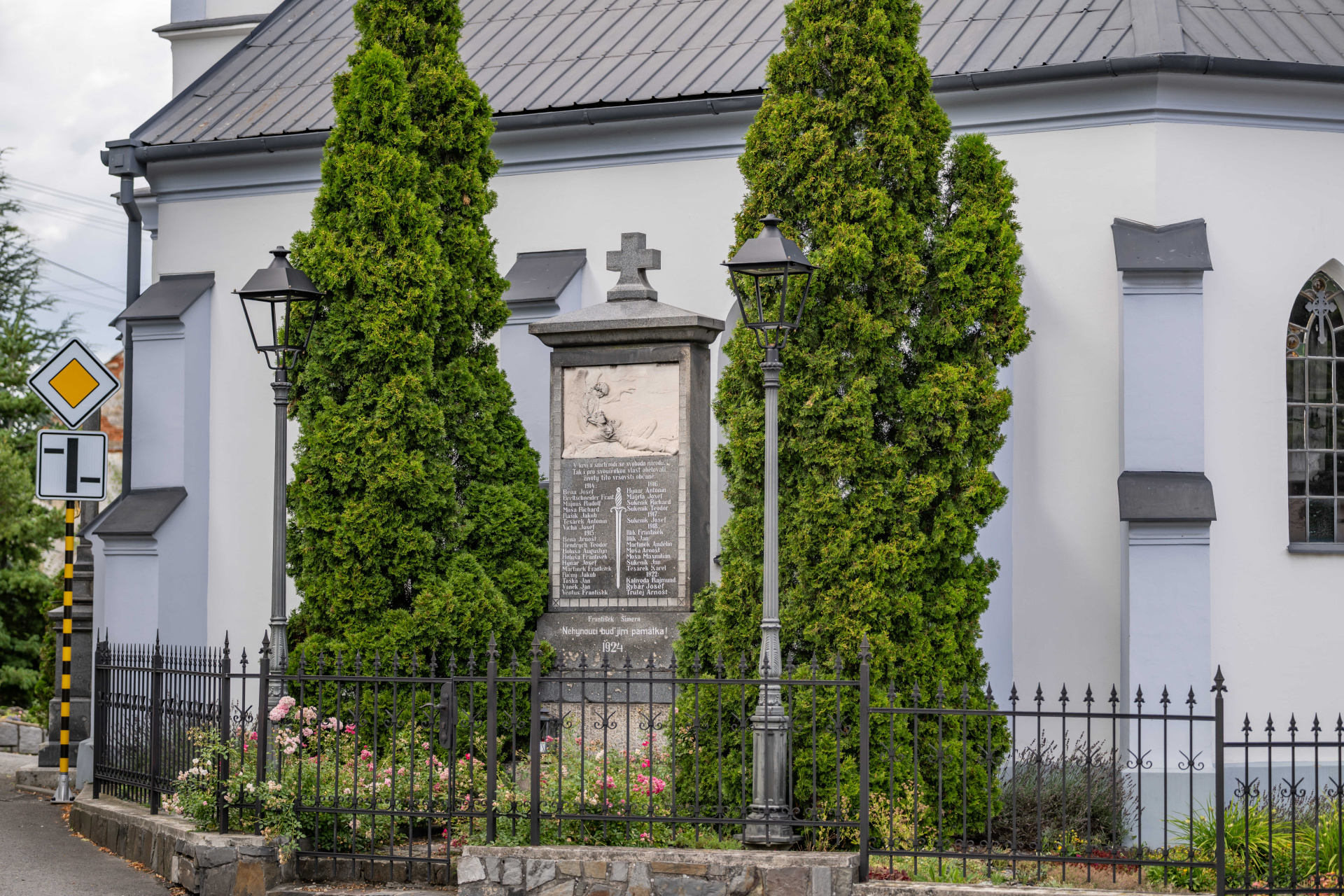

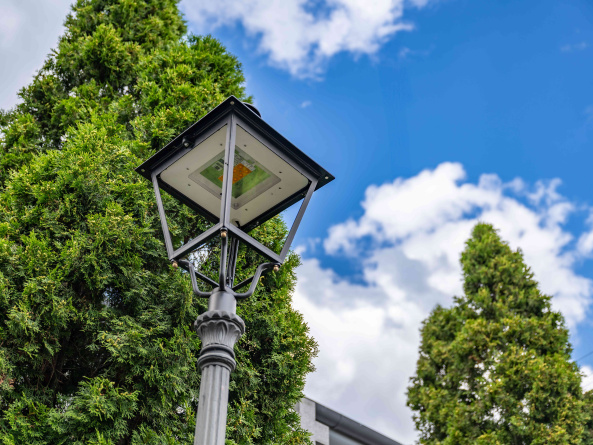

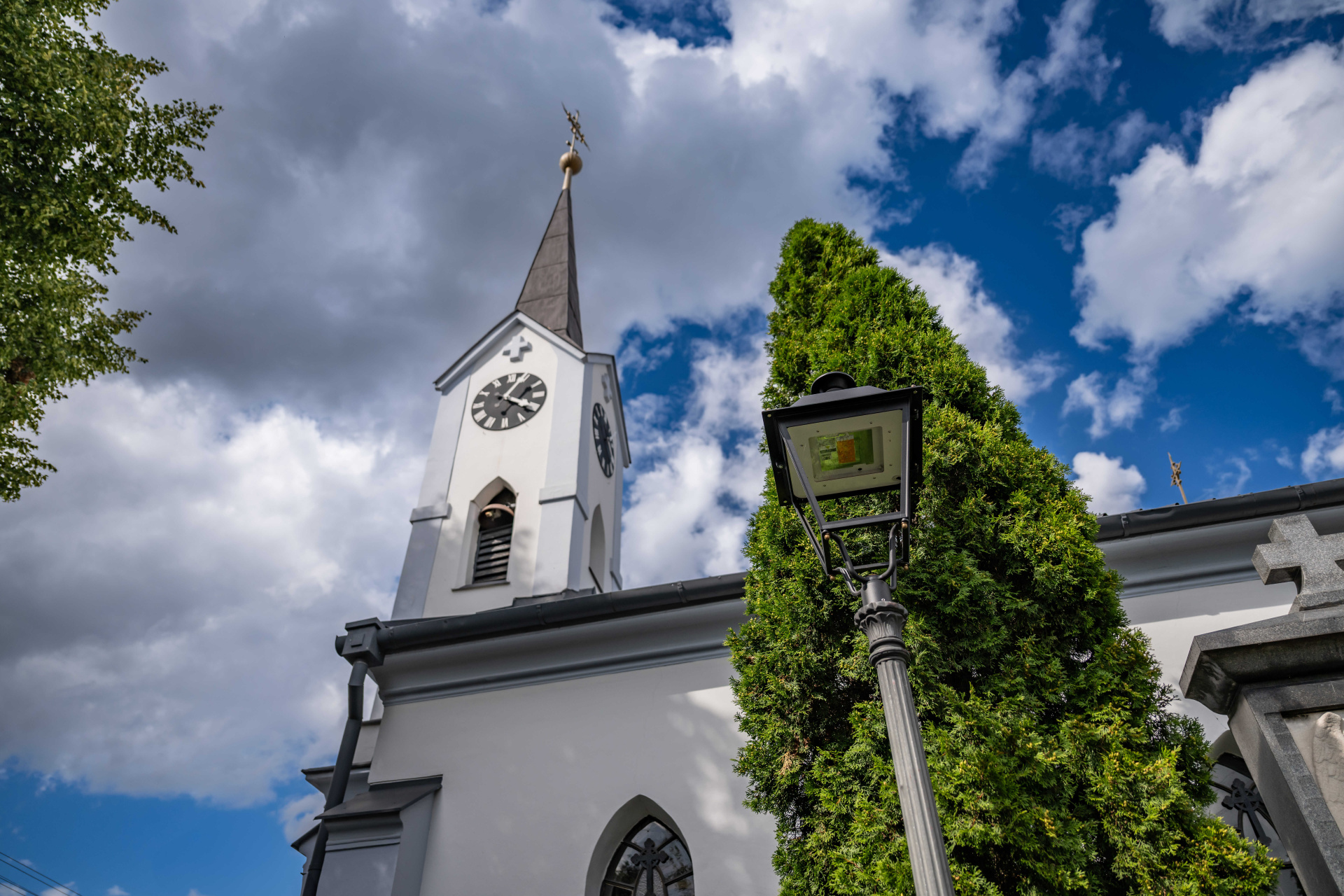

The URBIS luminaire is an ideal choice for parks, historic town centres, religious sites and protected heritage areas. The BLUE FREE™ version significantly reduces the blue light content, helping to protect the night-time environment, biodiversity and the tranquillity of the surroundings. It combines a traditional appearance with modern LED technology, providing high-quality, energy-efficient lighting with minimal glare while respecting the historical context. If you are looking for lighting that honours the past and considers the future, URBIS is the right choice.

Electrical parameters

Light source LED
Supply voltage AC 220–240 V / 50–60 Hz
Connection Pre-wired cable, pre-wired cable with connector (G)
Control gear Electronic driver with surge protection (L/N–PE 10 kV)
Surge protection Additional surge protection 10 kV (S)
Control options No control (1), DALI (4), night dimming (A)
Constant lumen output CLO (C)

Light parameters

Optical system Wide distribution (U1, U2)
Light distribution Direct
Colour rendering index CRI > 70
Colour temperature BLUE FREE™ (AMBER) / 2,200 K / 2,700 K / 3,000 K / 4,000 K
Lifetime > 100,000 h (L90B10)

Construction

Luminaire housing Cast aluminium
Colour RAL 9011, other RAL (on request)
Surface finish Matt
Luminaire cover Toughened glass

Safety

Protection class I, II
Ambient temperature range −40/+45 °C
Ingress protection IP65
Impact resistance IK08

Mounting

Mounting method Pole-mounted (48–60 mm), suspended
Mounting height Up to 5 m
Applications Sidewalks, class S roads, urban parks, squares, parking areas


Variants

Variants

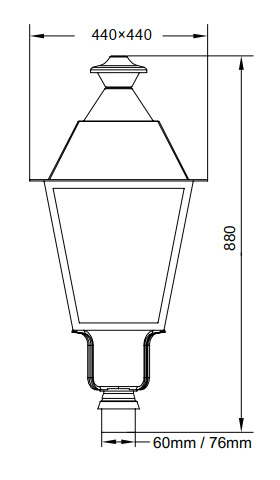

Dimensions

Dimensions

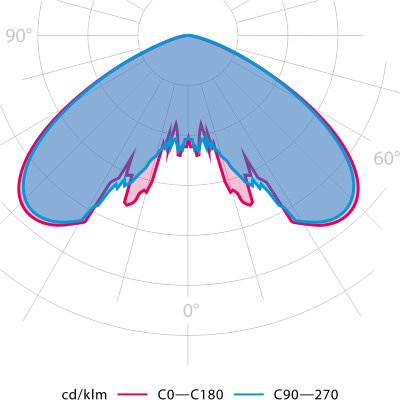

Photometry

Photometry

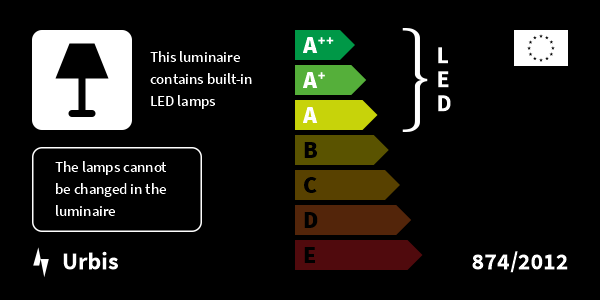

Energy label

Energy label
