Specifications
Electrical parameters
| Light source | LED |
| Power voltage | AC 220–240 V / 50–60 Hz |
| Connection method | leading out cable |
| Ballast part | electronic driver with surge protection L/N-Ground 10 kV |
| Surge protection | additional surge protection 3kV, 10 kA (S) |

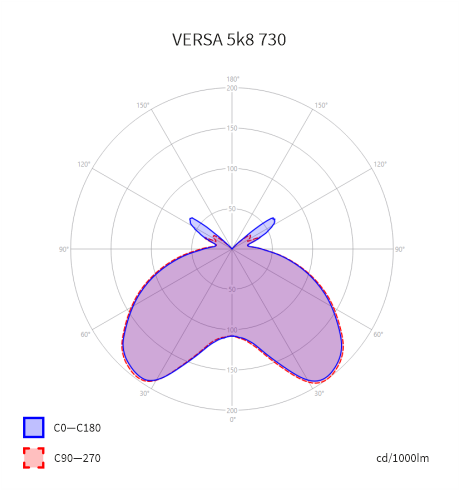

Light parameters
| Optical system | area (IU) |

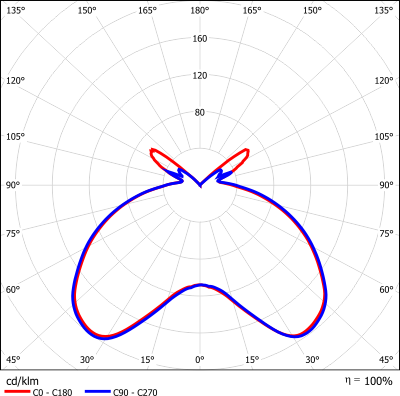

| Light distribution | indirect |
| Colour rendering index | Ra > 70 |
| Colour temperature | 2,200 K , 2 700 K |
| Service life | > 100,000 hrs. (L80B10) |
Construction
| Luminaire body | aluminum cast, PC |

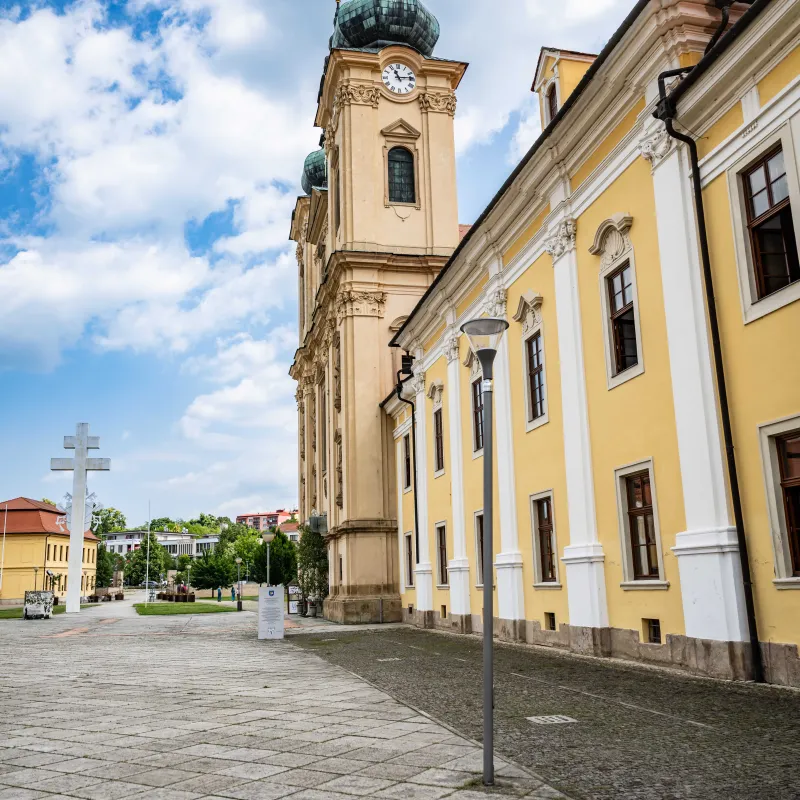

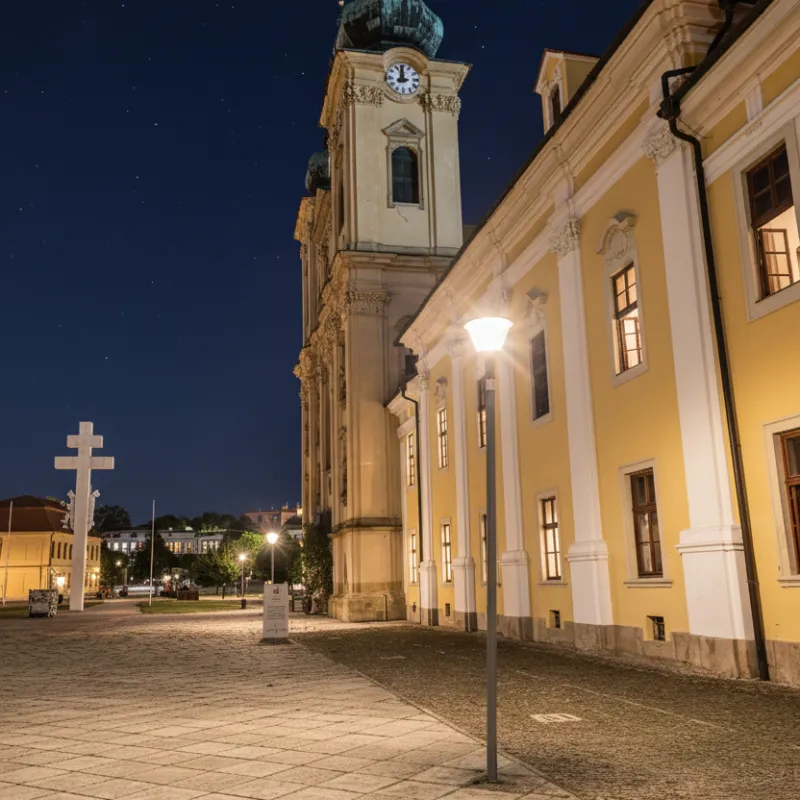

| Colour | RAL 9007 |
| Surface type | matte |
| Luminaire cover | PC |
Safety
| Protection class | I, II |
| Maximum ambient temperature | -40 / +55 °C |
| Ingress protection | IP 66 |
| Impact protection | IK 08 |
Mounting
| Method | pole mounted (48–60 mm) |
| Recommended height | max. up to 6 m |

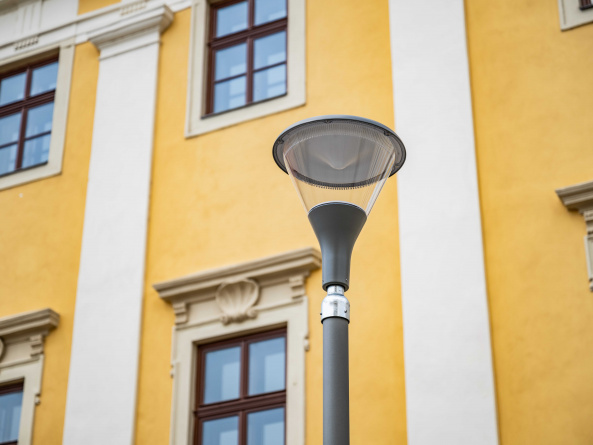

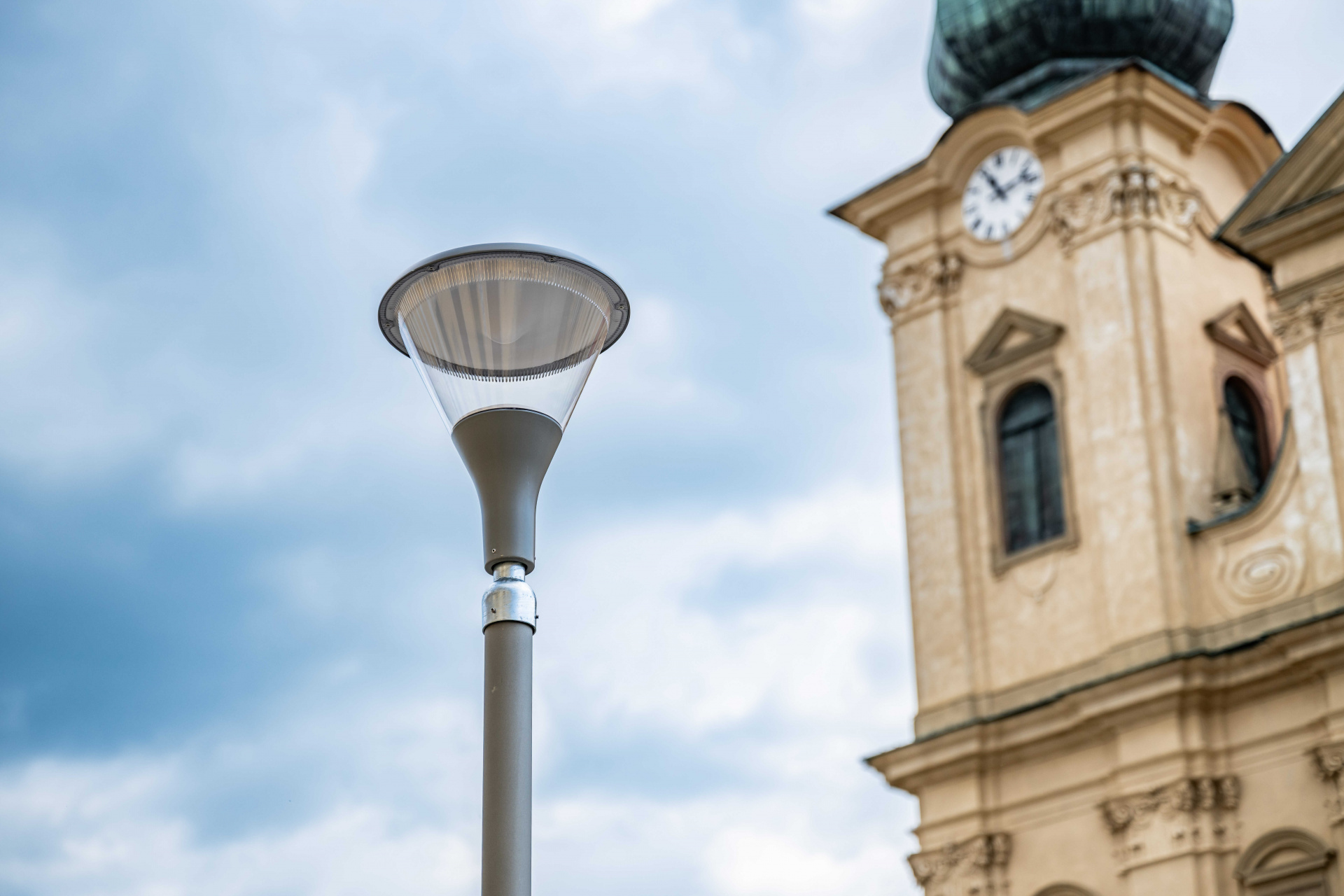

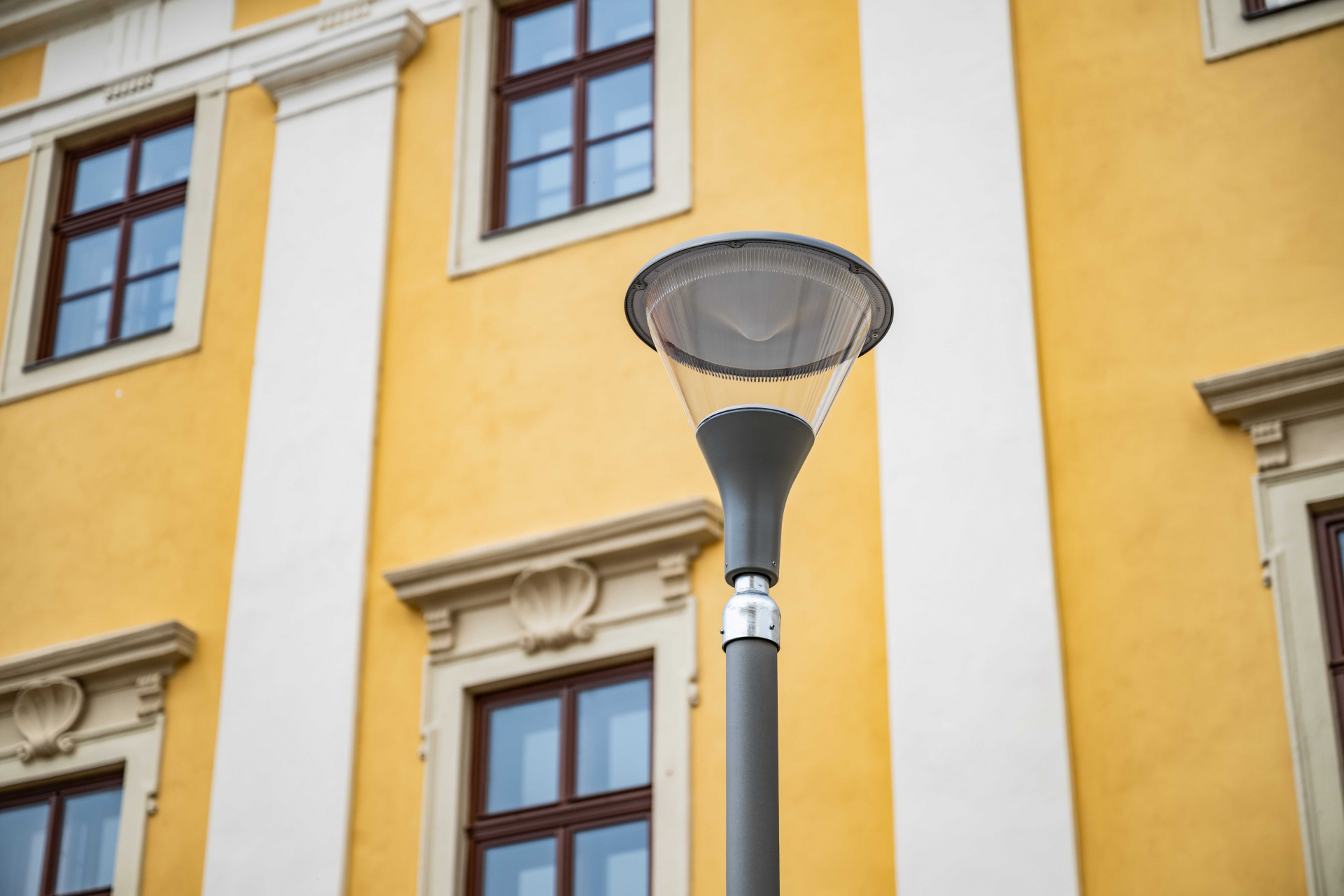

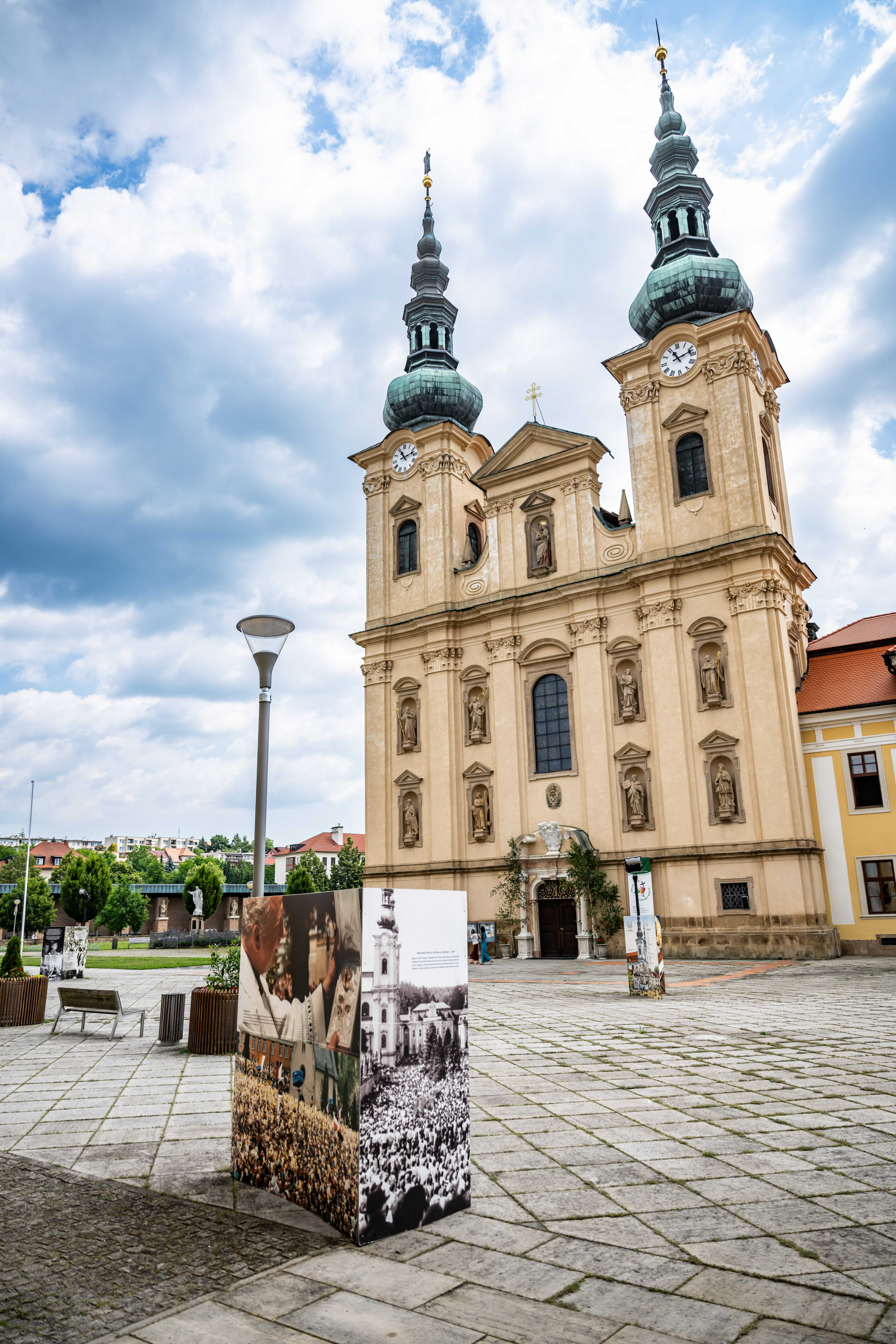

| Use | city parks, parking spaces, square, sidewalks, road classe S |
