Designer array LED luminary. Apart from its sleek design and high performance, it uses two lighting panels allowing for independentchromaticity settings.

DALI regulation DALI regulation
Mechanical resistance (IK8) Mechanical resistance (IK8)
Degree of protection (IP66) Degree of protection (IP66)
Corrosion test – Salty spray Corrosion test – Salty spray


Electrical parameters

Light source LED
Power voltage AC 230 V / 50 Hz
Connection method leading out cable, leading out cable with connector (G)
Ballast part electronic driver with surge protection L/N-Ground 10 kV
Surge protection EP + ballast with overvoltage protection 10 kV (S)
Possibility of regulation non-dimmable (not labeled), DALI (DALI), night dimming (A)
preparation for wireless communication NEMA (N), Zhaga (Z)
Constant luminous flux CLO (C)

Light parameters

Optical system roads (Mxx), roads (Lxx), directional (Pxx), area (Uxx)
pedastrian crossing (ZLx/ZPx), combined optics (Kxx)
AMBER – module (Nxx), AMBER – optics (ALxx)
Light distribution direct, single-sided radiation (1), double-sided radiation (2)
Colour rendering index Ra > 70, Ra > 80
Colour temperature AMBER / 2,200 K / 2,700 K / 3,000 K / 4,000 K / 5,000 K
Service life > 100,000 hrs. (L90B10)


Luminaire body aluminum cast
Colour RAL 7015
Surface type matte
Luminaire cover tempered glass


Protection class I, II
Maximum ambient temperature -35 / +45 °C
Ingress protection IP 66
Impact protection IK 08
Certification ENEC


Method pole mounted (48–67 mm)
Recommended height max. up to 6 m
Use city parks, cycle paths, lighting of outdoor railway areas, road classes II. and III., square, sidewalks



* Weight may vary depending on the luminaire variant
Luminaire ambient temperature TQ 25 °C
Initial color consistency: ≤ 5 SDCM
Optical and electrical parameters tolerance ± 10 %

When using the CLO function, the initial power and luminous fluxis 10 % lower than the value shown in the table.

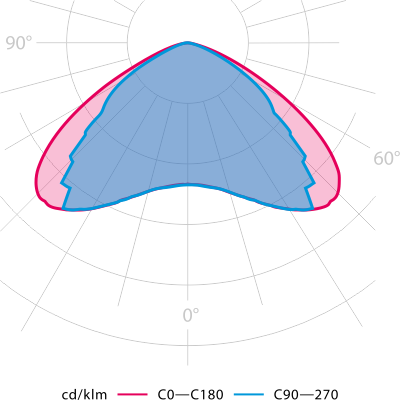

LDT curves with CLO function have the letter “C” at the end of their marking.



Energy label

Energy labelEnergy label
